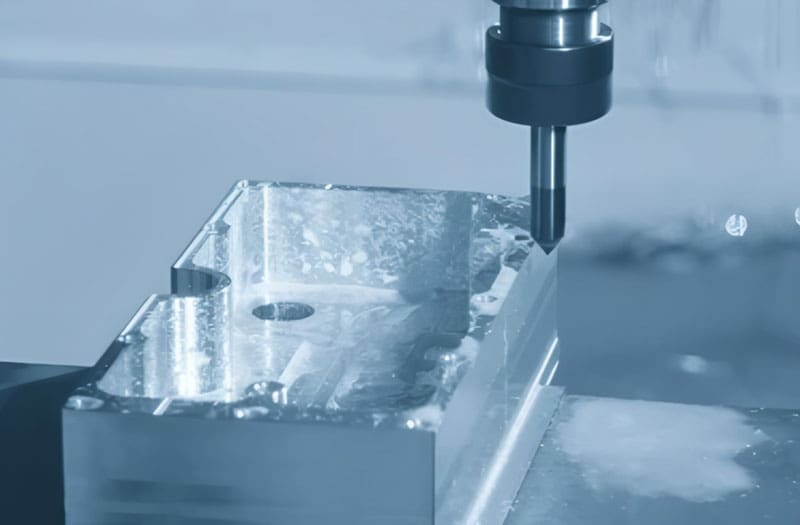

Creating a clean and accurate chamfer on a 3-axis CNC machine can be a challenging or even impossible task without the right software tools. This process is simplified in VCarve Pro and Aspire by offering a dedicated chamfer toolpath that provides flexibility and provision through its easy-use range of applications.
The main advantage of using VCarve Pro or Aspire is the ability to create chamfers through multiple tool types, including V-bits and ball-nose cutters. This allows the user to produce joints, decorative edges, and countersunk holes without the requirement of specialized hardware or multi-axis CNC machinery.
In the following article we focus on VCarve Pro. Note that the process is the same if you are using Aspire.
Creating chamfers with a V-bit
When using a V-cutter, VCarve Pro enables easy toolpath generation through user set widths and depth parameters. This is especially useful when working with common angles, such as 45°, while still allowing control over the final appearance of the edge.
The ability to chamfer both on the inside and outside of a vector in VCarve Pro enhances the flexibility and customization for a designer or machine operator.
Creating chamfers with a ball nose
Additionally, VCarve Pro allows for chamfer creation with a ball nose cutter. Ball nose cutters won’t create a chamfer as cleanly as a V-cutter, although it increases the flexibility a designer has as they are not fixed to machining the angles of their V-cutting tools.

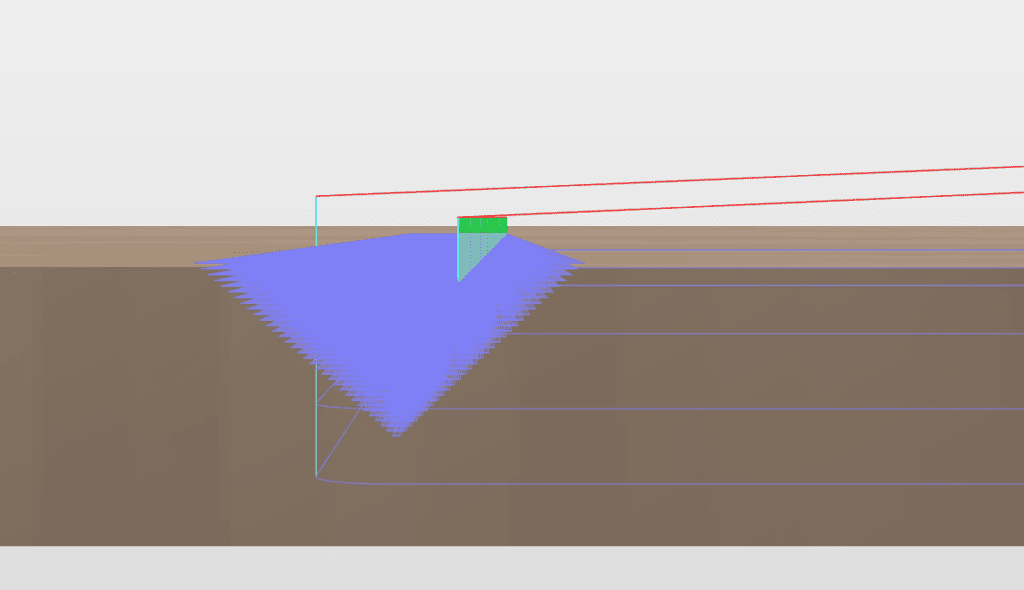

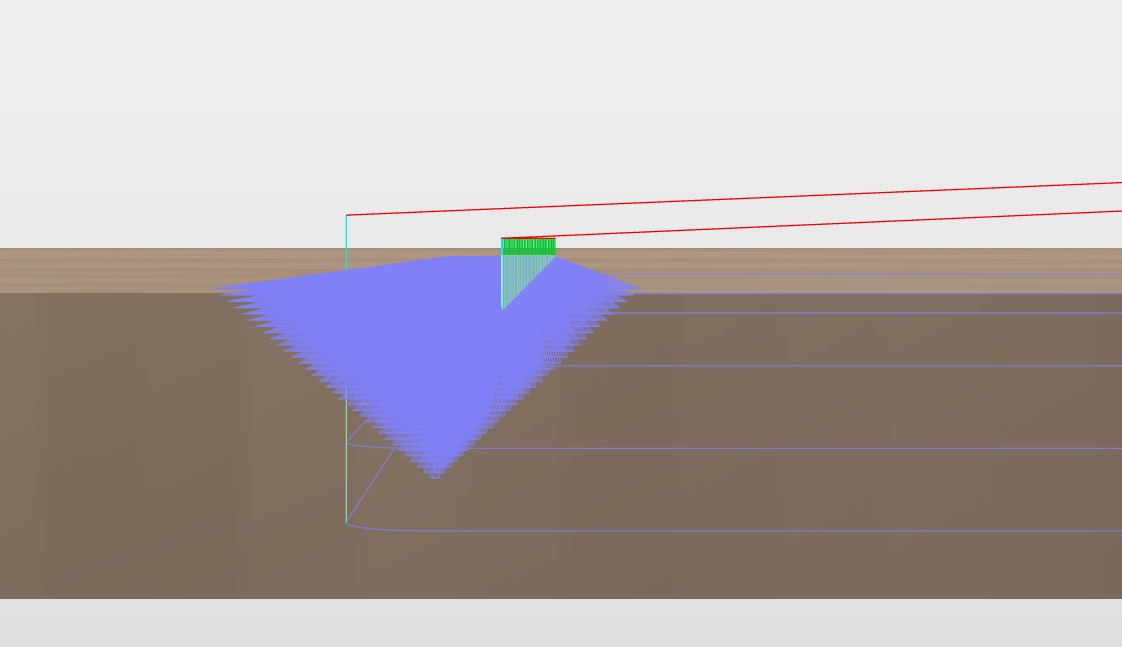

VCarve Pro uses multiple passes at increasing depths to create angles, increasing the ability to machine a wide range of chamfer angles, and making an excellent solution where fixed angled tools are unavailable.
An example of chamfer parameters configured in VCarve is shown below.
VCarve’s chamfer toolpath allows for:
- Start depth: set a precise starting depth for the toolpath
- Angle / Width / Cut depth: customizable parameters to match your tools and toolpaths
- Chamfer type: choose whether to machine an upward or downward slope on either side of the selected vector

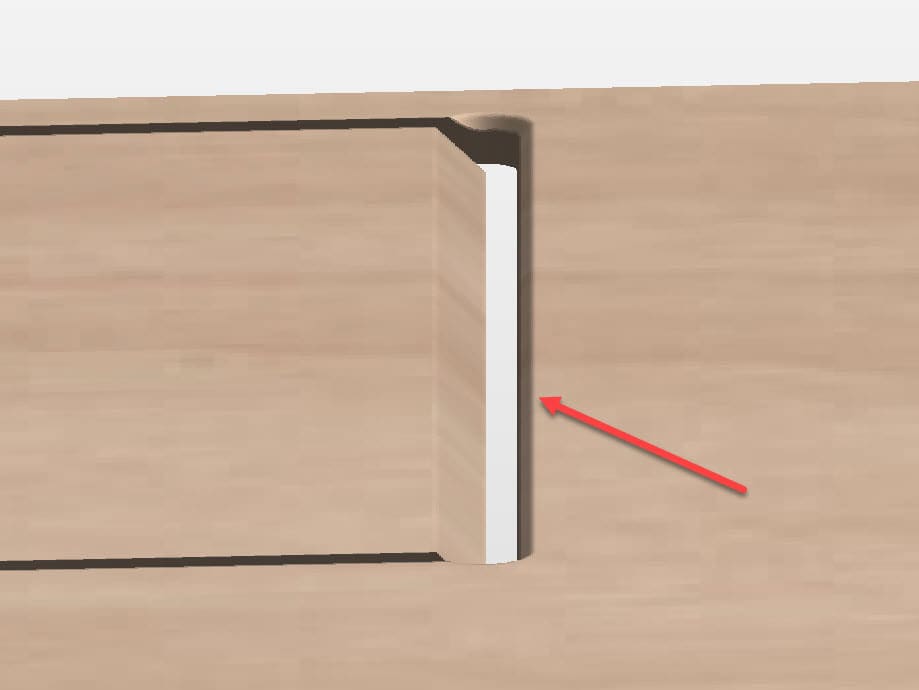

Here is an image of the resulting toolpath in VCarve.
Get more from your nesting CNC
Overall, using VCarve Pro allows for an efficient and versatile solution for producing highly flexible and quality chamfers on a 3-axis CNC machine. By automating the complex calculations of chamfer toolpaths and providing multiple options, users can achieve consistent, professional results with greater control and confidence.
If you are interested in learning more about chamfered toolpaths in VCarve Pro or Aspire, contact us today. We offer dedicated support and training for both VCarve Pro and Aspire, and can assist you with learning how these software packages can improve your CNC capabilities.
