Outcoming files for CNC|Forum|WOOD DESIGNER
Moderator
March 25, 2024
Offline
Hello,
The first ones I sent you are directly from the Hafele page.
The others are made in PolyBoard. These cannot be lighter in size.
See more information for making 3D elements:
https://wooddesigner.org/help-…..cessories/
See the others attached.
Regards,
Isaac
Full
November 14, 2024
Offline
Thanks,
Through which programm are you making it?
Could you please also prepare for
H 60
H 80
H 150 ?
H35?
How about other furniture from Hafele page?
Is it possible to make them lighter also?
Thanks.
BR,
Girts.
Moderator
March 25, 2024
Offline
Hello,
No worries, here is a reduced version.
Note, this is not as detailed, although dimensions should be correct.
Regards,
Isaac
Full
November 14, 2024
Offline
Hi, these files are too heavy – please make them lighter.
Moderator
March 25, 2024
Offline
Hello,
See the attached dxf files. These are ready to import into PolyBoard.
According to Hafele, these are for Axilo H120-H150.
Regards,
Isaac
Full
November 14, 2024
Offline
Hello,
Please see attached files
Moderator
March 25, 2024
Offline
Hello Girts,
Can you please send me the technical sheets for the two Axilio’s that you are referring to.
Then, I can prepare some models for you.
Regards,
Isaac
Full
November 14, 2024
Offline
Hello,
Can you please prepare me 3d model, which i can upload to polyboard?
Axilo H120 leg and H150 ?
Thank you.
Moderator
March 25, 2024
Offline
Hello Girts,
Can you also send me your latest parameter file please?
Regards,
Isaac
Full
November 14, 2024
Offline
HUSTON WE HAVE A PROBLEM.

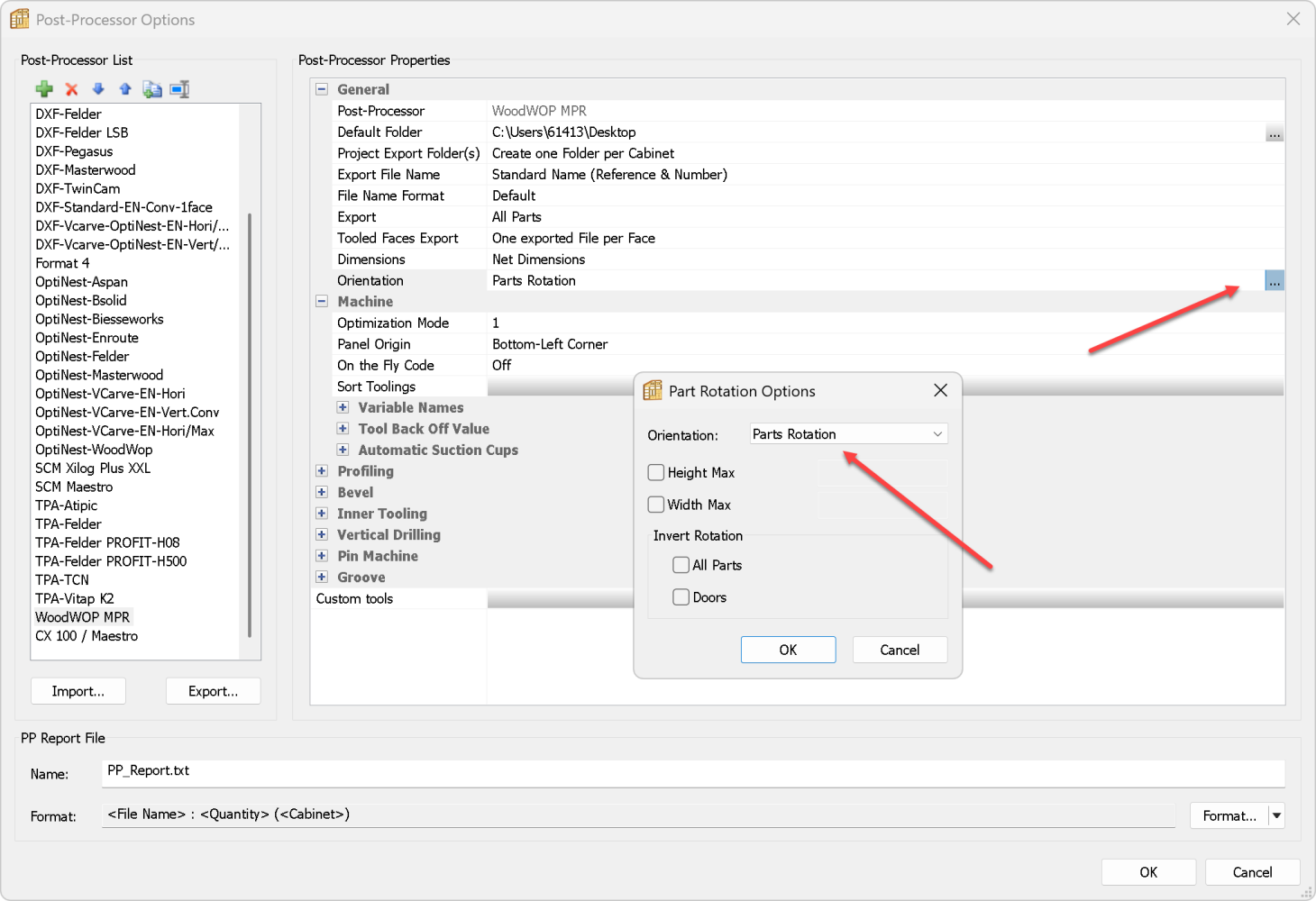

There is problem with outcoming excel file – when I am in model and I`m making Post Processor export – edgebands are exporting correclty, but when i`m making export for project – the colums in excel are switched – edgeband width is mentioned as height and otherwise.
Please see the plyboard file.
