bNest groove cutting direction
Avatar
Isaac

Moderator
Forum Posts: 1709
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
September 24, 2026 - 1:32 pm
sp_Permalink sp_Print

Hello,

The options that you selected are for the orientation of the saw blade itself, rather then the component.

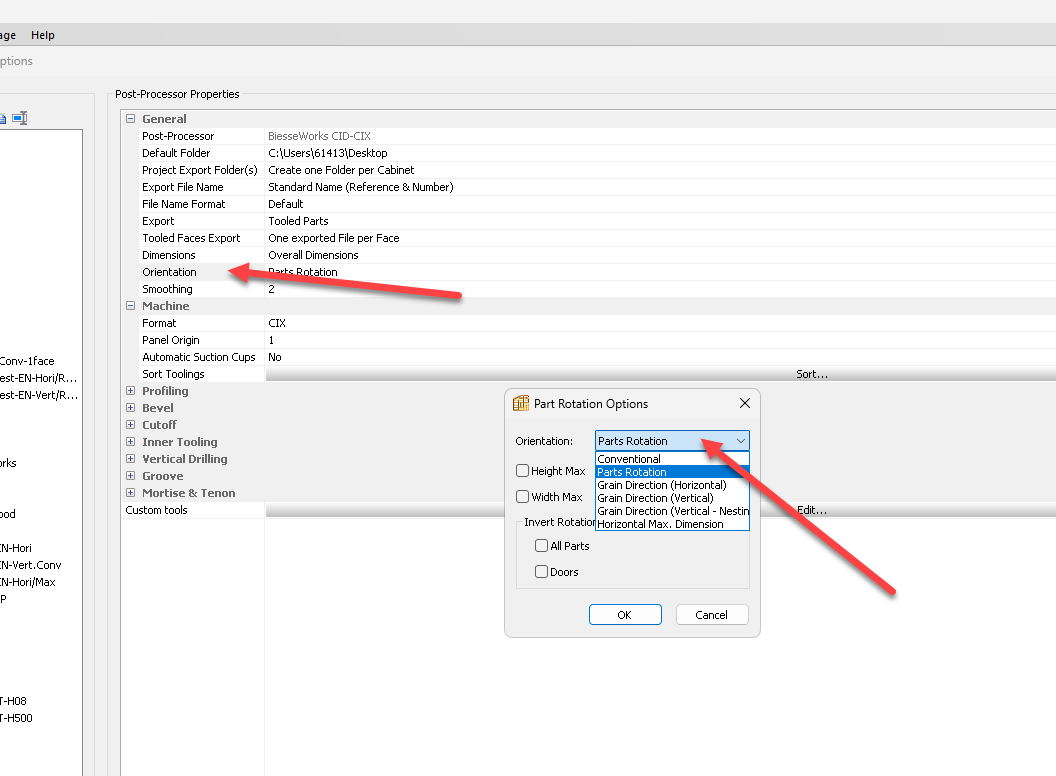

To set a fixed component orientation, you can test the following outputs:

2026-09-24_13-31-46.PNGImage Enlarger

Please note, there may be moments when you decide it is best to manually rotate some pieces in BNest.

Regards, Isaac

sp_PlupAttachments Attachments
Avatar
ANDI MÖÖBEL - Tarmo
Member

Full
Forum Posts: 13
Member Since:
July 16, 2026
sp_UserOfflineSmall Offline
1
September 24, 2026 - 6:23 am
sp_Permalink sp_Print

Hey,

Is there any way to set up PP so that all pieces that have groove sawing are oriented same way (along X axis)?

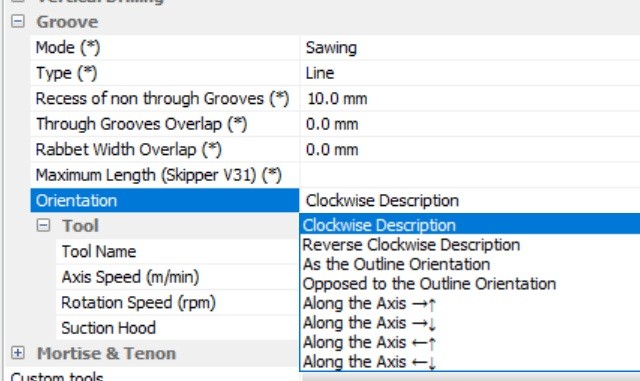

PP.jpgImage Enlarger


tried all of these options and “Orientation” option under General tab. Nothing useful really happening the output is still the same. Only flipping pieces so the ones that had cuts horizontally are now vertical and vice versa.

Tarmo
