PP setting for inner tooling
Avatar
Alex
FRANCE

Moderator
Forum Posts: 2110
Member Since:
January 20, 2017
sp_UserOfflineSmall Offline
2
November 5, 2025 - 10:38 am
sp_Permalink sp_Print

Hi,

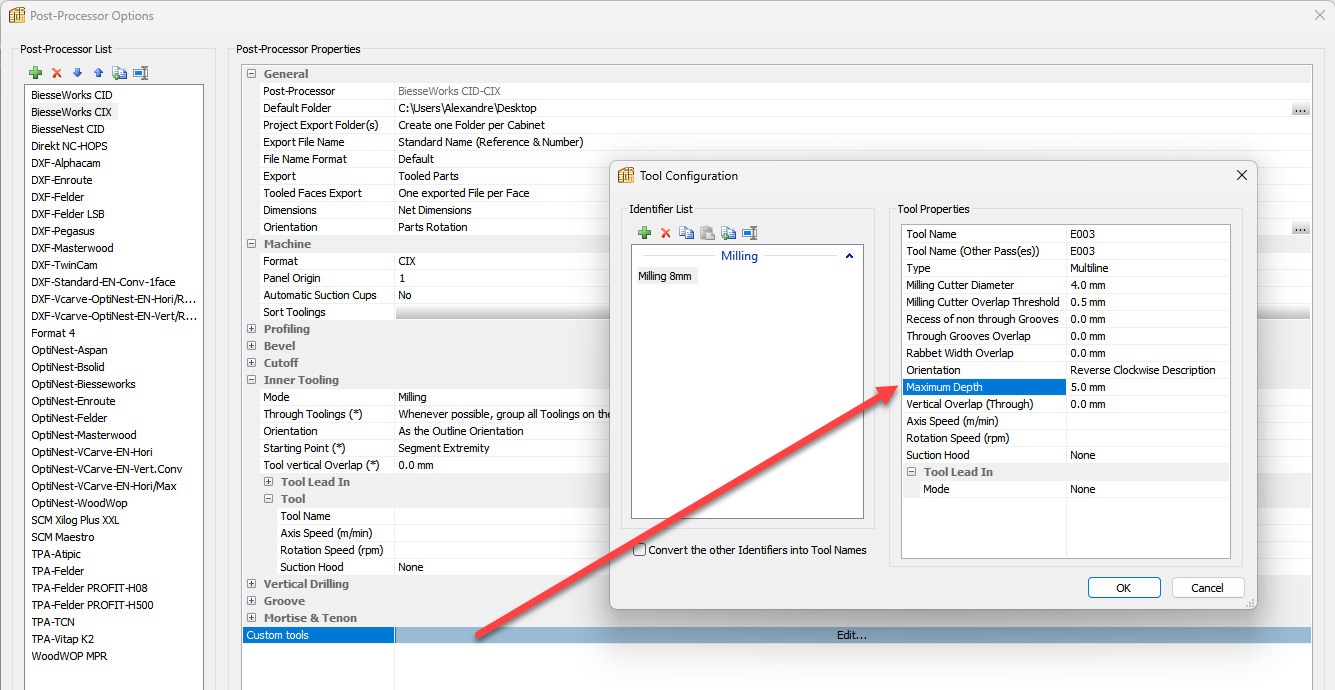

To do this you need to use Tool ID, from PP option, then define Maximum Depth per pass option.

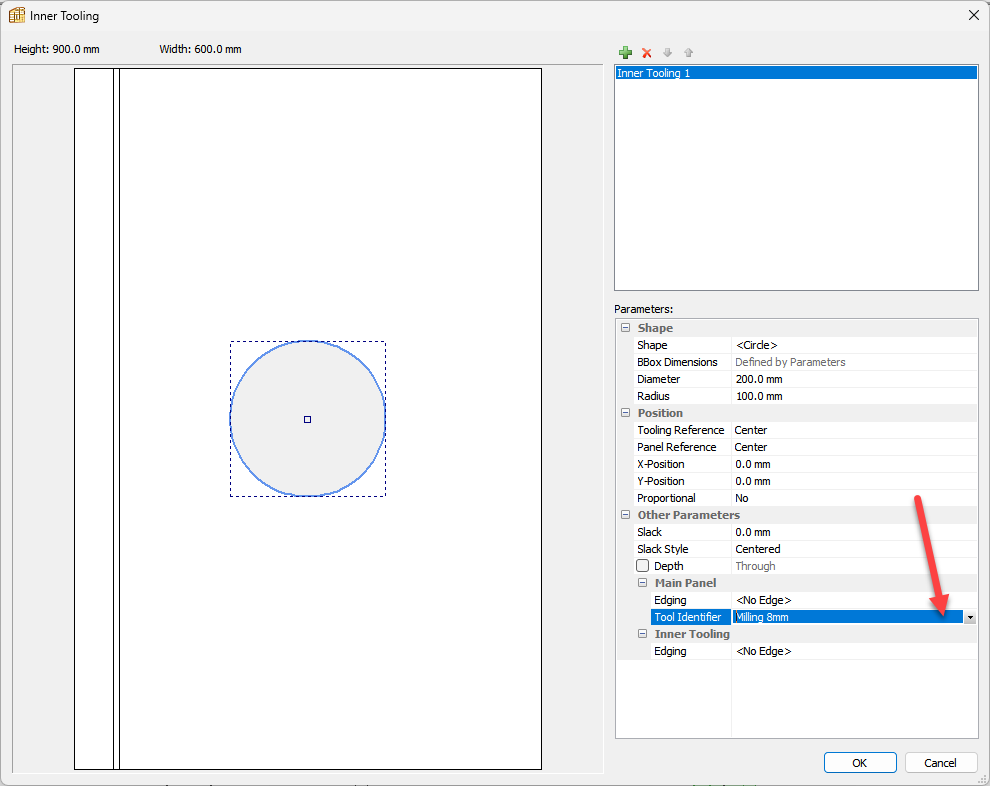

Then set this Tool when you create you inner tooling.

Hope that’s helpful, Alex

ct.pngImage Enlarger

tid.pngImage Enlarger

sp_PlupAttachments Attachments
Avatar
Ola svensson
Member

Full
Forum Posts: 100
Member Since:
January 20, 2022
sp_UserOfflineSmall Offline
1
November 5, 2025 - 9:54 am
sp_Permalink sp_Print

Hi,

Can you please advise on how to change the settings in the Post Processor for an inner tooling? See the attached file.

I would like to make a 15mm inner tooling in a 23 mm thick board, with 3 passes with 5 mm in thickness per each pass.

I now that it is possible to make this kind of setting for milling under residual thickness, is it possible to make the same setting for an inner tooling? Or do I put in the max depth in the settings for the tool?

Thanks,

Regards, Ola

sp_PlupAttachments Attachments
