Grain Direction
December 9, 2017
3:56 pm
Avatar
D-Alexandre
FRANCE

Forum Posts: 162
Member Since:
January 20, 2017
Thanked 80 times in 162 posts
Reputation: 2812
sp_UserOfflineSmall Offline

Hi,

Sorry for my bad english….embarassed

first to make your cabinet you need to use material with grain

on Libreraies>sub-methods>Material style

Mat.pngImage Enlarger

Setmatgrain.pngImage Enlarger

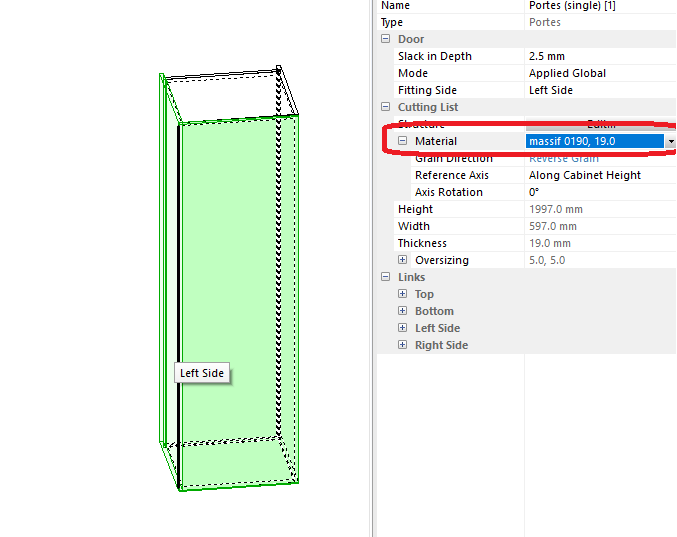

or select panel and choose material with grain

matselect.pngImage Enlarger

this give us cabinet with grain

cabgrain.pngImage Enlarger

after you select panel and set grain direction to reverse for this exemple

graindirection.pngImage Enlarger

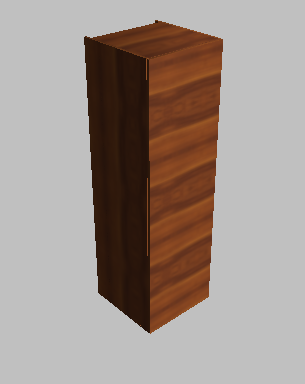

and after cabinet will look like this

cabgrain2.pngImage Enlarger

OptiCut will auto reverse panel into cut list

All the best, Alexandre cool

sp_PlupAttachments Attachments

The following users say thank you to D-Alexandre for this useful post:

Ness, syslab
December 9, 2017
11:18 am
Avatar
Thusitha Karunatilake

Forum Posts: 55
Member Since:
July 13, 2017
Thanked 0 times in 55 posts
Reputation: 277
sp_UserOfflineSmall Offline

Dear Ness,

How are you? Hope you are doing fine.

Well, we need your assistance in this matter as some of the clients are keen on this matter.

When we do the cutting list, is there any option that we can follow the direction of the  direction of the grains of timber?

Kindly advice us on this.

Regards.

Thusitha
