cabineo overlapping panels
Avatar
Isaac

Forum Posts: 52
Subscriber Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
July 11, 2024 - 8:49 am
sp_Permalink sp_Print

Hi Scott,

There is no link with OptiNest to avoid such collisions. Depending on the used tool you might be able to shorten the cap extension in the hardware library.  It has to be taken into account based on the used cutter diameter to machine the hardware and the one cutting the boards.

This fitting in our libraries overlaps so that you can square the corners on the end of the fitting. You can adjust this, depending on the size of the tooling you are using.

I hope this helps,

Isaac

Avatar
scott powell

Forum Posts: 11
Subscriber Since:
May 25, 2023
sp_UserOfflineSmall Offline
1
July 10, 2024 - 7:28 pm
sp_Permalink sp_Print

does optinest take into account tooling? as I have cabineos overlapping parts

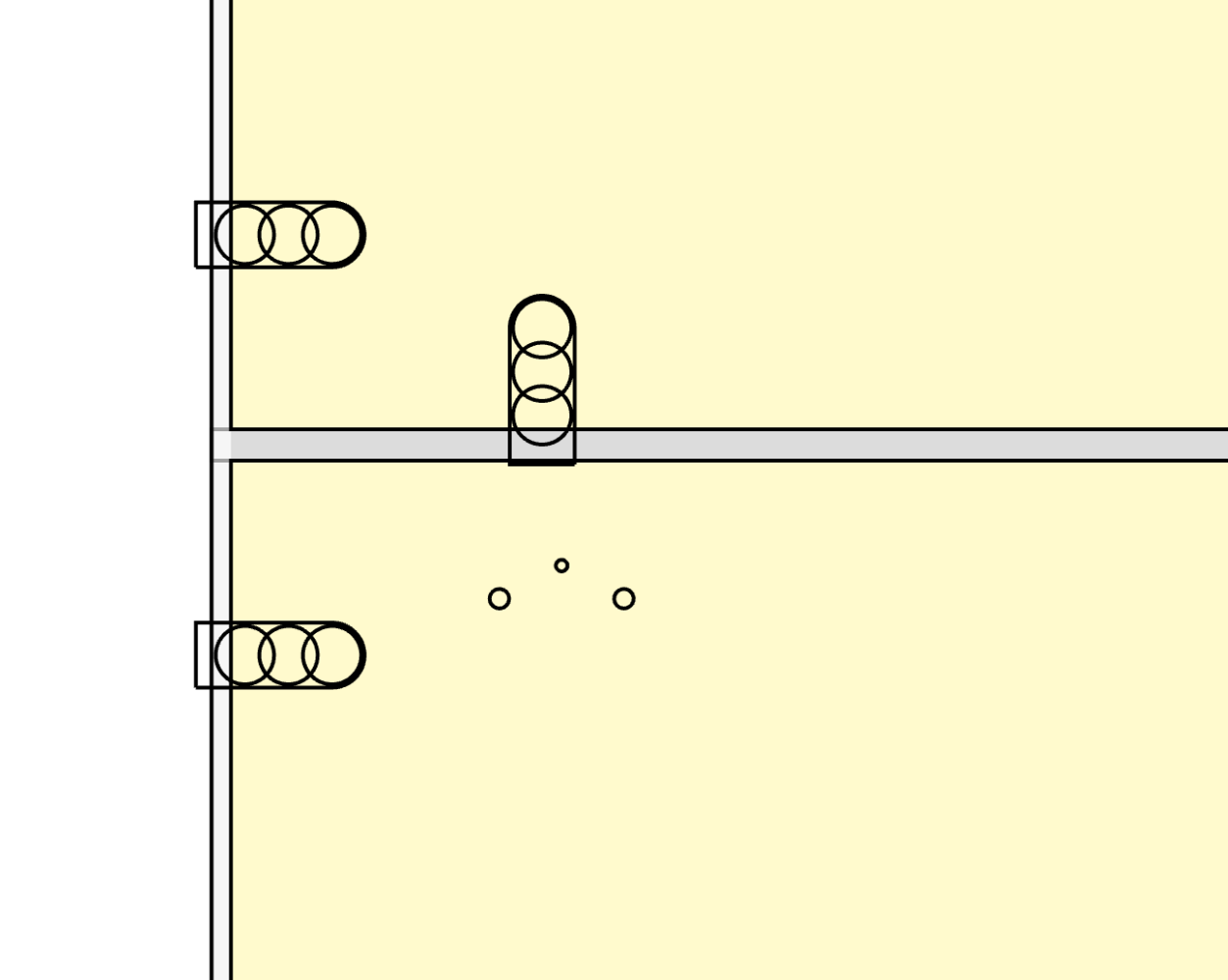

in the pic below I have my tool set to 8mm which it is but it allows cabineo to overlap partsScreen-Shot-2024-07-10-at-19.23.51-PM.pngImage Enlarger
