Polyboard to Optinest: Angle|Forum|WOOD DESIGNER
Full
September 1, 2022
Offline
Hi Alex,
Thanks for the reply. i had a call with Isaac this morning regarding some other bits and we got this sorted. turns out it wasn’t in “ignore”, but the toolings were not set on import options. these have now been set as;
/*.CHANT*;/EDGE.*;/PANEL*;
Regards
Dean
Moderator
January 20, 2017
Offline
Hi,

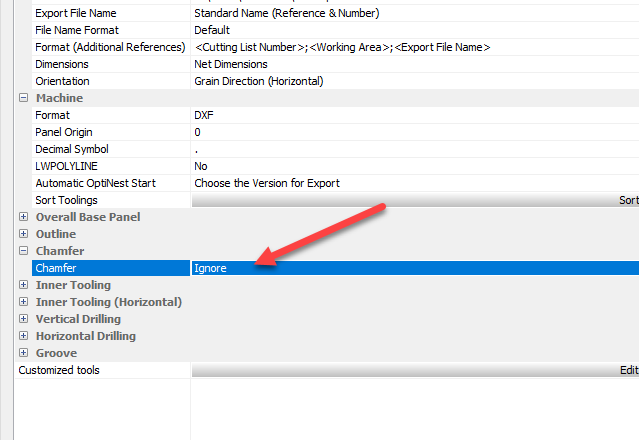

in nesting, this isn’t possible most of the time, and if you check your PP option, we’re probably in ‘ignore’ mode, which at least allows the parts to be cut to finished size to finish cutting the angle in the saw
But if you want to try it, you can switch to ‘tip done’ to add a line, and place the tip of the cut down IF POSSIBLE, because machining remains the priority,
Cheers, Alex
Full
September 1, 2022
Offline
Hi folks,
I have some angled back units which I would like to nest as cut panels. I have googled the hell out of this and can’t find any info.
Please see a cabinet example attached. The side as an angle cut from it, but when I post-process it through to Optinest, it does not recreate the angle. Can you help?
Regards
Dean
