3D Tooling on opposite side of edge|Forum|WOOD DESIGNER
Full
November 13, 2019
Offline
Hi Alex,
Thanks for the explanation, I understand now
Regards
Moderator
January 20, 2017
Offline
Hi,
I understand the confusion here, but the opposite is actually true.
It’s a bug (a problem) in PolyBoard 7 that was fixed in PolyBoard 8.
So it wouldn’t make sense to put a bug back in.
I made a video to show you the problem that was fixed.
Hope this helpful, Alex
Full
November 13, 2019
Offline
Hi Alex,

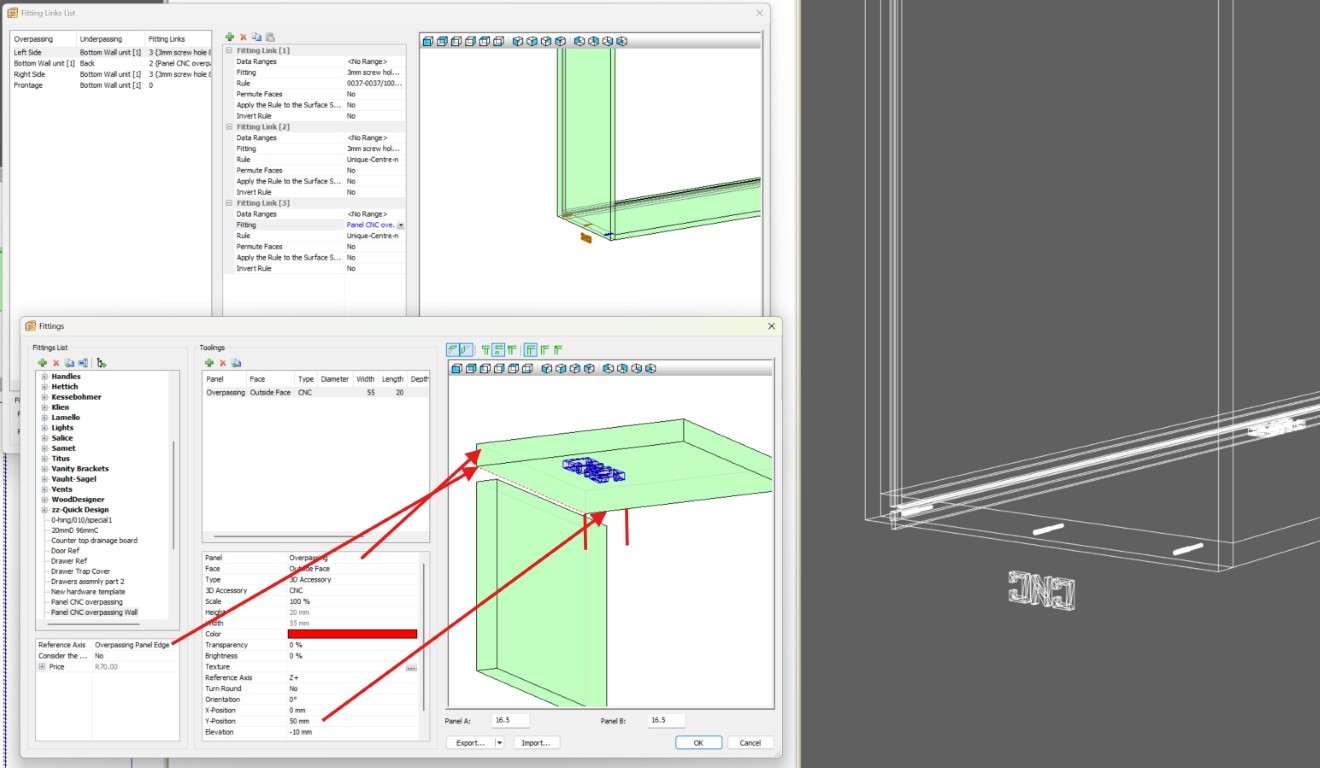

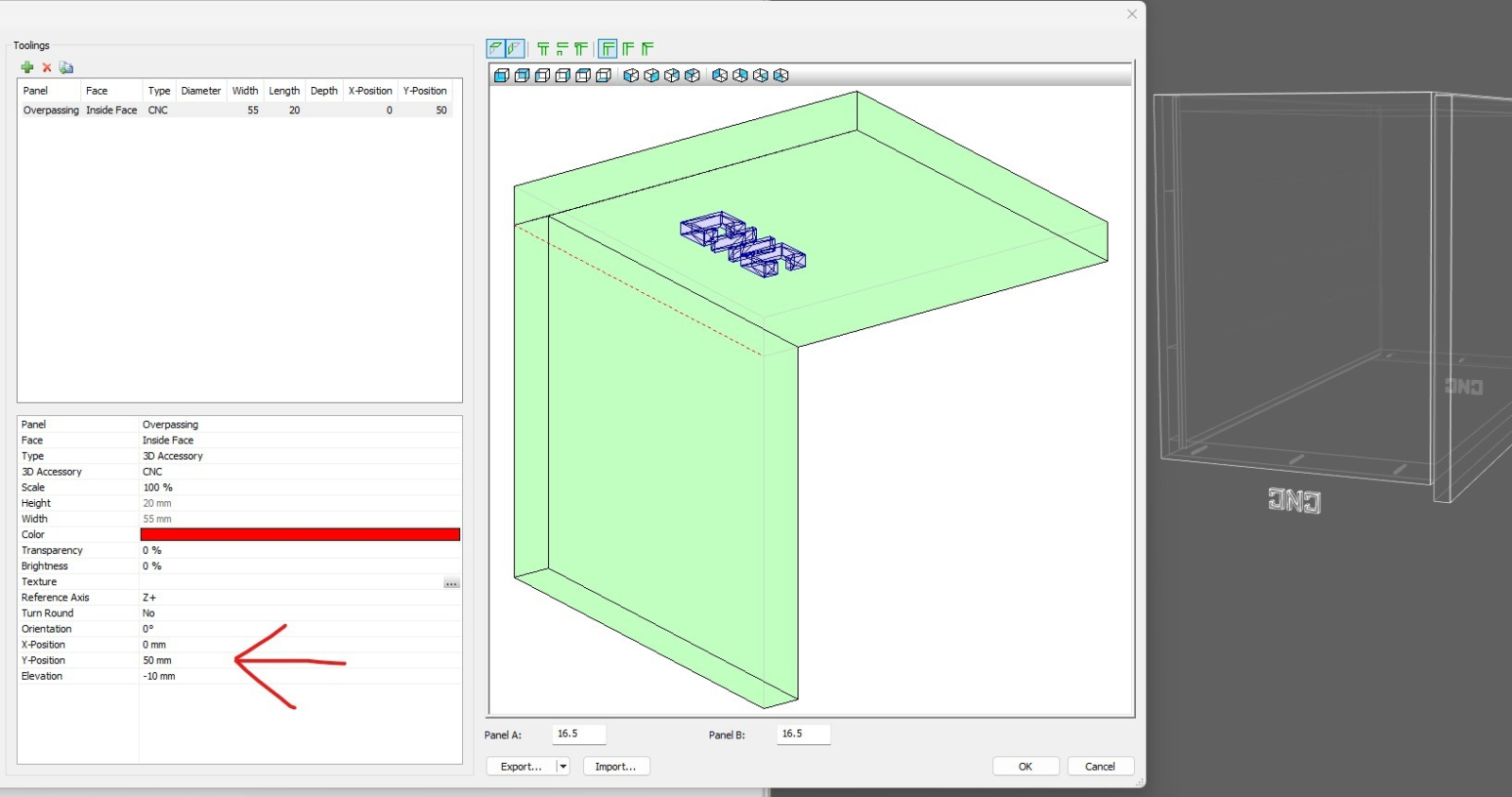

Sorry I do not understand what you are trying to say, I’m saying this tooling acts differently in pb8 as in pb7. The picture in pb8 tooling screen does not look the same as in the 3D design but in pb7 it did. The 3D Accessory is referenced to be placed on the overpassing panel 50mm from the edge of the overpassing panel not the under passing panel. It worked fine in pb7.
As far as I’ve been working on PB for the past few years, a positive dimension (50mm) the Tooling is placed on the referenced panel and a negative value will place it off the panel
Moderator
January 20, 2017
Offline
Ho!
I got it this is not an issue here! or issur in PB7 resolved in PB8

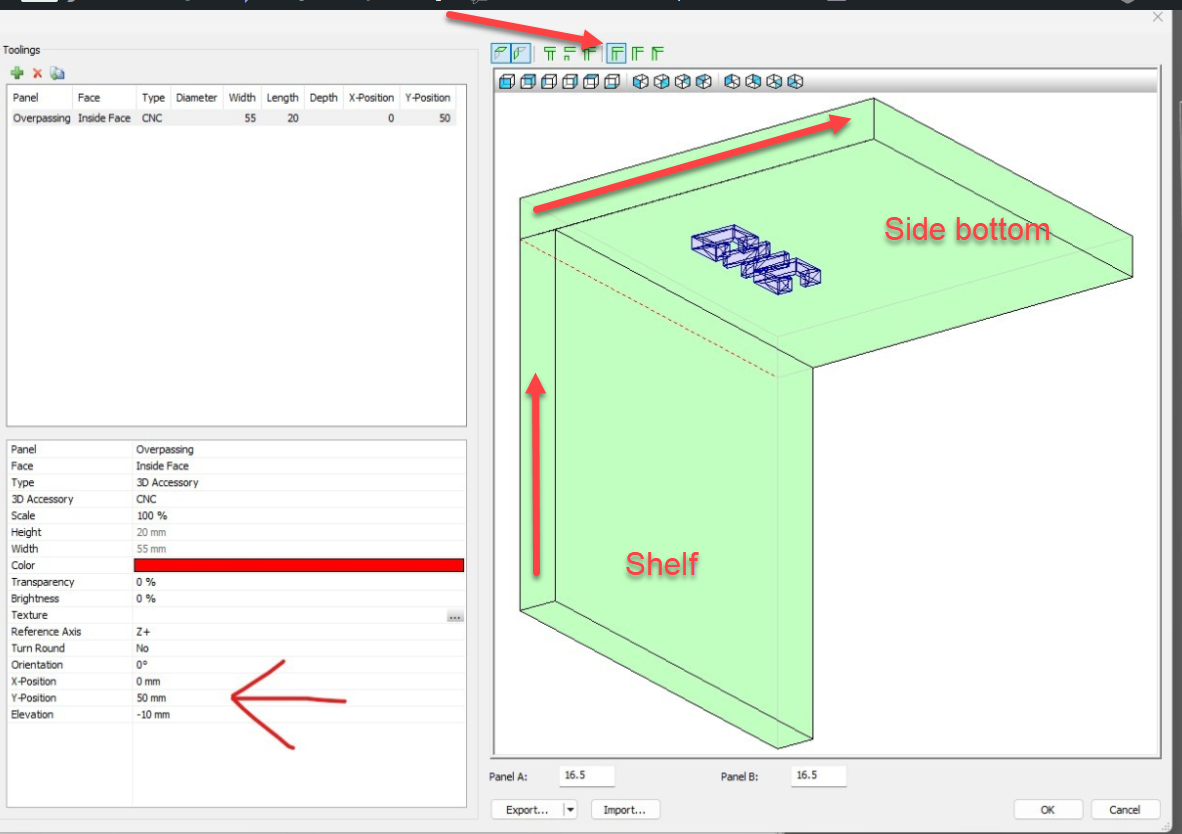

I don’t see at first you used fixed shelf as bottom!

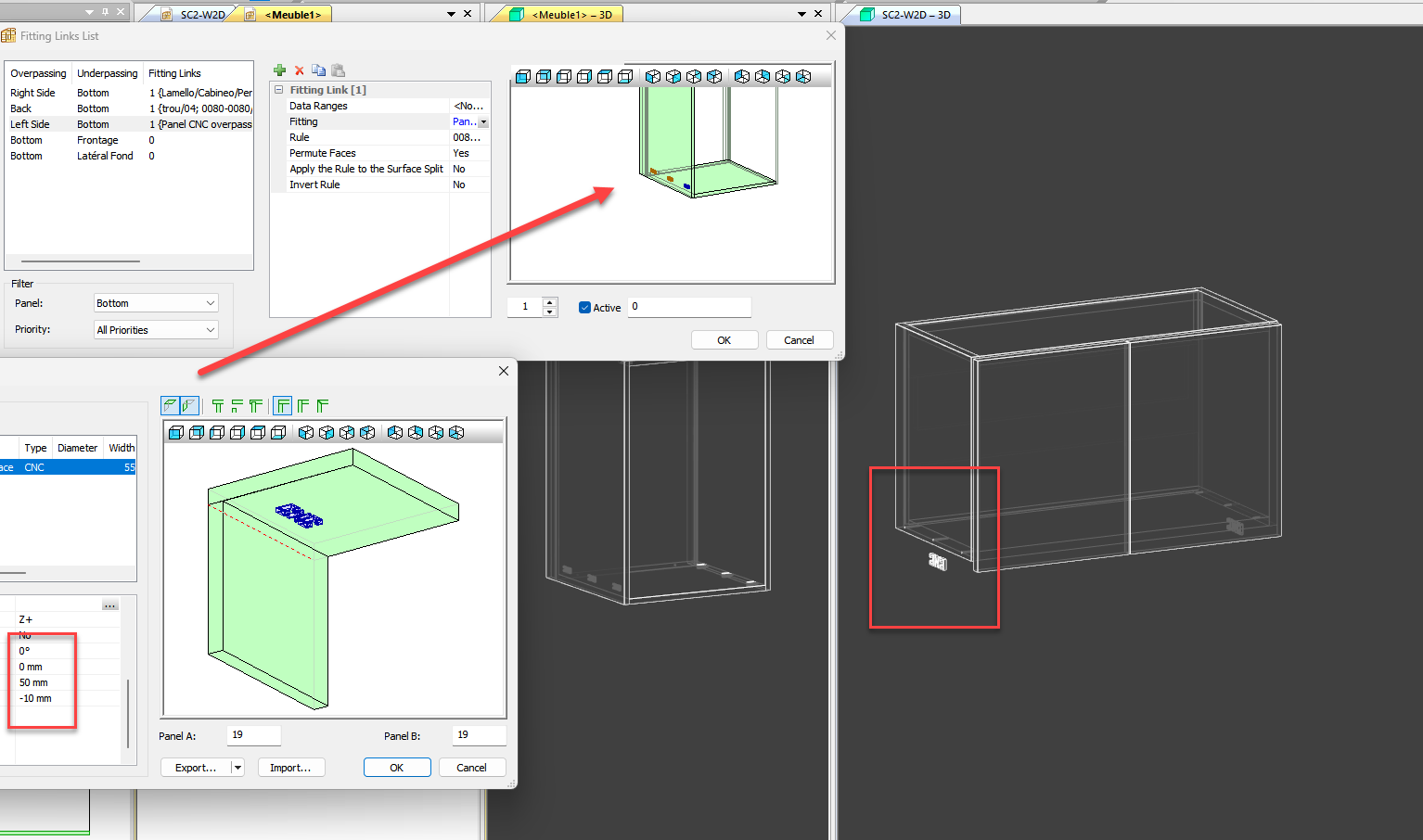

If you look your screenshoot, you see part in opposite direction

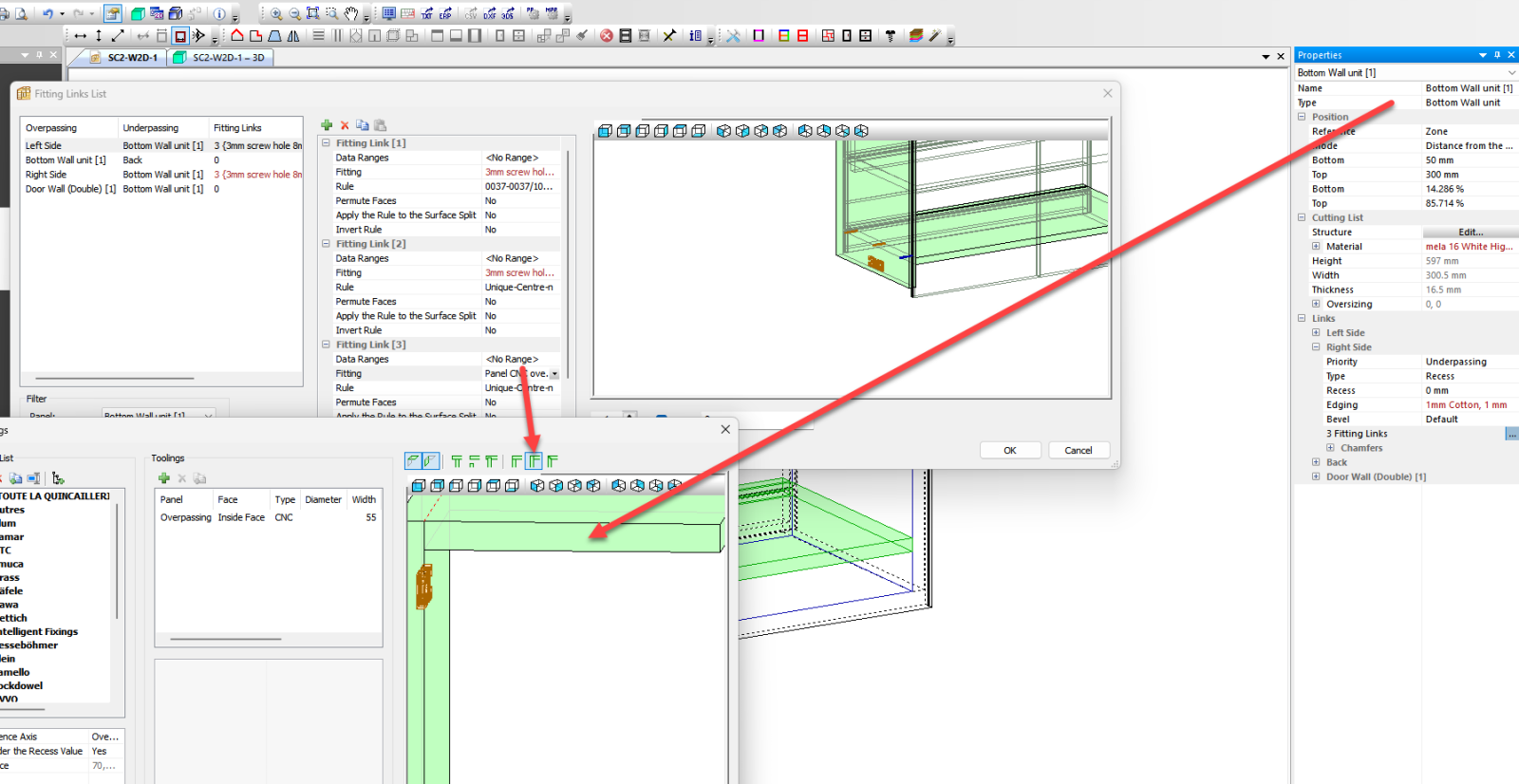

If you moved Shelf you can see all is OK,
All the best, Alex
Full
November 13, 2019
Offline
Hi Alex,
I have also made a new cabinet in pb8 and the problem is still there

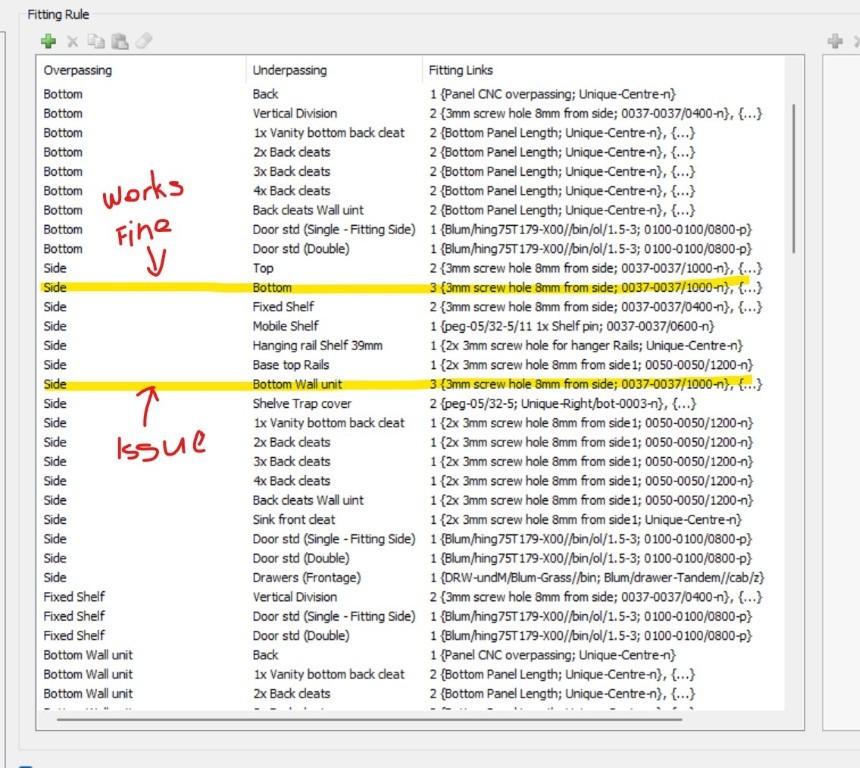

Please refer to my cabinet. I’ve made a shelve as a bottom panel for the wall units, so I did not use a bottom (boxful) panel. If I use a boxful bottom panel it works fine.
regards
Moderator
January 20, 2017
Offline
Hi,
Here again I well understand!

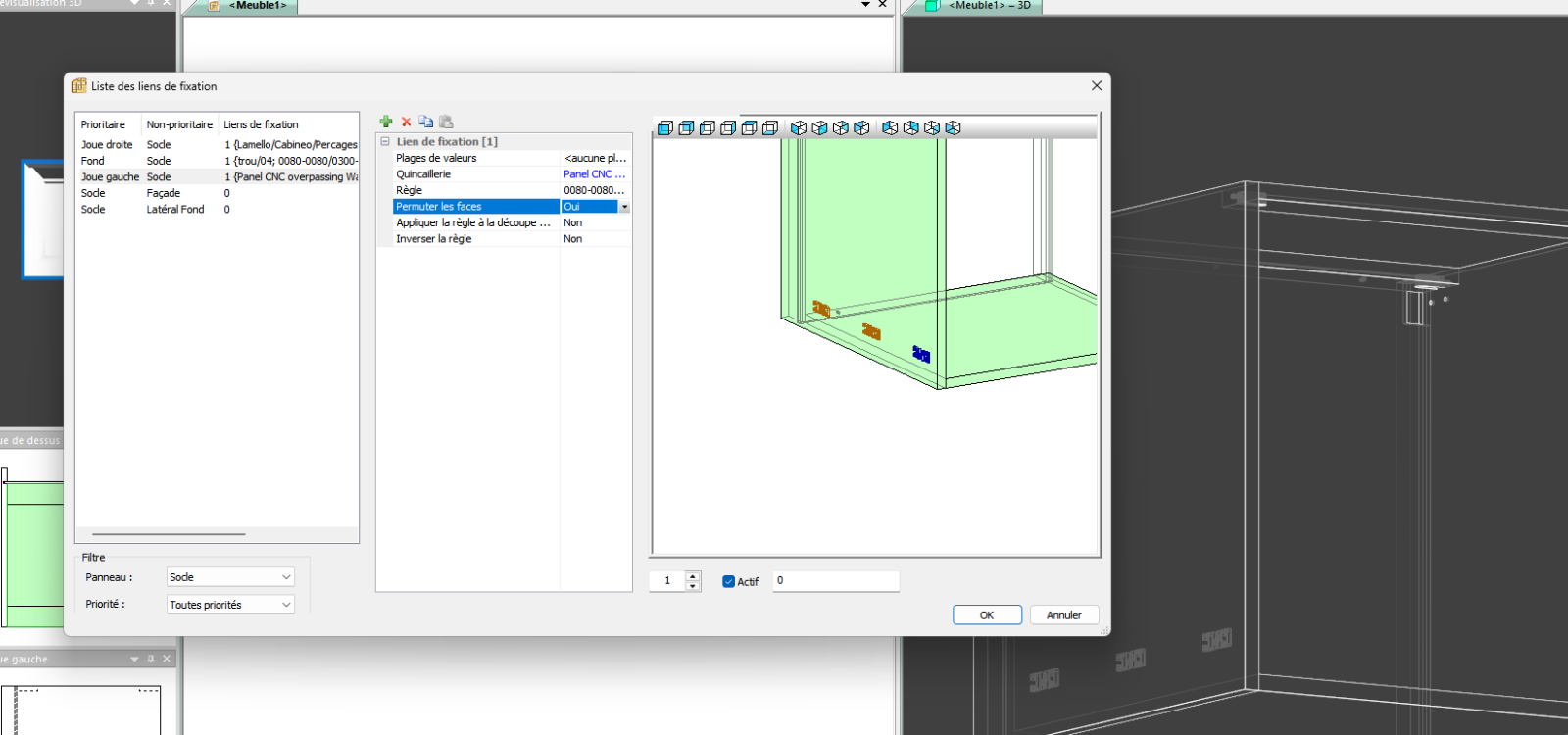

But when I restored fitting and applied it in fresh cabinet in PB8 that’s work well.
This is why we need original PB7 cabinet not already saved in PB 8 to find which going wrong during “import”.
Cheers, Alex
Full
November 13, 2019
Offline
Hi Alex,

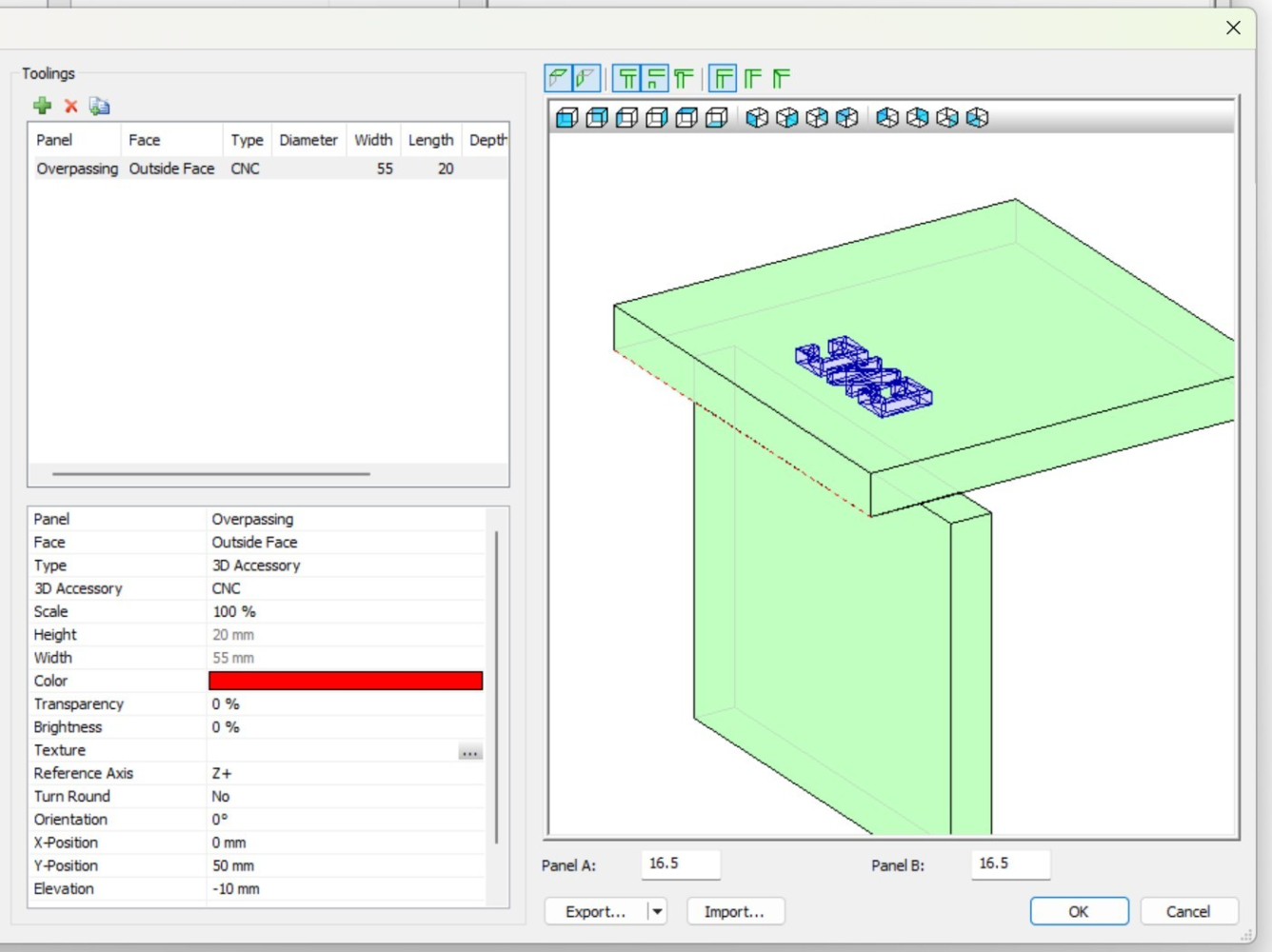

Please see the Toolings, the image in toolings does not correspond with 3D view
Moderator
January 20, 2017
Offline
Yes, I understand but may be you still have old project, create into PolyBoard 7, but not yet update/save into PolyBoard 8.
Chezers, Alex
Full
November 13, 2019
Offline
Hi Alex,
Yes cabinet and project are saved in PB 8 but was created in PB 7. I only have PB 8 on my PC now
Moderator
January 20, 2017
Offline
Hi,
Sorry if my request is not clear, did you have hold cabinet no yet saved in PB 8?
Probably something going wrong in 7 and resolved in PB 8.
If I used fitting in new cabinet all working well.
Cheers, Alex
