3mm cutter for groves instead of 12|Forum|WOOD DESIGNER
Moderator
March 25, 2024
Offline
Hello Emanuel,
This cabinet still has drillings on 2 faces for multiple panels. As long as this is the case, you will get the ISO function.
You need to remove drillings from separate faces, and set PolyBoard to drill them all from the same face.
See the following video:
Regards,
Isaac
Full
July 5, 2024
Offline
Dear Isac
I done as you told me and still the iso getting out .i make this file .
thank you
Moderator
March 25, 2024
Offline
Hello Emanuel,
See the following video:
This explains the ISO function again. Let me know if you have any more questions.
Regards,
Isaac
Moderator
January 20, 2017
Offline
Hi Emanuel,
Analysis and info:
Isaac is away and I have read exchange with Isaac.
I have restore you setting, and looking at last cabinet Victor-14-drw…
To be clear, STANDBY code fonction is add when part face need to be swape (flippe) and milled/drilled on both face ( like the upright of this cabinet ), and this can’t work with Nesting CNC with option single file per part because that create well single part with STANBY code.
For more information about part rotation, you can read this my post from June 26 here
Solution:
In used with Nesting , the solution is to sort parts with Multi-post processor,

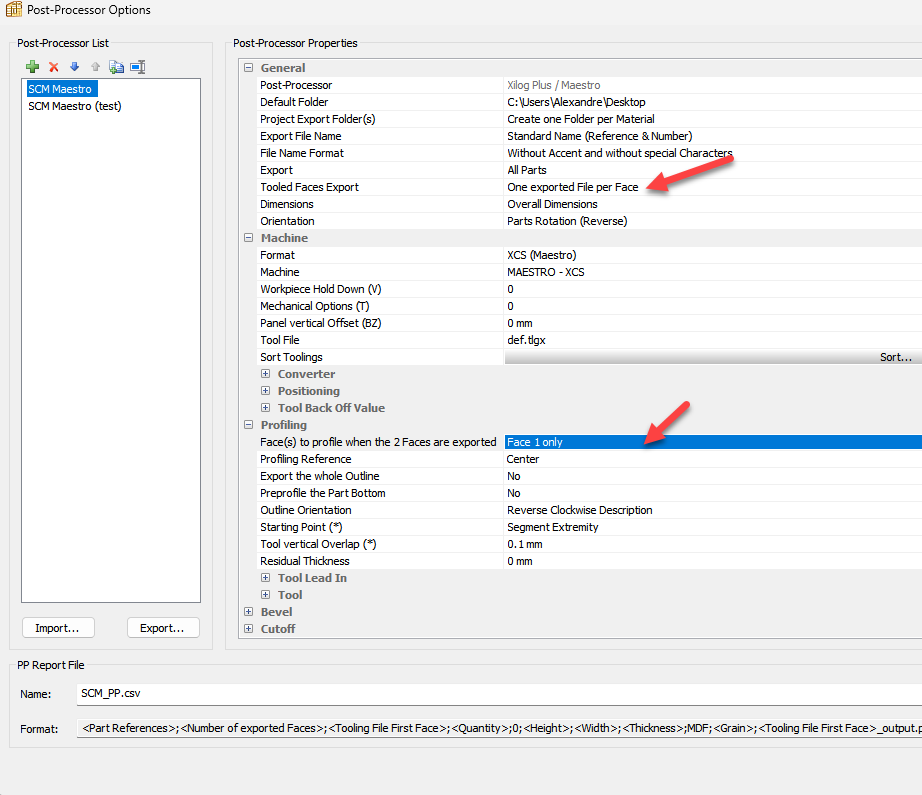

Firstly update your PP to single part per face.(see screenshot below)
Now Create Multi PP with two filter, the first with your Maestro PP, catch all second face programme to be milled after general Nesting,
Then when you made Multi PP export that’s create First folder for part must be milled after the second folder.
And this Second, is the general Nesting folder must be send to Maestro to cut all Part!
Caution:

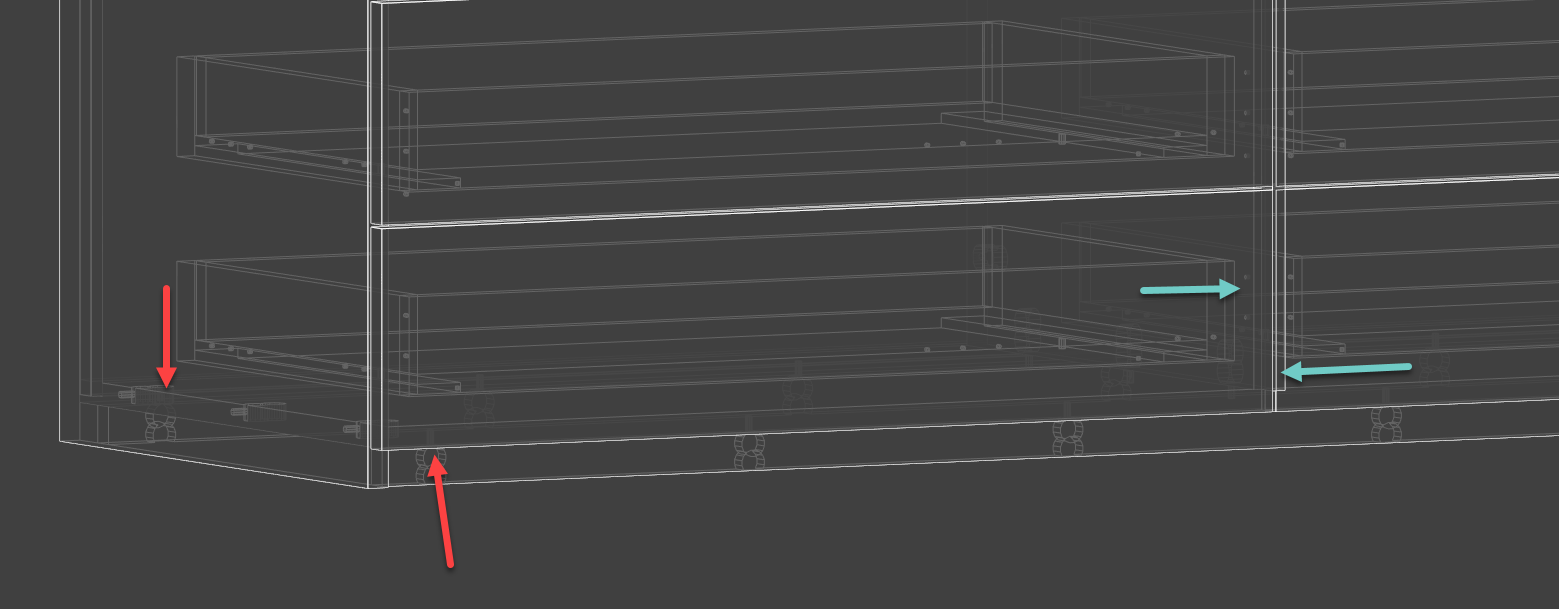

If you look this end of video, you can see there is something strange with drawers on left of cabine and upright
Hope this helpful, Alex
Full
July 5, 2024
Offline
DEAR ISAC
AS YOU TOLD ME I PUT THEM IN MAESTRO ONE BY ONE .THE FILE WITH THE MOST PROBLEMS IS THIS .BUT WHEN I PUT 3 PIECES TOGETHER I CANT UNDERSTAND WHY IT IS CONFUSING HOLES ETC .ONLY THIS GIVE ME THE STAND BY BUT THE HANGING UNIT TOP AND BOT THAT THE FILES ARE ON THIS TREAD TO GET THE GROVES PASS TRUE ON OTHER PIECES WHEN I PUT EVERY THING TOGETER
Moderator
March 25, 2024
Offline
Emanuel,
Firstly, what version of PolyBoard are you using? Have you updated to the latest version, 8.01t? If not, you will find this on our website.
Additionally, when we were experiencing the StandBy function before, this was because we were exporting drillings that did not match your tools on your machine. Make sure that these are the correct diameters for your tools, and machined on the correct faces.
If you can locate a specific cabinet or panel that you are getting the standby function on, please send it to me and I will look at it.
To test this, add 1 cabinet at a time to Maestro and see where the standby function is coming from.
Regards,
Isaac
Full
July 5, 2024
Offline
Dear isacc
thank you for your help and i set this problem but you do not answer the other questions .SO THE STAND BY IS STILL GETTING OUT AND ON THIS PROJECT ITS GET OUT SIX TIMES AND THER IS A LOT OF CONFUSION LIKE GROVES OF BACK ENTER ON OTHER PIECES AND QFIX MISSING ON PARTS AND GOES ON TO OTHER PIECES .
THIS IS REDICULOUS FOR ME BECAUSE IAM WAISTING A LOT OF TIME ON THIS THING AND AS I TOLD YOU I CANT WORK WITH THIS PROGRAM LOOKS LIKE FULL OF BUGS .SO I HAD TO DELAY 1 OR 2 DAYS NOW AND CLIENT IS WAITING .
Moderator
March 25, 2024
Offline
Hello Emanuel,
See the following video:
Regards,
Isaac
