Moderator
March 25, 2024
Offline
Hello Lorin,
There are various CAD software that are available.
Free options include:
- NanoCAD 5.0
- FreeCAD
Paid options include:
- Vectric
- AutoCAD
- Progecad
- Sketchup
Each CAD software will have its own tutorials for learning and using the software. When you have a CAD software, the correct tools allow this to be drawn within a matter of minutes. Additionally, it may be possible to retrieve a DXF of the shape from the GOLA manufacturers.
For reference, I drew mine with VCarve Pro.
Best regards, Isaac
Full
March 21, 2025
Offline
Hi Isaac,
Thank you for this. However, please let me know what cad software i can use.
Also, maybe a video on how to actually create the gola using this cad software?
Moderator
March 25, 2024
Offline
Hello,
I apologise for that. The following link should be better.
[Permission to view this media is denied]
Let me know if you have further problems here.
Regards, Isaac
Full
March 21, 2025
Offline
Hi Isaac, the link doesn`t work. I`ve tried with different browsers but no luck.
Moderator
March 25, 2024
Offline
Hello Lorin,
See the following video:
[Permission to view this media is denied]
Kind regards, Isaac
Full
March 21, 2025
Offline
Hello. How can be create different aluminum profiles to import in our projects?

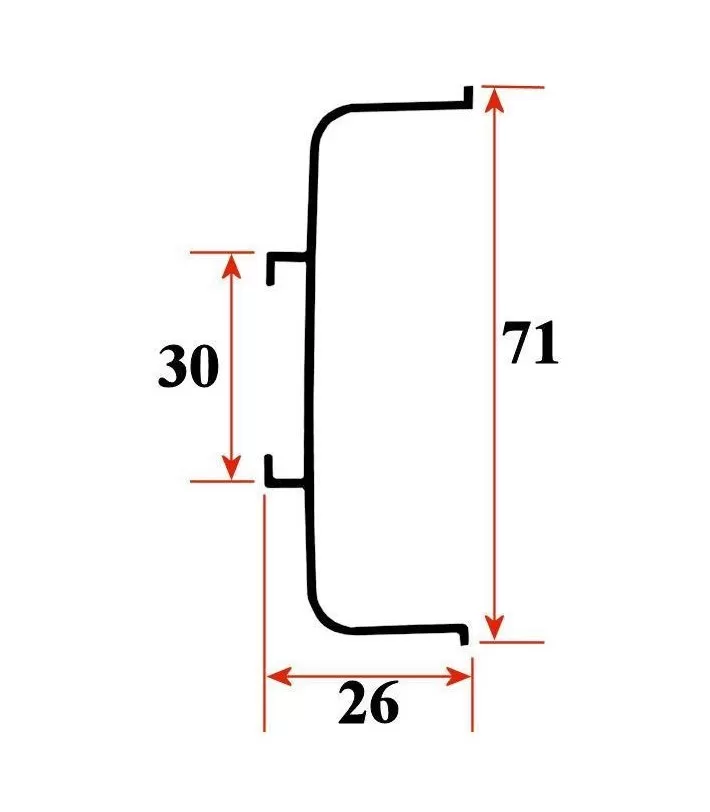

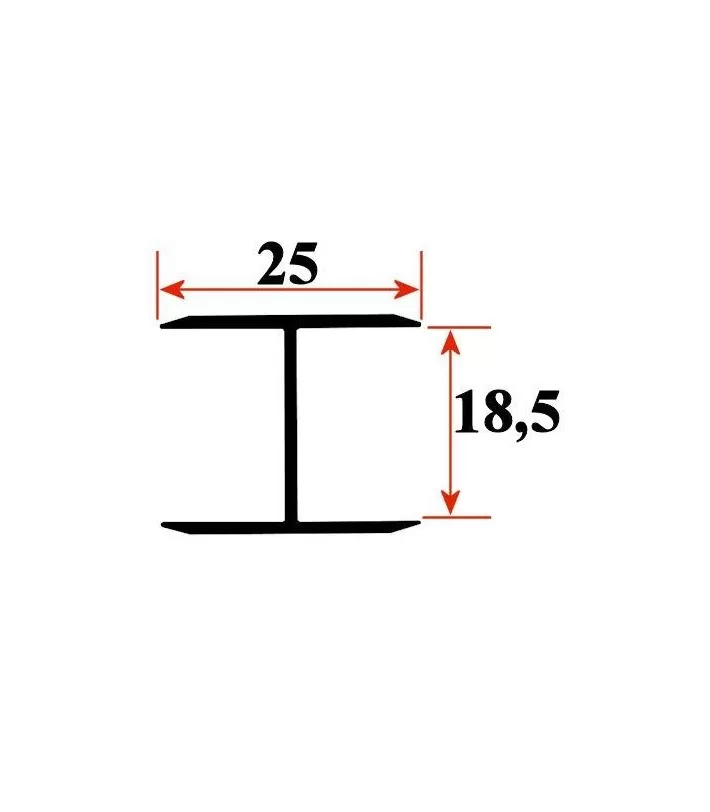

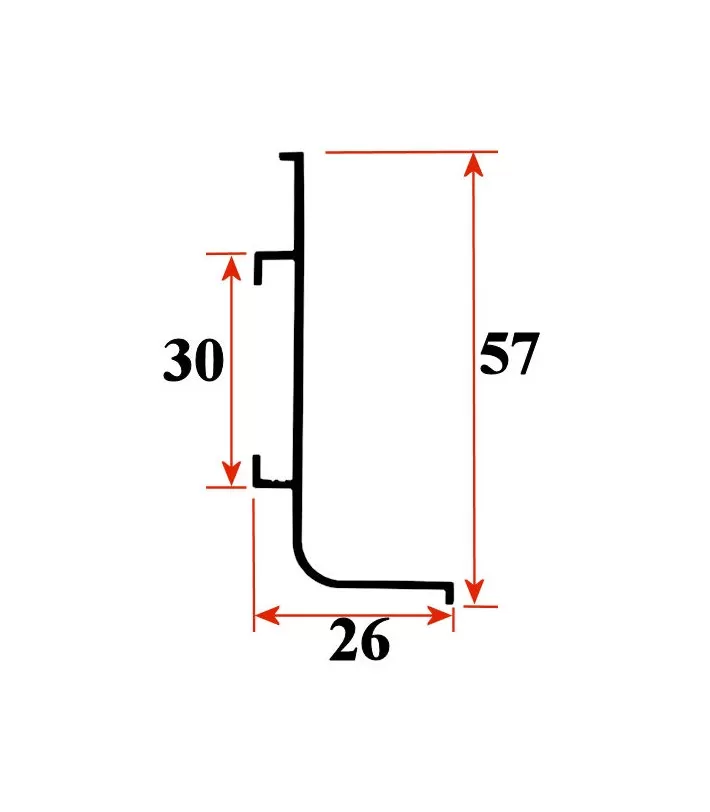

I have attached a ‘H’ profile which we use in our sliding wardrobe design, and also Gola C and Gola J. The technical dimensions are on the pictures.
Also, when applying them to our project, when the final list with accessories is released (drawers, hinges etc), will these profiles show as well? For us its important to show the lenght needed so we can order the right amount.
Thanks
