Assigning structures to doors.
Avatar
Isaac

Moderator
Forum Posts: 1521
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
June 17, 2026 - 2:36 pm
sp_Permalink sp_Print sp_EditHistory

Hello Keith,

I hope that you are well.

To apply a door structure to a specific door:

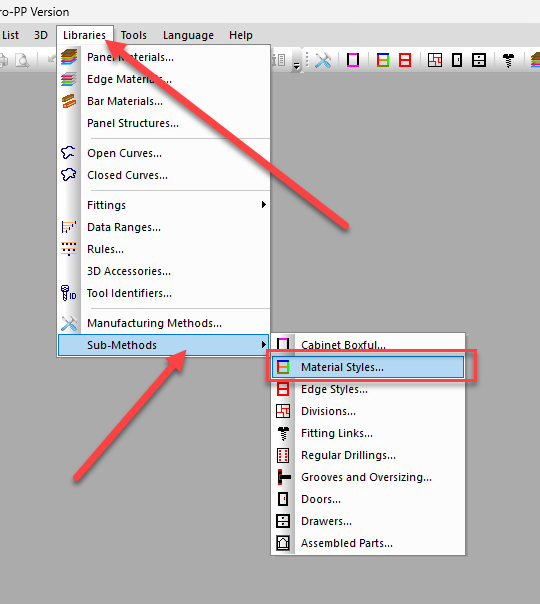

1. Access the material styles sub-method that you need the structure applied to

2026-06-17_14-31-33.PNGImage Enlarger

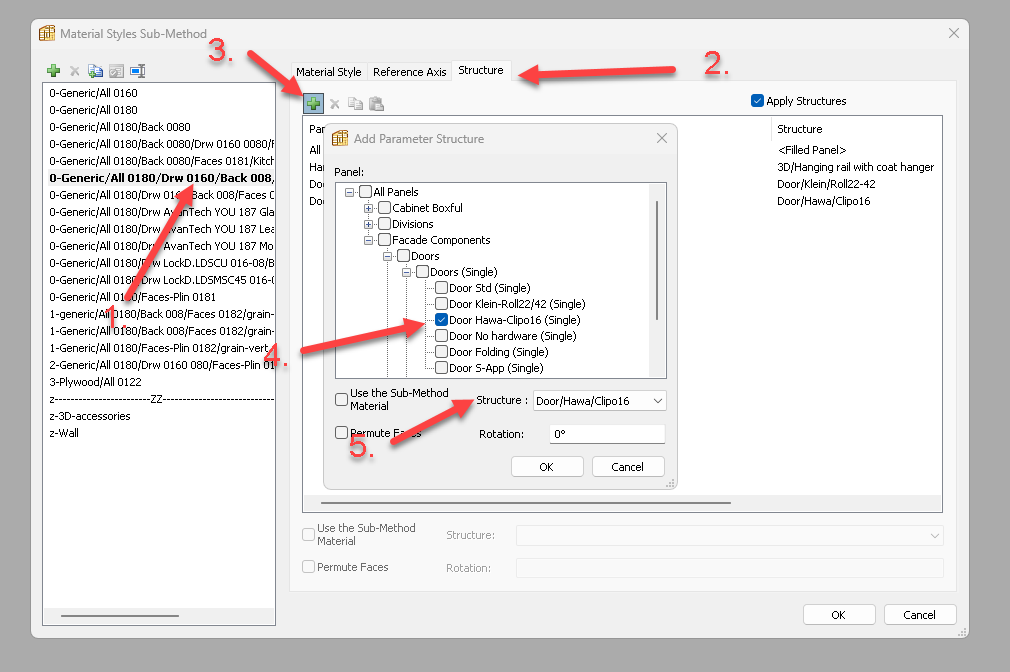

2. Access the sub-method you want to apply to structure to, select the structures tab, choose the door, and add the structure.

2026-06-17_14-33-55.PNGImage Enlarger

This will always identify the selected component with the chosen structure within the sub-method.

Please let me know if this requires further clarification.

Best regards, Isaac

Avatar
Keith Shelley
Member

Full
Forum Posts: 38
Member Since:
April 22, 2024
sp_UserOfflineSmall Offline
1
June 17, 2026 - 11:10 am
sp_Permalink sp_Print

Hi Guys,



Quick one ive added new structures to my library and I have also added a new door to my list.

How do I assign the structure to that particular door to automatically be there when I add the door to cabinets when building.



Thank you.
