Base unit with top recess and 3 doors |Forum|WOOD DESIGNER
Moderator
March 25, 2024
Offline
Hello Ashley,

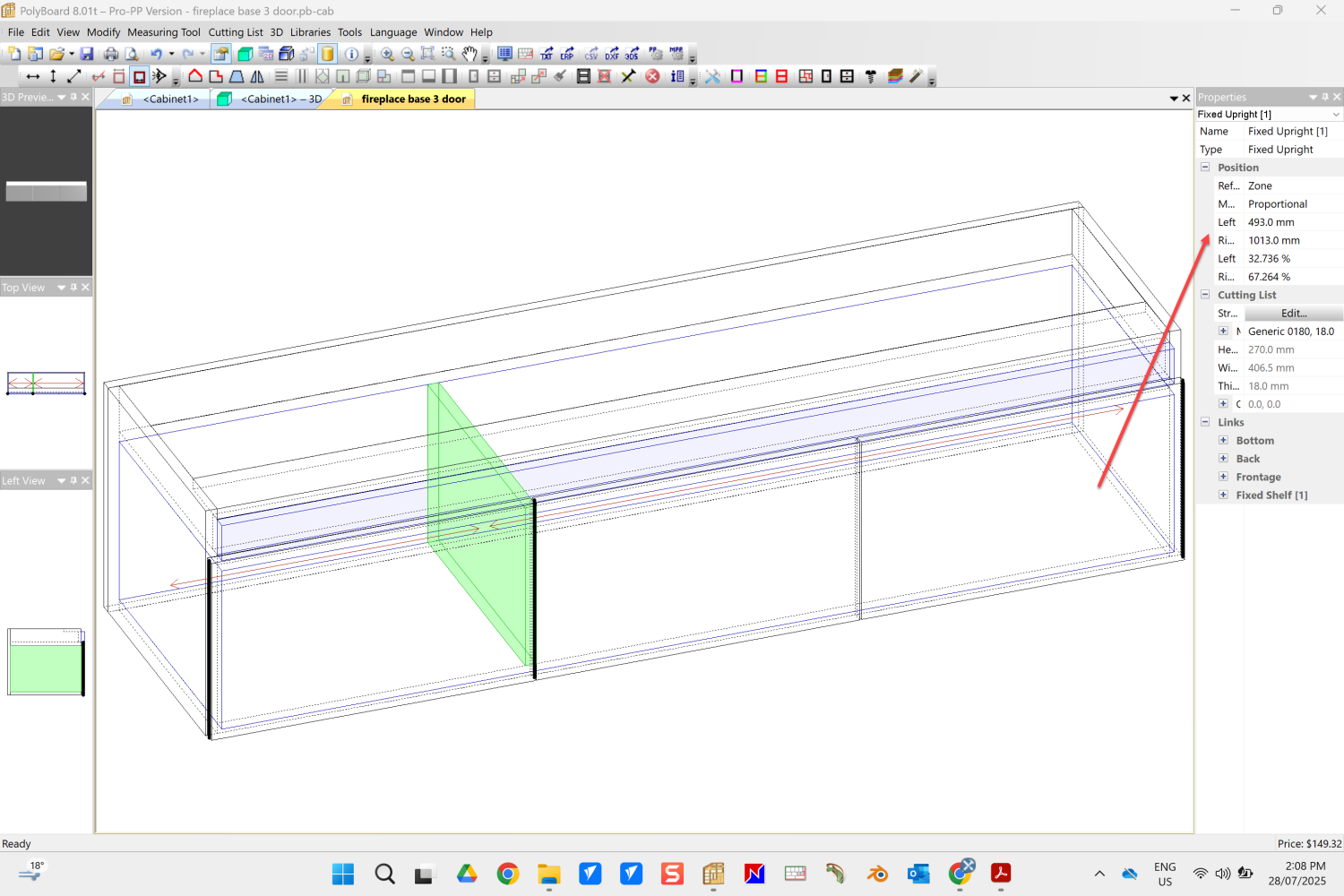

If you move your fixed upright to 493mm from the left, this will allow you to have 3 even doors with the door gaps that you currently have applied.
Additionally, you need to select the hinge that is placed against the fixed upright through your fitting links. This hinge can be changed to a “semi-applied hinge”, or a “half overlay hinge”.
If you dont have the correct hinge in your libraries, you may need to add it. See the following video for an example on adding hinges:
https://wooddesigner.org/help-…..-hardware/
Best regards,
Isaac
Moderator
March 25, 2024
Offline
Hello,
I have received these files. I will look at these soon and respond to you as soon as I can.
Regards,
Isaac
Full
June 13, 2025
Offline
I’ve tried to attached again.. I’ll also email them to support email just in case
Moderator
March 25, 2024
Offline
Hello Ashley,
Can you please try and send those files again? I don’t believe they properly attached to your post.
Regards,
Isaac
Full
June 13, 2025
Offline
Hello
I’ve attached a base unit I’ve tried creating which is a bit tricky to get right.
Firstly i need help setting up a 3 door configuration with some full overlay and some half overlay hinges.
Then i need the doors to cover the full frontage not finish where they currently do.
Also attached a quick sketch to help explain what I’m trying to create.
Thanks Ashley
