Hi Isaac,

Thanks for this. I gave it a go, but ran into a couple of issues with how the cabinet would work in practice:

LINK

We often avoid using the free shape cabinet because of the notch in the top and because the door doesn’t overlay the carcass. This makes it difficult during installation to create either a corner post or an end panel that finishes neatly in line with the door and the rest of the cabinets along the run. Hopefully that makes sense.

The main challenge is usually achieving equal door widths while also controlling how the return from this cabinet is constructed and finished. Our boxful method is tops and bottoms are generally inset to sides and back, while our backs overlay everything cabinet.

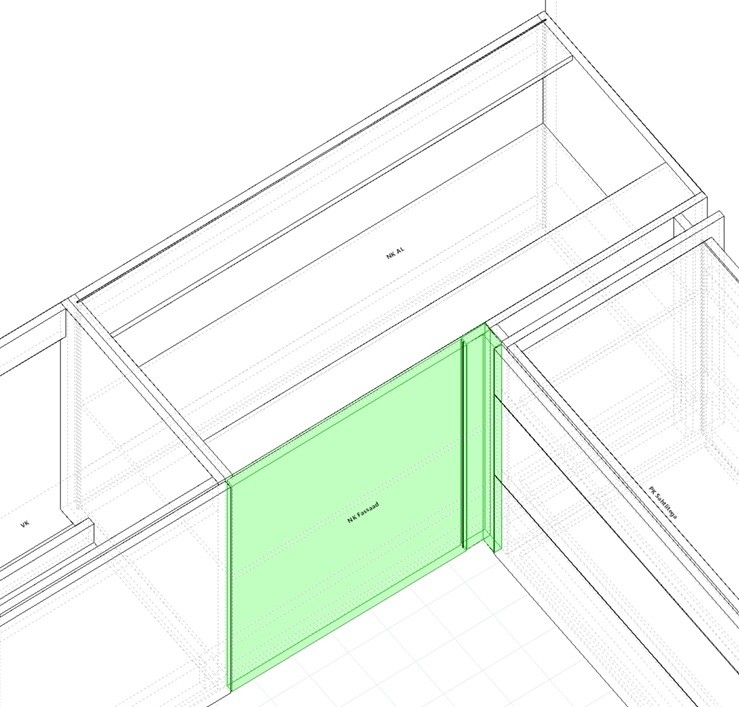

I’ve attached an example project showing how we would normally finish these returns. Another issue we encountered was allowing enough clearance to prevent the handles from opening into the returned unit.

I appreciate that I’m covering several points here, but they all relate to a wider challenge we have in translating certain PolyBoard designs into practical, neatly finished installations. I’m open to any suggestions on how you think this could be modelled or managed more effectively? As you will see, For now I use nil vertical panels, to control the blanking panels and door widths. Then place an end panel to meet the overlaying door. That is where the returned cabinet has a filler to finish.

Cheers,
Tom
