Hi Isaac,
Yeah I used to use surface split for this but as u say, it’s a bit of calculating each time.
Thanks
Dean
Moderator
March 25, 2024
Offline
Hi Dean,
You can use either a ‘free division‘ or a ‘double back‘. Both methods would work in this situation.
As it is a central panel of an assembly, edging this is currently a limitation of this application. If you need this edged in PolyBoard, you could create this type of panel through a ‘surface split‘. The problem with using a surface split is that it would resize as you adjust the width of your cabinet.
Regards,
Isaac
Full
September 1, 2022
Offline
Thanks Alex,
Only just got round to putting this into play
Works wonders, although at a loss as to why you chose to do this in double-backs and not free divisions.
Also, can’t find a way of edging each side of this. There is nothing present in edge tooling,
Regards
Dean
Moderator
January 20, 2017
Offline
Hi,
Something like this?
Cheers, Alex
Full
September 1, 2022
Offline
Bump… Anyone got any ideas?
Regards
Dean
Full
September 1, 2022
Offline
Sorry Alex.. I’m rubbish at attaching. Should be here now.
Dean
Moderator
January 20, 2017
Offline
Hi,
Sorry I can’t see anythings attached,
Cheers, Alex
Full
September 1, 2022
Offline
Hi folks,

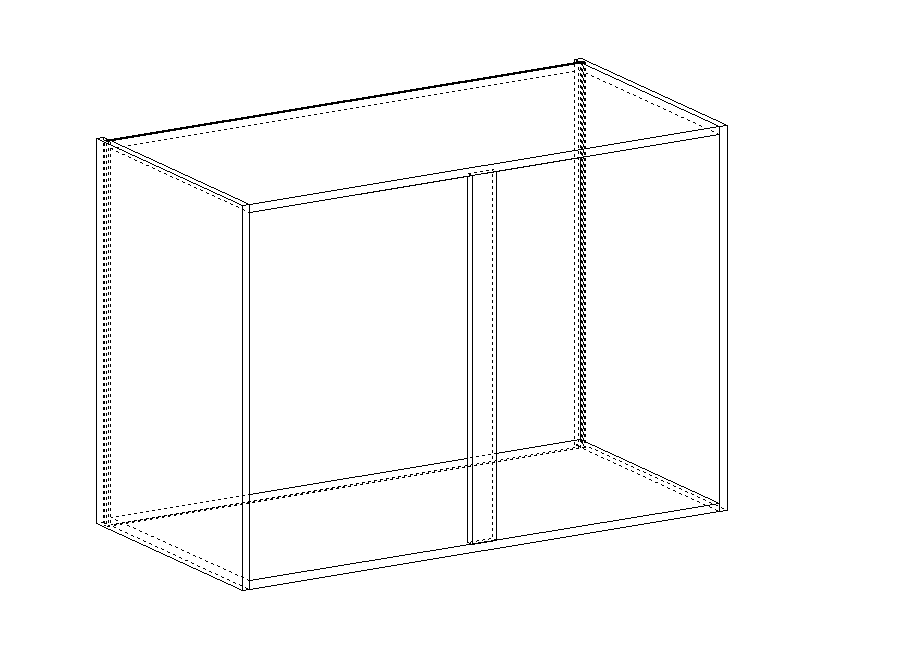

Have tried for ages to create a panel structure to create a set size centre post in the middle front of my cabinet. Added it as a Free Division but want it to change when panel structure created, to a 60mm wide centre post(18mm deep). Please see below.
Thanks again
Dean
