Changing the height of a drawer back|Forum|WOOD DESIGNER
Moderator
March 25, 2024
Offline
Hello Blake,

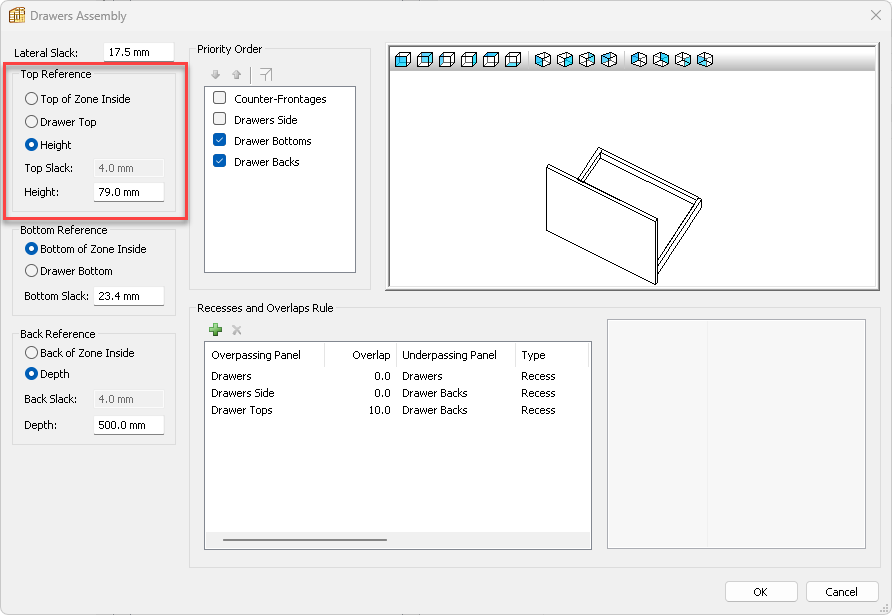

Yes, so to adjust the height it is found in the assembly settings. Note, this is the overall drawer box height so you will need to allow for any overlapping panels and gaps added in your rules.

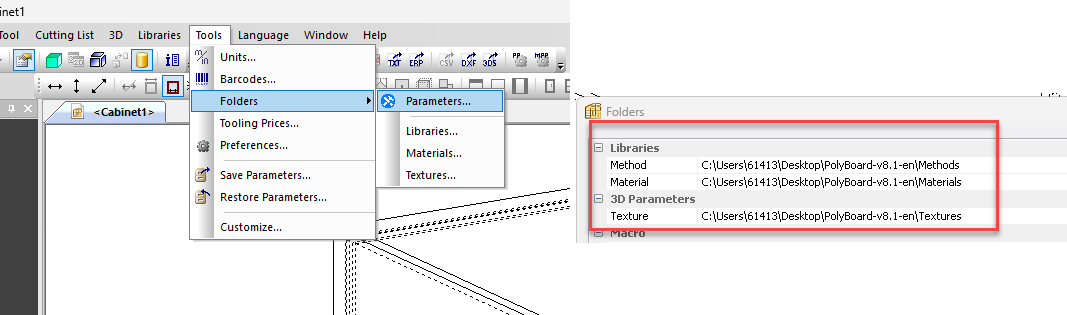

Regarding your libraries, do you have a single folder location for your libraries that is visible across multiple computers? Under tools>folders>parameters you can see the location of your referenced libraries.
Make sure that your library files are in a shared drive/folder location, and they are being referenced on all of your different computers using PolyBoard.
Please let me know if you have any problems with this.
Regards, Isaac
Full
January 26, 2026
Offline
Hello Issac
Thank you for the video link for construction of drawers this was a video I had seen before was just a little hard to understand after a few viewings I got it sorting as the settings I needed were for metal sided drawers not box drawers.
But I have another quick question the video when displaying the the fitting from the Quick Designs Libirary I don’t seem to have the same available options, (we have polyboard on another computer pulling from the same libs. (we believe)) and that as a few different choices.
Any ideas as to why this may be happening?
Thanks for your time
Blake
Moderator
March 25, 2024
Offline
Hello Blake,
Thank you for your question. Please see the video through the following link. In this video, we showcase setting up a drawer system against a technical sheet, and this will explain each of the drawer assembly parameters. Please review this and let me know if you have any further questions.
Best regards, Isaac
