Regarding the drawer fronts:
1. You can add them the same way as before. For this to work properly, make sure the hole positions are consistent in relation to the top, bottom, and sides of the drawer fronts.
2. We’re expecting an update soon that should provide additional options for this type of scenario.
3. You can also add the holes through your fitting links. This method is a bit more challenging since it references both the bottom panel and the drawer/counter front. Again, consistency in hole placement relative to the edges of the drawer fronts will make this process much easier.
Best regards,
Isaac
Moderator
March 25, 2024
Online
Hello Adam,

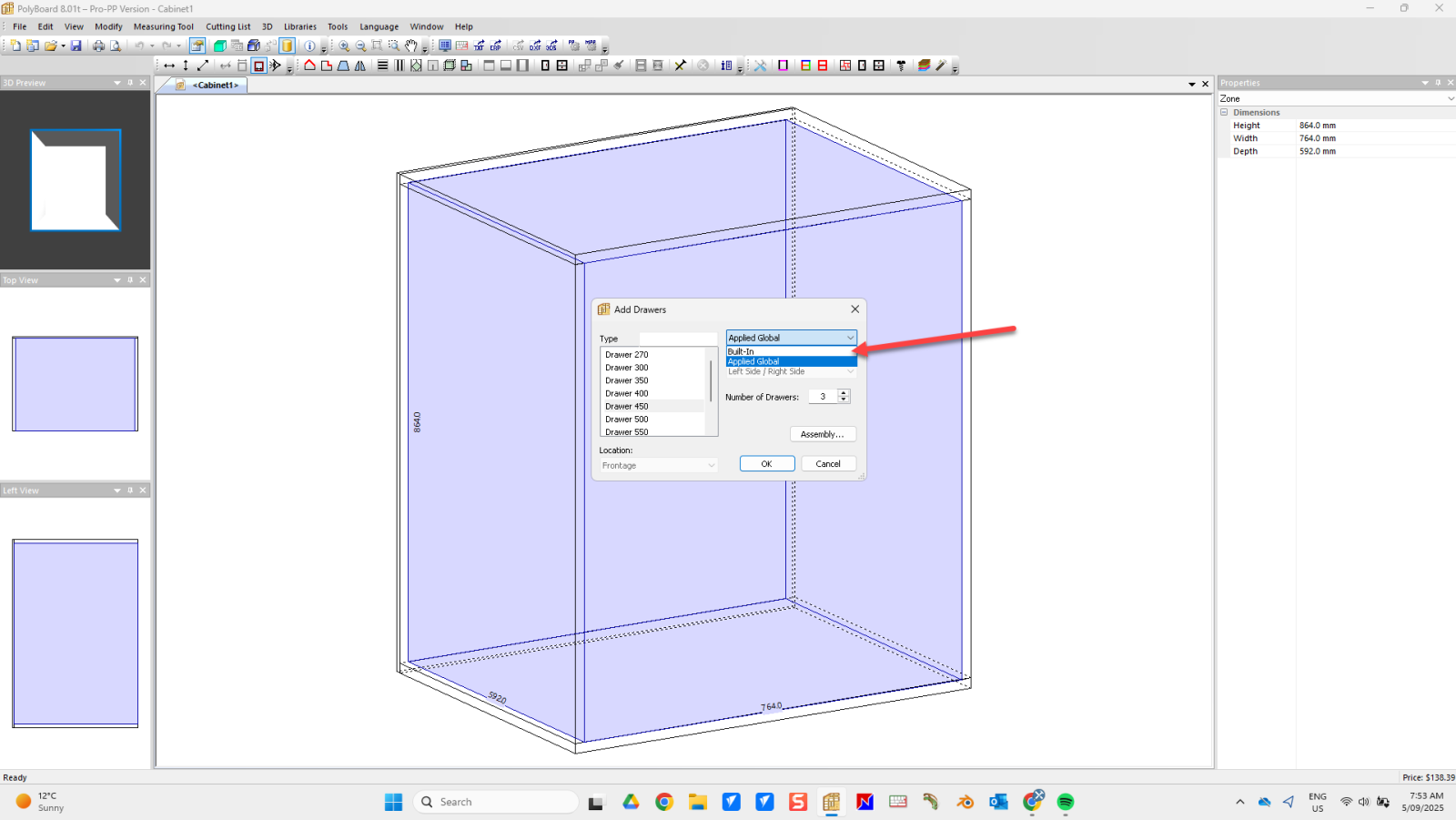

If you are asking about recessing them into the unit, you need to set them as Built-In. You can either do this when adding doors/drawers, or in the properties menu. See the following images:
If you want to adjust the door recesses in relation to the height and width of the cabinet, this can be accessed in the door/drawer sub methods, or in the properties menu. See the following images:
If you are adjusting sub-methods, you can see further information for this here:
https://wooddesigner.org/help-…..g-methods/
Best regards,
Isaac
March 13, 2025
Offline
how do i recess doors in my unit
March 13, 2025
Offline
thanks isaac
can i put the holes in the main frontage as well? as trying to save time in putting draw fronts on and having them lined up
thanks adam
Moderator
March 25, 2024
Online
Hello Adam,
See the following video:
Additionally, you can create cabinet libraries is two ways:
1. Create a project and label it “xxx Library”, and save all of your cabinets to this project. You can copy and paste these cabinets to other projects when required.
2. Save an individual cabinet file per cabinet and put them in a common folder on your computer.
To add cabinets to a catalogue, save your cabinets as a file on your computer, and upload them in catalogue mode.
Regards,
Isaac
March 13, 2025
Offline
hi
I m trying to fix draw frontage to counter front draw but cant seem to get any drill holes to appear on drawing any chance of a bit of help please, also how do i save my units i designed to the catalog?
thanks adam
