Correct Layer Name for Chamfers in PolyBoard DXF (for Holzher Campus 7)?
Avatar
Isaac

Moderator
Forum Posts: 1096
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
May 28, 2025 - 2:04 pm
sp_Permalink sp_Print

Hi Marius,

For me and looking at the information that I have:

Bevel should be set by milling a line.

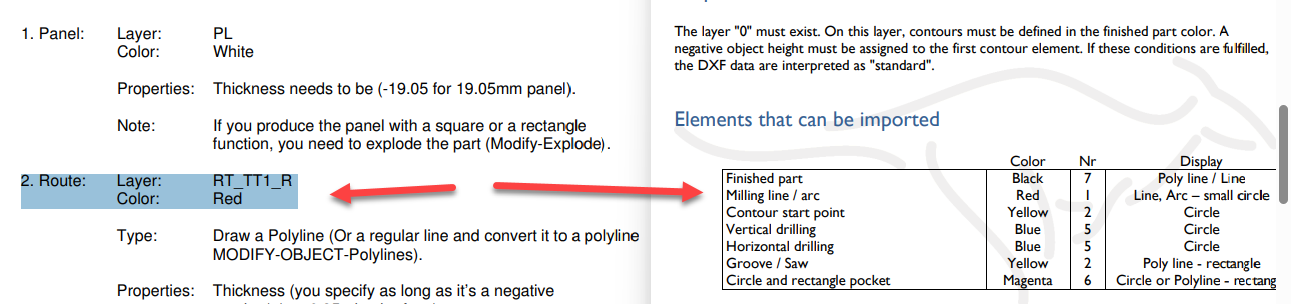

image-4-1.pngImage Enlarger

RT_TT1_R and 1 must be replaced by your tool number.

L / R , Left or Right of line must be aligned to your parameters.

For example: RT_TT12_L , Tool number “12” from the “Left “.

image-3.pngImage Enlarger

Regards,

Isaac

sp_PlupAttachments Attachments
Avatar
Marius Radu
Member

Full
Forum Posts: 55
Member Since:
August 23, 2023
sp_UserOfflineSmall Offline
1
May 27, 2025 - 7:11 pm
sp_Permalink sp_Print

Correct Layer Name for Chamfers in PolyBoard DXF for Holzher Campus 7?

Hi everyone! 👋

Hi everyone! 👋

I’m working with PolyBoard to export DXF files for my Holzher Dynestic 7505 running Campus 7. I’m using an Amana Tool RC-1028 91° V-Groove Insert Router Bit for cutting chamfered edges (like a 45° bevel).

I want to make sure I’m using the correct layer name in my DXF so that Campus 7 recognizes these cuts as chamfers, not as pockets or other toolpaths.

Could someone kindly confirm:

  • What is the standard layer name for chamfers in DXF files for Campus 7?
  • Any additional tips for ensuring chamfers are interpreted correctly by Campus 7?

Thanks so much for your help and insights! 🙏
