Difference in measurement in the drawing and in the cutting list
Avatar
Isaac

Moderator
Forum Posts: 1081
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
4
November 20, 2025 - 8:42 am
sp_Permalink sp_Print

Caroline,

Firstly, note that you have oversizing assigned to vertical division 5. This is why the cutting list looks larger, as it includes your 10mm oversizing that you have applied. If you want your cutting list to not contain oversizing, I would either remove the oversizing or set your cutting list to reference Net dimensions.

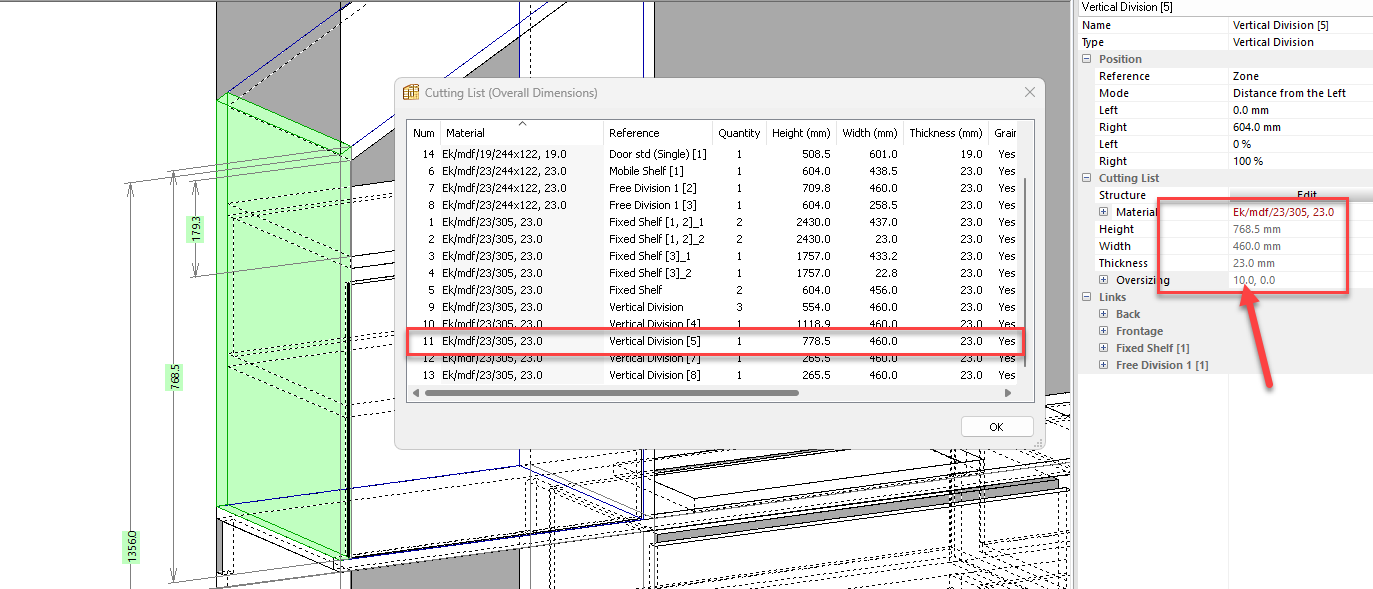

Cutting-list.pngImage Enlarger

Regarding your sides, I recommend accessing your fitting links and in your Copied method, removing the rules associated with the left and right sides of this cabinet.

Regards, Isaac

sp_PlupAttachments Attachments
Avatar
Ola svensson
Member

Full
Forum Posts: 98
Member Since:
January 20, 2022
sp_UserOfflineSmall Offline
3
November 20, 2025 - 8:07 am
sp_Permalink sp_Print

Hi,

Yes of course, please see attached file.

I have another question as well, the left side is non present but the Lamello Clamex in the bottom piece is using the left side as a reference and it is now more of the 6 mm holes in there, it is the same on the right side of the furniture…?!

Regards, Caroline

Avatar
Isaac

Moderator
Forum Posts: 1081
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
November 20, 2025 - 7:57 am
sp_Permalink sp_Print

Caroline,

Can you please send me your cabinet to view.

Regards, Isaac

Avatar
Ola svensson
Member

Full
Forum Posts: 98
Member Since:
January 20, 2022
sp_UserOfflineSmall Offline
1
November 19, 2025 - 4:55 pm
sp_Permalink sp_Print

Hi,

We discovered that the measurement in the drawing in PB is different form the cutting list, why is that?

Best regards, Caroline
