Hello,

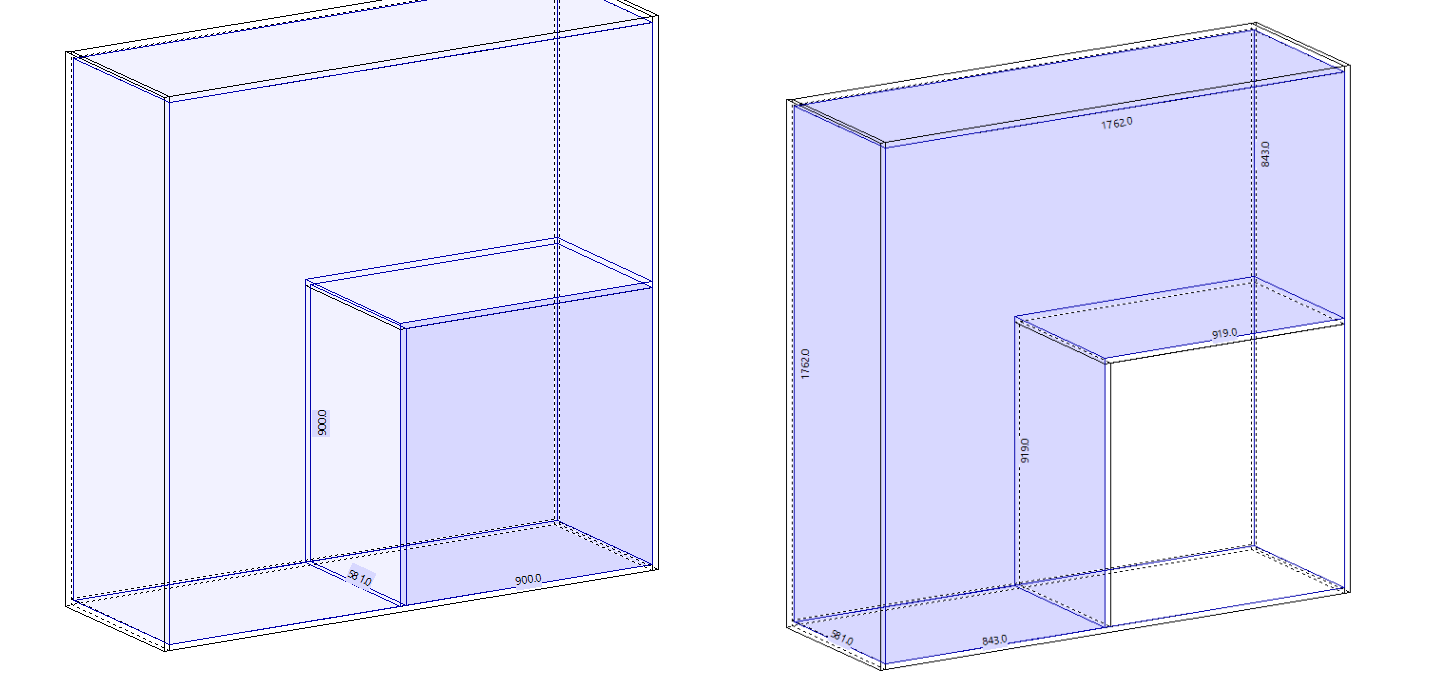

It will show dimensions for the zone that is selected:
Regards, Isaac
Full
March 10, 2025
Offline
I was not aware of the display options. That can work for now. Thanks 🙂
Any similar solution for the two dimensions for zones with inner casing getting merged?
Regards,
Anup
Moderator
January 20, 2017
Offline
I’m afraid this cannot be done automatically. If you wish to display these dimensions on your drawings, you will need to add them manually, as described in the previous link under the ‘Display options’ section
All the best, Alex
Full
March 10, 2025
Offline
Hey Alex,
While the dimensions can be viewed on the screen by using horizontal / vertical measure, or even if you click in the drawer zone, this data is not available in the drawing. So the workshop does not get this data when required. Please guide about how have this in the prints automatically
Regards,
Anup
Moderator
January 20, 2017
Offline
Hi,
There’s no problem, the permanent dimensions refer to the zone/display area dimensions.
For the drawer dimensions, you need to use the measuring tool.
>The measuring tool and dimensioned plans
Kind regards, Alex
Full
March 10, 2025
Offline
Please help for following issues observed with dimensions

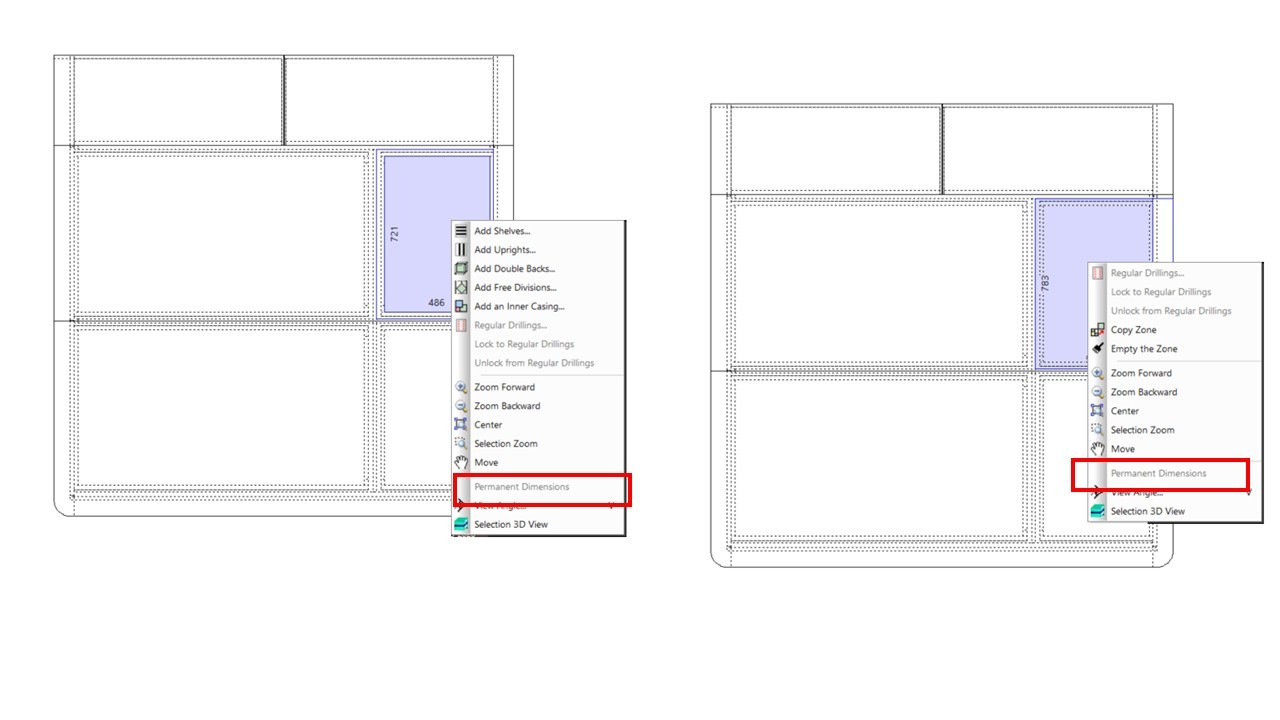

- There is no option to display / print dimensions in the drawer

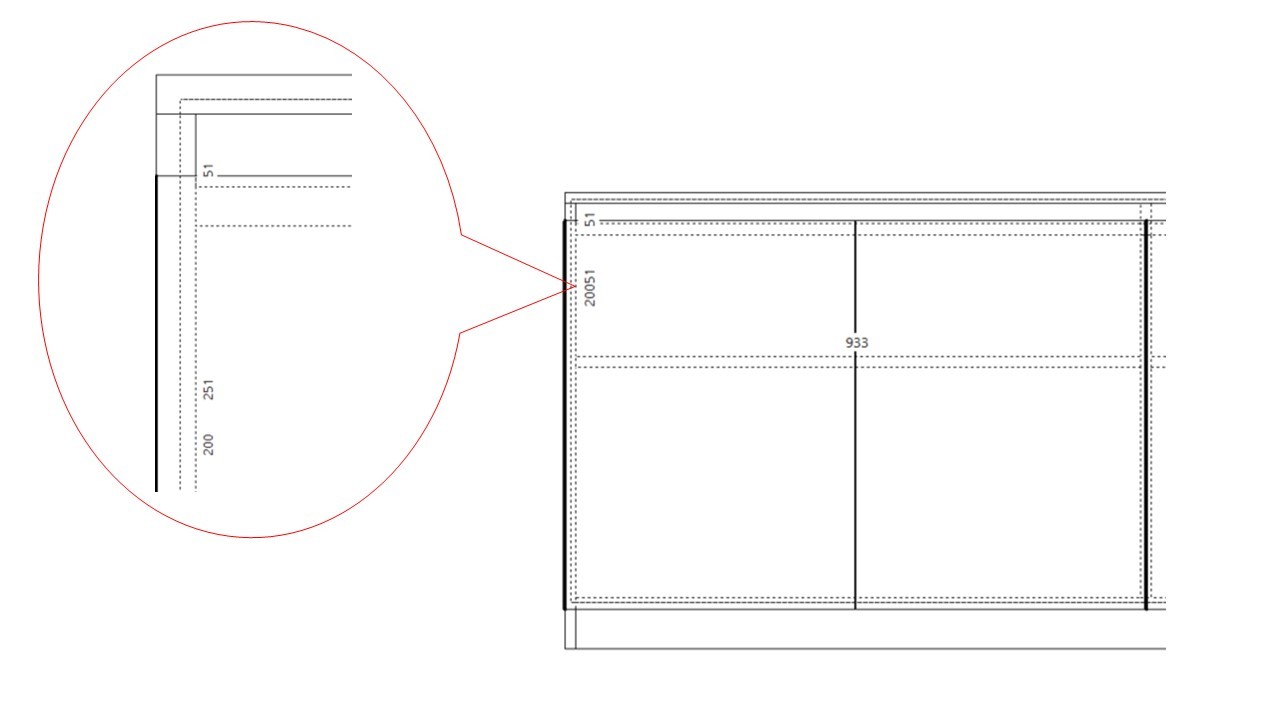

- In a zone where there is an inner casing, the 2 dimensions – total, and excluding the inner dimensions get mixed and show a wierd output. While one can zoom in on the screen, the print shows the two dimensions merged into one
