Document Dimensions
Avatar
Isaac

Moderator
Forum Posts: 1663
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
4
April 13, 2026 - 8:36 am
sp_Permalink sp_Print sp_EditHistory

Hello Zaheer,

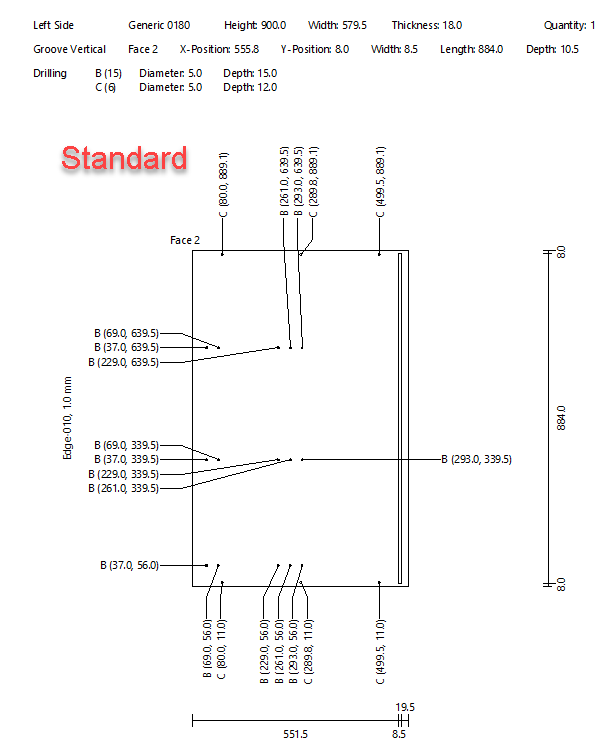

Normally, dimensions are taken from the bottom left corner of a component for individual tooling’s.

2026-04-13_08-28-27.PNGImage Enlarger

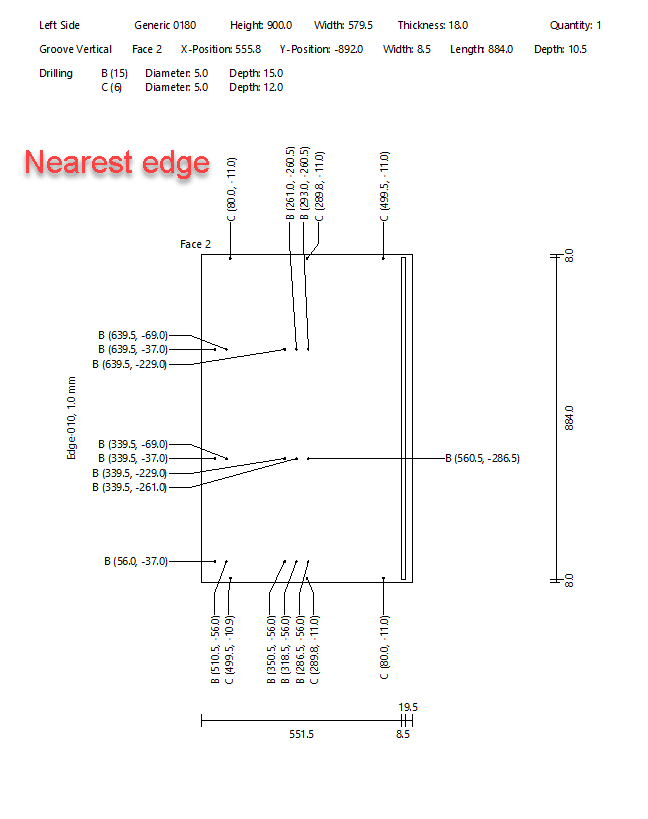

You can change the reference for this by selecting the nearest edge instead, showcasing all drillings from the closest edge of the tooling, rather then the fixed point above. Note, this only changes the reference for left to right, or top to bottom, not both at a single time.

2026-04-13_08-29-09.PNGImage Enlarger

Regards, Isaac

sp_PlupAttachments Attachments
Avatar
Zaheer Abbas
Member

Full
Forum Posts: 184
Member Since:
May 5, 2022
sp_UserOfflineSmall Offline
3
April 13, 2026 - 8:03 am
sp_Permalink sp_Print

Can you explain the difference between each one, please?

Avatar
Isaac

Moderator
Forum Posts: 1663
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
March 25, 2026 - 9:55 am
sp_Permalink sp_Print

Hello Zaheer,

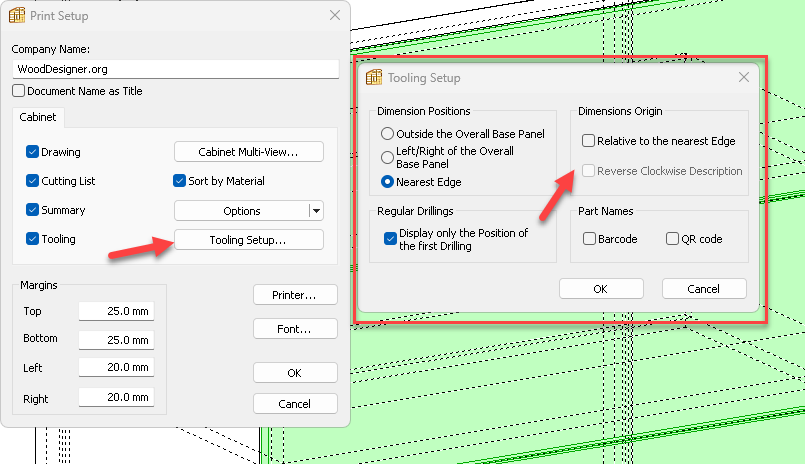

The only options for adjusting these dimensions are in your Tooling Setup. See the following image:

2026-03-25_09-54-17.PNGImage Enlarger

Regards, Isaac

sp_PlupAttachments Attachments
Avatar
Zaheer Abbas
Member

Full
Forum Posts: 184
Member Since:
May 5, 2022
sp_UserOfflineSmall Offline
1
March 25, 2026 - 9:06 am
sp_Permalink sp_Print

Hello, I noticed that in print preview the drills’ dimensions are taken based on the bottom left corner (or nearest corner). Can we fix them to be taken from the top right corner?
