DRILLING
Avatar
Isaac

Forum Posts: 697
Subscriber Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
May 8, 2025 - 8:03 am
sp_Permalink sp_Print

Hi Ilie,

It looks to me like you need to adjust your rule. The rule that your hardware is following can either reference a joints’ Overpassing Panel, Underpassing Panel, or the Internal Zone associated with the joint.

If you send me the cabinet file that you are working with, I will make a video and show you how this can be adjusted.

Regards,

Isaac

Avatar
Ilie Mihail

Forum Posts: 11
Subscriber Since:
March 31, 2025
sp_UserOfflineSmall Offline
1
May 7, 2025 - 1:41 pm
sp_Permalink sp_Print

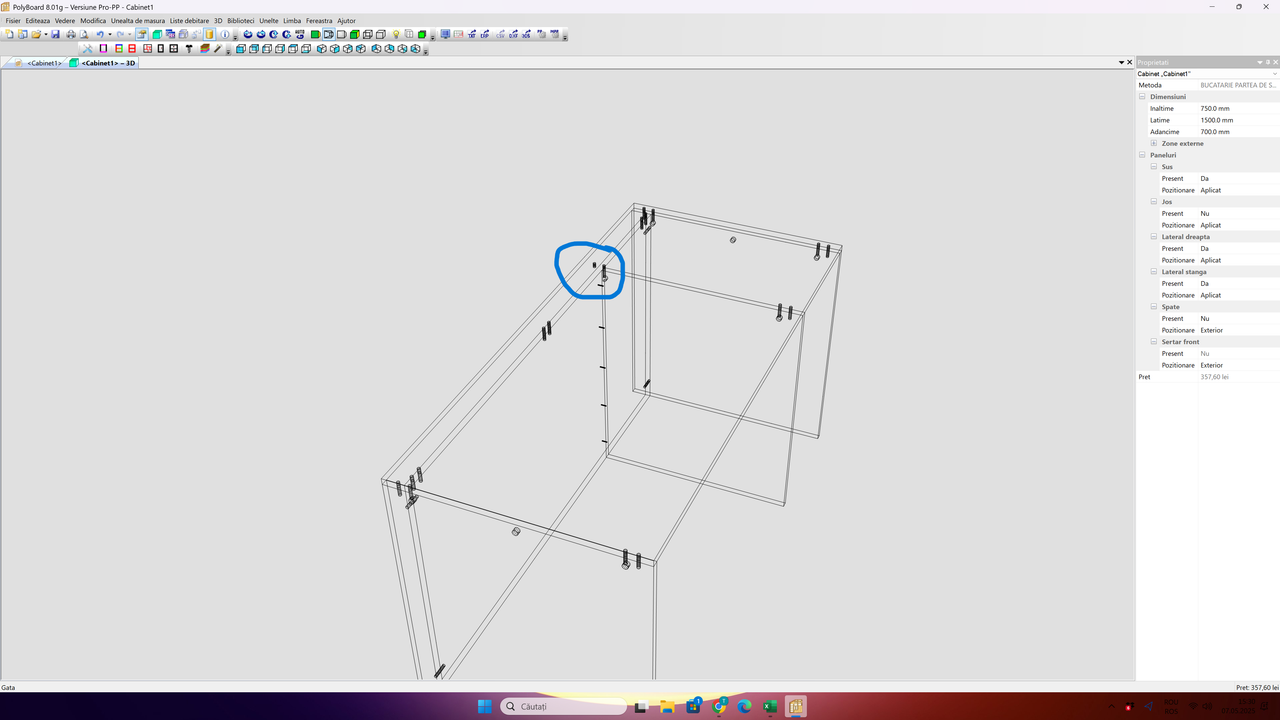

https://i.postimg.cc/j5ct95pM/…..153010.png

In the picture I posted, the vertical element is not drilling correctly, normally it should not be guided by the size of the piece?
There is a double back that I removed 50 from the back
