Thanks Isaac.
Looks like it does the job, but I’ll need a little more testing and tweaking.
Thanks
Dean
Full
September 1, 2022
Offline
Hi folks,

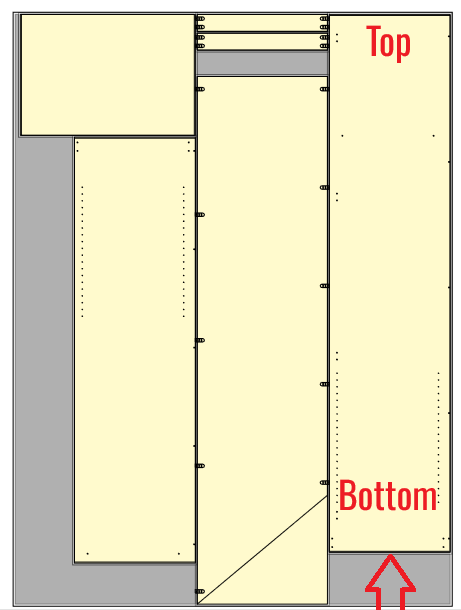

While this thread is still active, could I ask about positioning of oversizing? I don’t remember this doing this before, by my Polyboard now seems to be adding oversizing equally to all sides. For fillers and such this is not really a problem as there are no fixings, however on unit side panels (for example angled units) this is also sharing the oversizing when this should only be at the top. Please see attached for Optinest result example.
Regards
Dean
Full
September 1, 2022
Offline
Seems a bit bizarre treating oversizing and angle cutoffs the same but not to worry, as long as I know I can work round it.
Regards
Dean
Moderator
March 25, 2024
Offline
Dean,
This is correct. Oversizing will need to be added manually in VCarve or OptiNest if it is turned off.
Regards,
Isaac
Full
September 1, 2022
Offline
I see… So I think the options are
1) Have oversizing on… This unfortuntely also squares off angle/non rectangular shapes for optimising, wasting that material.
2) Turn oversizing off… Cuts become more material efficient, however manual oversizing would need to be done on Optinest or vCarve.
Do I have the right of it?
Regards
Dean
Moderator
March 25, 2024
Offline
Hi Dean,
The oversizing is always referenced from the Overall Panel, thus you do get the overall panel on your components now on the import to OptiNest.
If you want to turn this off reference the video I sent to you below, on the 6th March, and do the opposite process to how we turned these on.
Let me know how this goes,
Isaac
Full
September 1, 2022
Offline
Hi Isaac,#
Hope you are well.. Since making these changes it appears that the OVERSIZING is being optimised even on angled panels. This isnt actually oversizing, and I would like these shapes to optimise again. Seems there is always a trade off. Can this be switched off as it is quite a waste of material. Please see below;
Moderator
March 25, 2024
Offline
Hi Dean,
I have sent you an email.
Regards,
Isaac
Full
September 1, 2022
Offline
Ok,
Well this oversizing has generated an issue. It seems to be duplicating vectors on top of each other within vCarve on the same layer. Any chance someone could call tomorrow so I could show you?
As I didnt see the stacked vectors within a layer, I destroyed most of a board today as it double cut it.
Regards
Dean
