Hi Dean,
There is no way to swap these, the oversizing is the Panel layer.
The 0 layer, this is nothing, a non-existent layer. This can be ignored or deleted.
Regards,
Isaac
Full
September 1, 2022
Offline
Is it possible to merge the oversizing with the outline layer, NOT the panel layer? Also, what is the 0 layer?
Regards
Dean
Full
September 1, 2022
Offline
Thanks Isaac. I will do this when I export to vCarve.
Regards
Dean
Moderator
March 25, 2024
Offline
Hi Dean,
Correct, you will see both layers exported. This is important if you are also exporting other components that do not have oversizing.

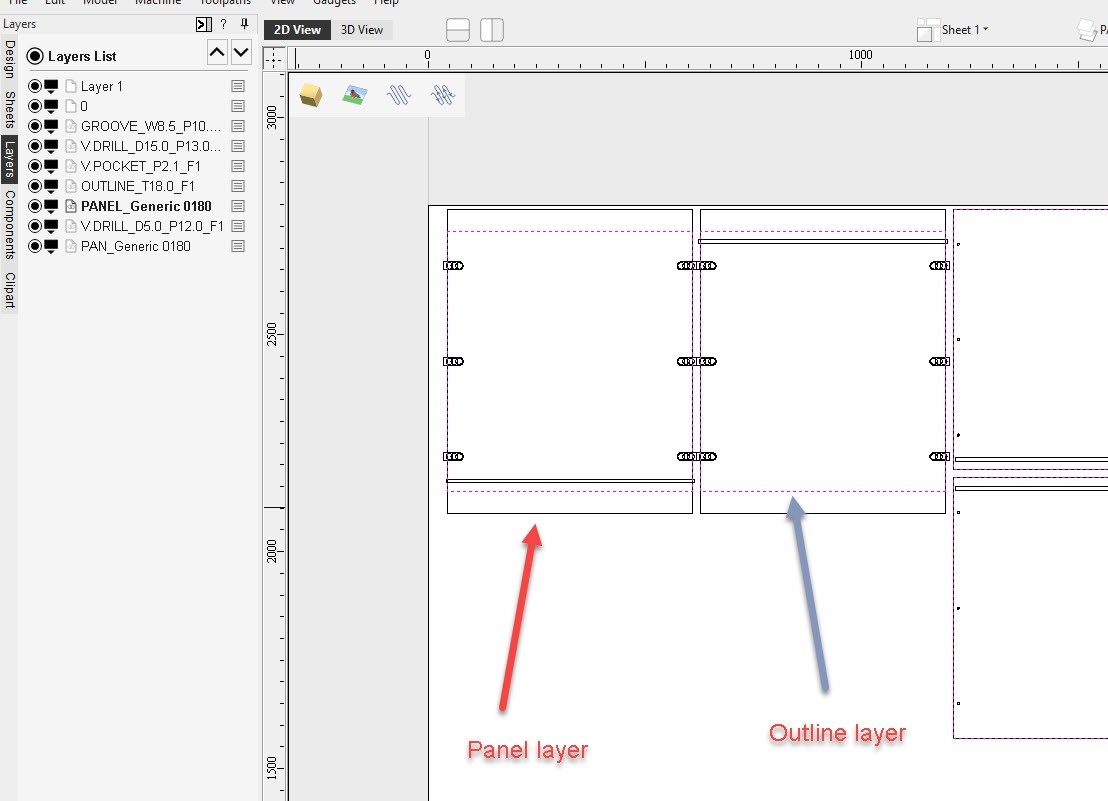

See the attached image, I recommend manually selecting and deleting the layer which you don’t need.
Regards,
Isaac
Full
September 1, 2022
Offline
Thanks Isaac,
I tried both options, and the oversizing did export. however…
Option 1 – Merges the Outline with the Panel layer on the DXF. This means I cant unselect the full panel outline from the outline on vCarve.
Option 2 – Merges the Oversizing with the Panel layer on the DXF. This means that I cannot unselect the full panel without removing the oversizing on vCarve.
I’m presuming there is no way of not exporting the ORIGINAL size outline before the oversize?
Regards
Dean
Moderator
March 25, 2024
Offline
Hi Dean,
See the attached video:
[Permission to view this media is denied]
Let me know how this goes.
Regards,
Isaac
Full
September 1, 2022
Offline

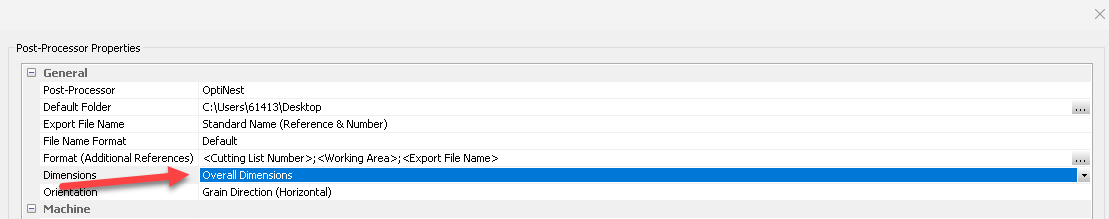

Yes this is set to Overall but still doesnt export oversizing.
Regards
Dean
