Fitting links
Avatar
Björn S
Member

Full
Forum Posts: 3
Member Since:
March 30, 2026
sp_UserOfflineSmall Offline
5
April 23, 2026 - 1:26 pm
sp_Permalink sp_Print

Thank you very much Isaac!

Clear instruction how to solve this.

Avatar
Isaac

Moderator
Forum Posts: 1388
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
4
April 23, 2026 - 12:42 pm
sp_Permalink sp_Print

Hello,

See the following video:

Regards, Isaac

Avatar
Björn S
Member

Full
Forum Posts: 3
Member Since:
March 30, 2026
sp_UserOfflineSmall Offline
3
April 23, 2026 - 9:20 am
sp_Permalink sp_Print

Hello Isaac,

I have attached the file.

Thanks!

Avatar
Isaac

Moderator
Forum Posts: 1388
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
April 23, 2026 - 9:14 am
sp_Permalink sp_Print

Hello Bjorn,

Can you please send me your cabinet file?

I will review this in more detail.

Regards, Isaac

Avatar
Björn S
Member

Full
Forum Posts: 3
Member Since:
March 30, 2026
sp_UserOfflineSmall Offline
1
April 23, 2026 - 9:06 am
sp_Permalink sp_Print

Hi,

I am struggling with fittings in a cabinet.

Using the Häfele Matrix Box S. I can’t get the fittings in Side panel and drawer panel to line up.

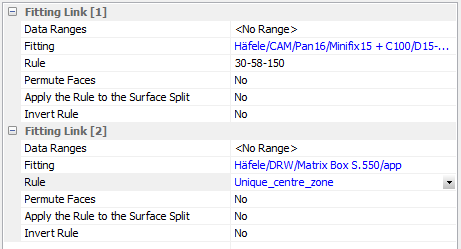

Attaching picture of settings in fitting links list.

What am I doing wrong?

Regards Björn

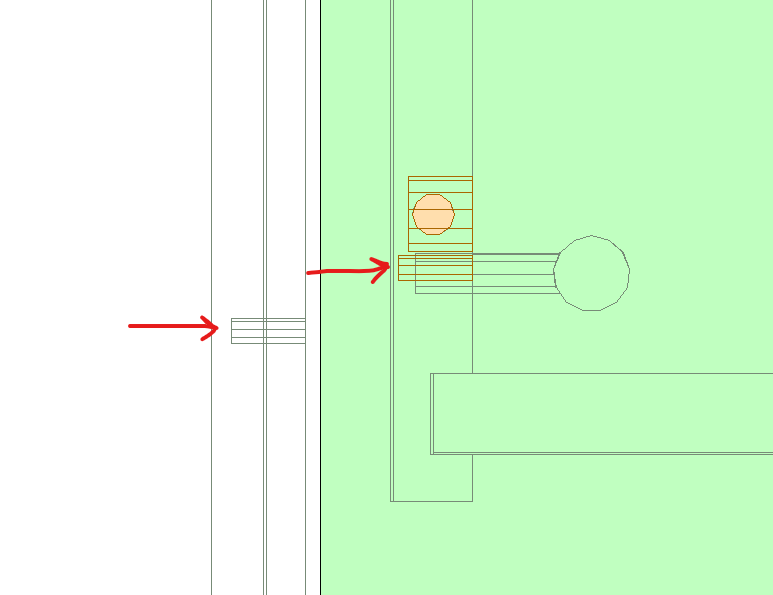

Häfele.pngImage Enlarger

Drawer.pngImage Enlarger

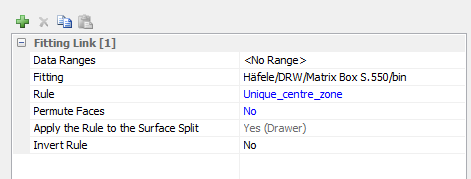

Side.pngImage Enlarger

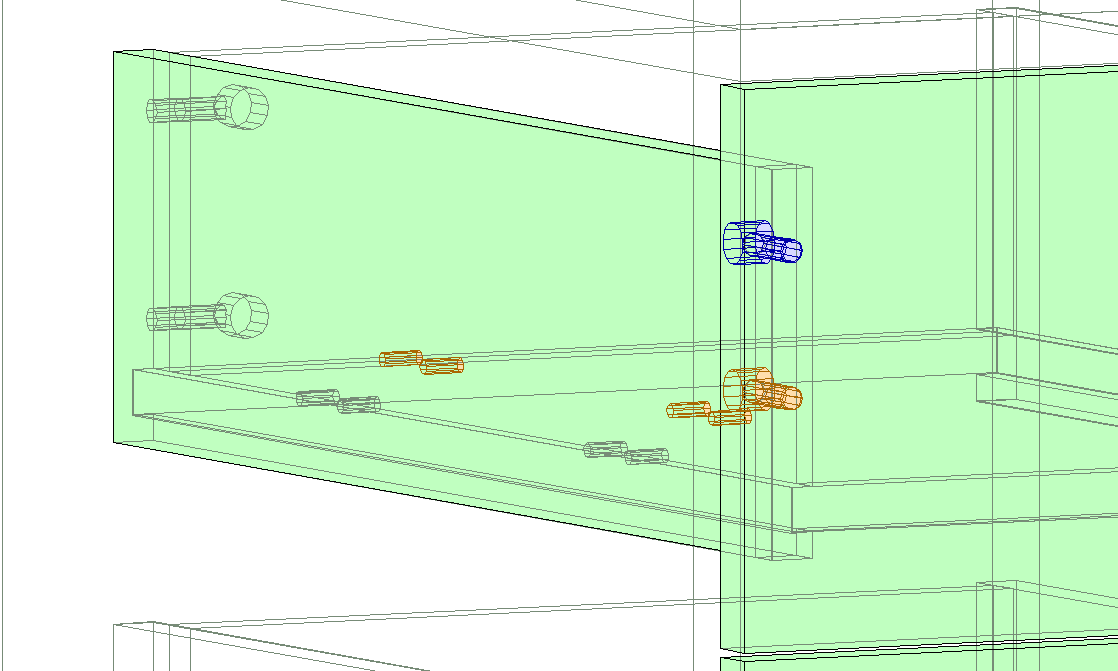

Side-view.pngImage Enlarger

sp_PlupAttachments Attachments
