Hi,
As Isaac showed in his video, the change of priority cuts the panel in two,
PolyBoard then automatically creates 2 links, one to the front and one to the rear (Top/Bottom depending on orientation).
2 options, deleted unwanted links manually or activate the option “Ignore links if one of the panels is Nil”
Better way is to change panel to Nil instead create recess
Cheers, Alex
Full
February 23, 2023
Offline
Hi,
Suggested option for fix, is working. Can you give me more explanation why?
Regards
Zack B.
Moderator
March 25, 2024
Offline
Hello Zack,
See the following image. Select this box in your fitting links, I believe this will resolve your problem.
Best regards,
Isaac
Full
February 23, 2023
Offline
Hi,
I sent you a video file in email, it is too big for upload here.
Thanks
Zack B.
Full
February 23, 2023
Offline
Here is modified file, where I add crossbar orientation to be overpassing
Full
February 23, 2023
Offline
I can manually change same way you pointed, but nothing I can do if the fittings are preset.
Test file is attached
Zack B.
Moderator
March 25, 2024
Offline
Can you please send me a cabinet file?
I will investigate this further.
Regards,
Isaac
Full
February 23, 2023
Offline

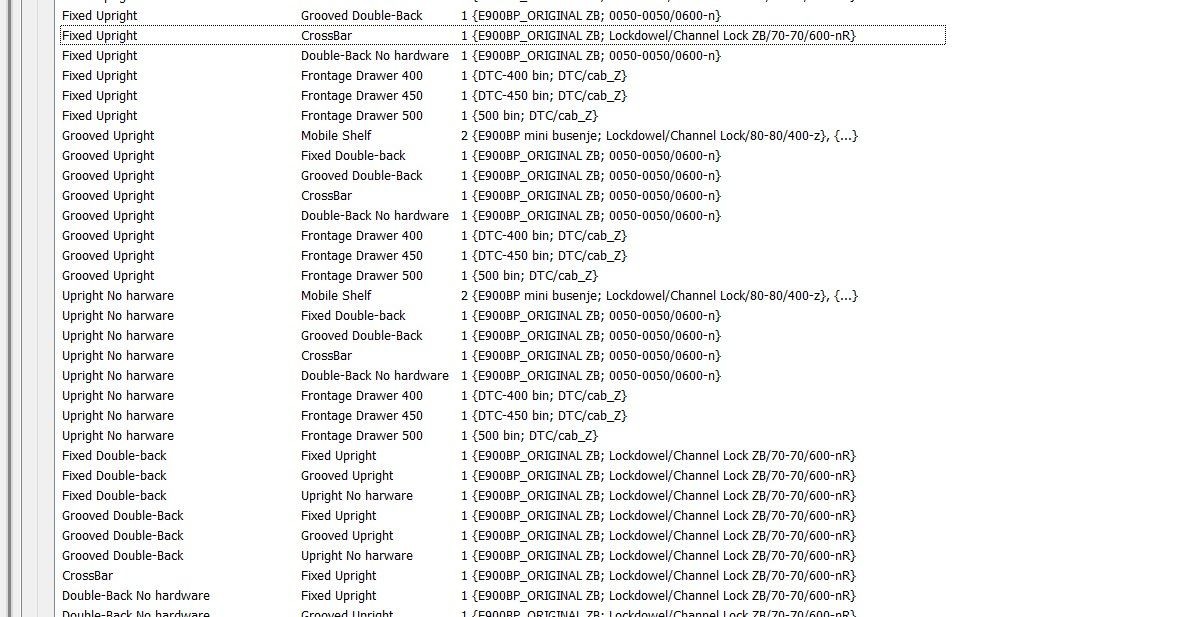

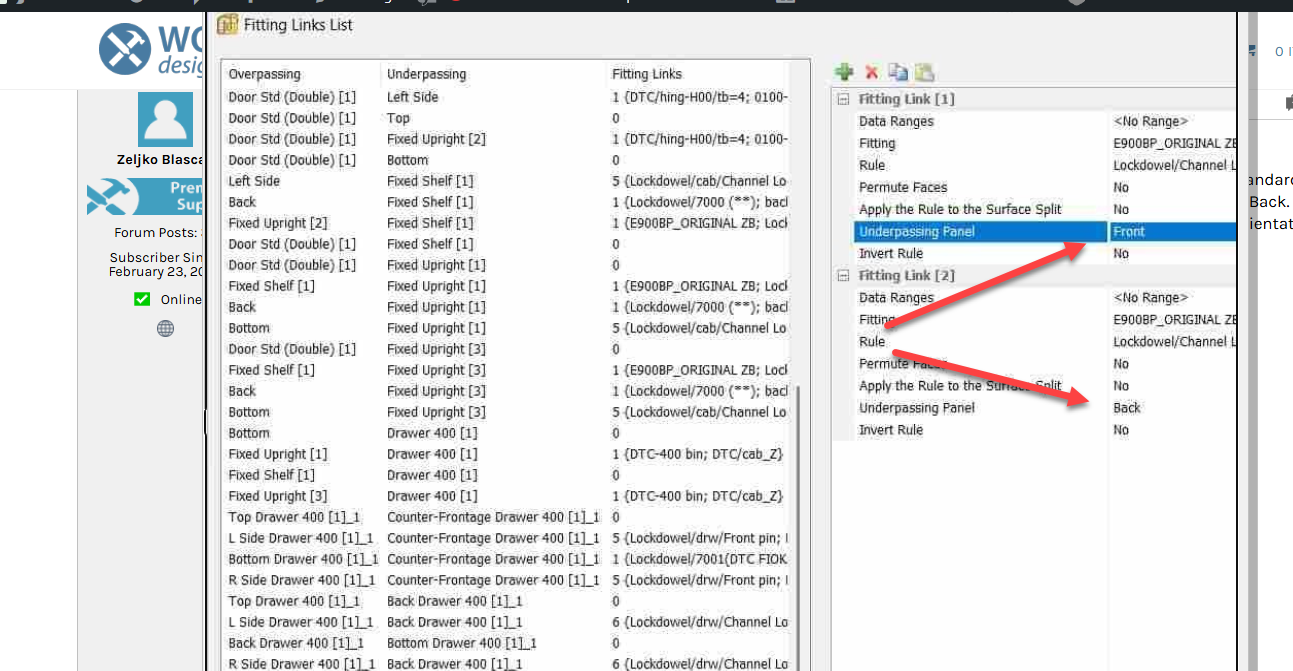

I checked my Fitting links and I don’t have any duplicates. By default Crossbar or Doble back is always underpassing, and fitting links are working just fine. But if I change the orientation for crossbar to become Overpassing to the Fixed upright, software apply both fitting links at the same time. Examples are added as pictures. Also I added Fitting links snapshot
Thanks
Zack B.
Moderator
March 25, 2024
Offline
Hello Zack,
Under further investigation, we have spotted your problem.
See the following image. When you change the panel priorities as seen here, PolyBoard will automatically double the fittings. Dis-regard my previous message, this has nothing to do with your sub methods.
Let me know if you have any further questions.
Best regards,
Isaac
