Gable Chamfers
Avatar
dermotcoll
Member

Full
Forum Posts: 40
Member Since:
August 29, 2024
sp_UserOfflineSmall Offline
5
August 7, 2025 - 1:20 pm
sp_Permalink sp_Print

Isaac



That did the trick.

Avatar
Isaac

Moderator
Forum Posts: 1441
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
4
August 7, 2025 - 12:39 pm
sp_Permalink sp_Print

Hello Dermot,

When completing this type of slope in PolyBoard, I would allow for the additional 15.2mm in the height of your cabinet.

I would add this to the total cabinet height.

Regards,

Isaac

Avatar
dermotcoll
Member

Full
Forum Posts: 40
Member Since:
August 29, 2024
sp_UserOfflineSmall Offline
3
August 7, 2025 - 12:26 pm
sp_Permalink sp_Print

Thanks Isaac

The height of the panel is now changed and I need it to be 2200 high but as removing the chamfer has clipped 15.2mm from the height and yet the overall cabinet height is saying 2200.

Avatar
Isaac

Moderator
Forum Posts: 1441
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
August 7, 2025 - 12:04 pm
sp_Permalink sp_Print

Hello Dermot,

See the attached video:

Regards,

Isaac

Avatar
dermotcoll
Member

Full
Forum Posts: 40
Member Since:
August 29, 2024
sp_UserOfflineSmall Offline
1
August 6, 2025 - 1:40 pm
sp_Permalink sp_Print

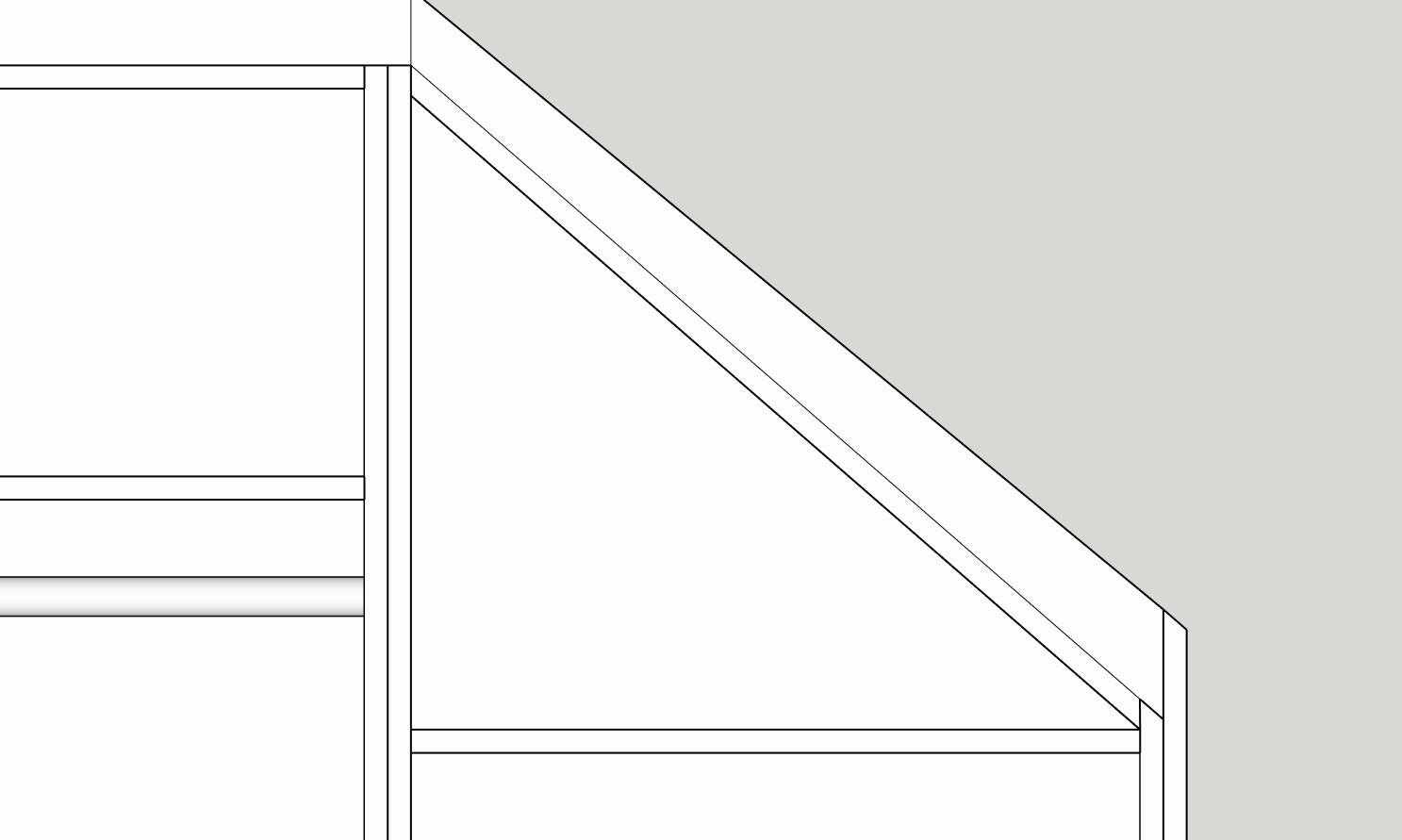

Chamfers on GabFront-angles.jpgImage Enlarger

How can I get polyboard to produce gable cuts like the attached picture. When I use slope on the top, it chamfers the gables on both sides. I need the left hand gable to be sqaure at the top and not chamfered. The right hand gable is chamfered perfectly and I want this to be like this for scribing my filler piece but the left hand gable needs to be sqaure.



Regards



Dermot
