Grain Direction In Drawers|Forum|WOOD DESIGNER
Full
April 22, 2024
Offline
Ah ok,
Perfect Isaac thank you again.
Moderator
March 25, 2024
Offline
Hello Keith,
You are not able to change grain direction in relation to a specific width, although you can with either the minimum or maximum capable dimension.
You can change grain direction with a sub-method when needed, see an example below:
[Permission to view this media is denied]

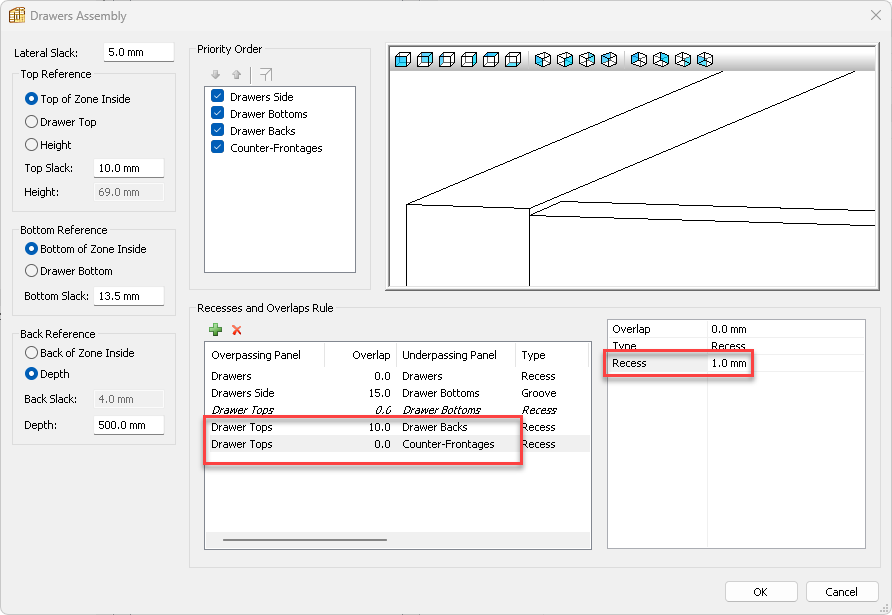

In regards to having the drawer front and back below the sides, set the following rules in your drawer assembly.
1. Overpassing drawer tops, underpassing drawer backs – 1mm recess
2. Overpassing drawer tops, underpassing drawer counter fronts – 1mm recess
See the following image:
Regards, Isaac
Full
April 22, 2024
Offline
Well Guys,
Hope you are all well.
In my drawer boxes the grain changes direction when the drawer gets to narrow.
Default grain direction setting is maximum capable dimension.
Id prefer it to be cabinet width on the drawer box bases specifically. can this be changed to be default, If so where ? or do I still need to do each drawer base individually.
Also is there a way to have my drawer box front and drawer back back 1mm lower than my drawer sides. Setting up as a default setting for ever more
Thank you.
