Hi John,
See the following example for nesting the 3 doors together on a sheet with a vertical grain.

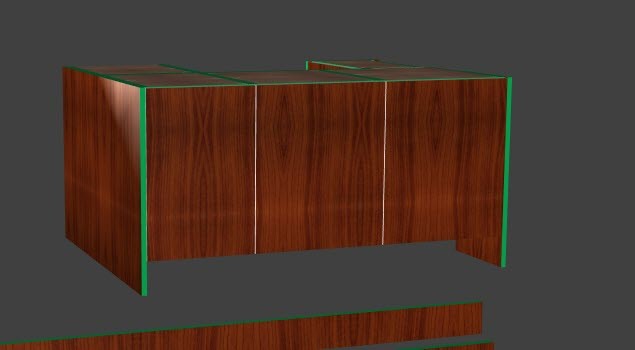

In OptiNest, open your optimization parameters and turn on parts grouping. While there is no specific PolyBoard feature that will grain match these separate doors, parts grouping will place similar components together. See the following image:

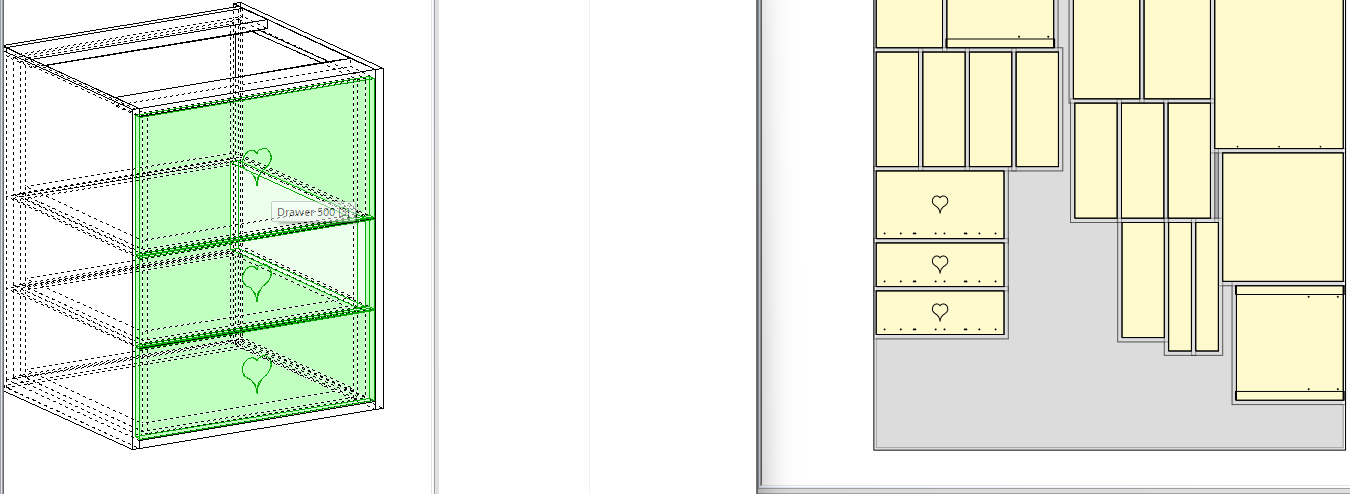

As you see in the next image, this should place like parts together on your optimization.
Regards,
Isaac
Full
January 29, 2025
Offline
Furthermore, how would I then check that all the grain is in the correct direction once nested in Opti-Nest? Is there a way of seeing the boards with the grain to double check? Before going to V-Carve?
Full
January 29, 2025
Offline
Good evening following on from this, I am currently working on a job where were making the frontal from a grained material, how can I keep the grain continuity throughout these frontals? the Drawer fronts are all good and all the end panels its fine. the 3 frontals on the back id like to match, but unsure how to do it across multiple units.
Moderator
January 20, 2017
Offline
Hi,
Sorry can you please join our PolyBoard cabinet to have a look?

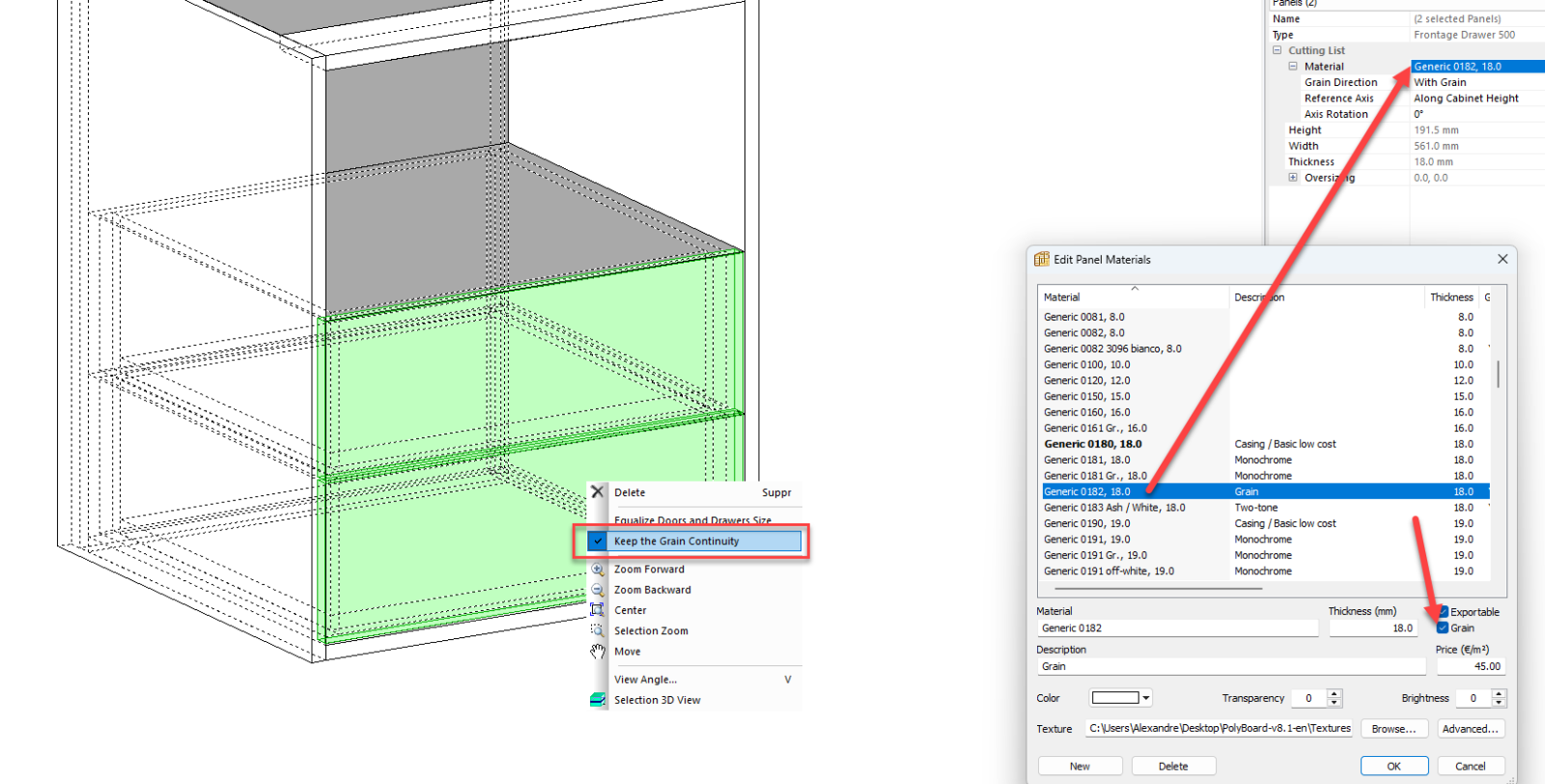

To activate grain continuity, you should use same material with grain
then select frontage by holding “Shift” and made right click to select “keep grain continuity”
it will be sent to OptiNest export
Hope that’s helpful, Alex
Full
January 29, 2025
Offline
Looking to run out these units in the next few days, inside the units there are build in drawers. however when I go to nest them in Opti-Nest the drawer frontals don’t line up with each other. I would like all the frontals to have the grain to match on the when you open the door. I have tried ‘Grouping all identical items’ and that doesn’t seem to work.
Any help would be great,
John Walbridge
