groove slack for peanut
Avatar
Alex
FRANCE

Moderator
Forum Posts: 2128
Member Since:
January 20, 2017
sp_UserOfflineSmall Offline
2
September 18, 2023 - 7:56 am
sp_Permalink sp_Print

Hi,



You can’t make exceptions with depth slack,

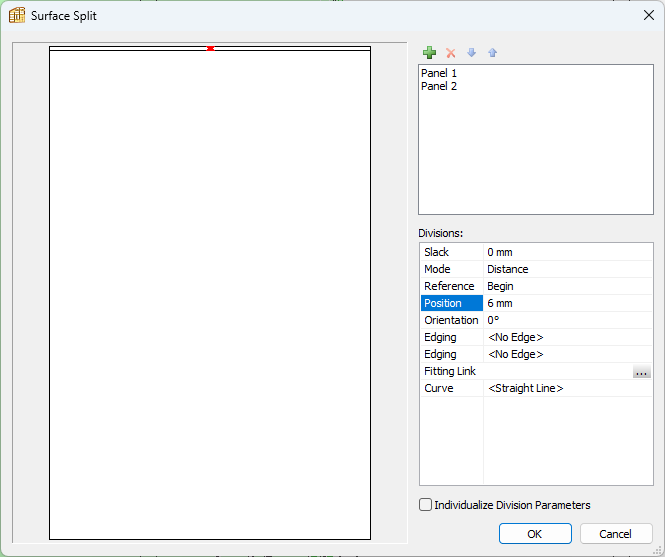

but you can do Surface split… from top at 6mm (1mm slack)

ss.pngImage Enlarger

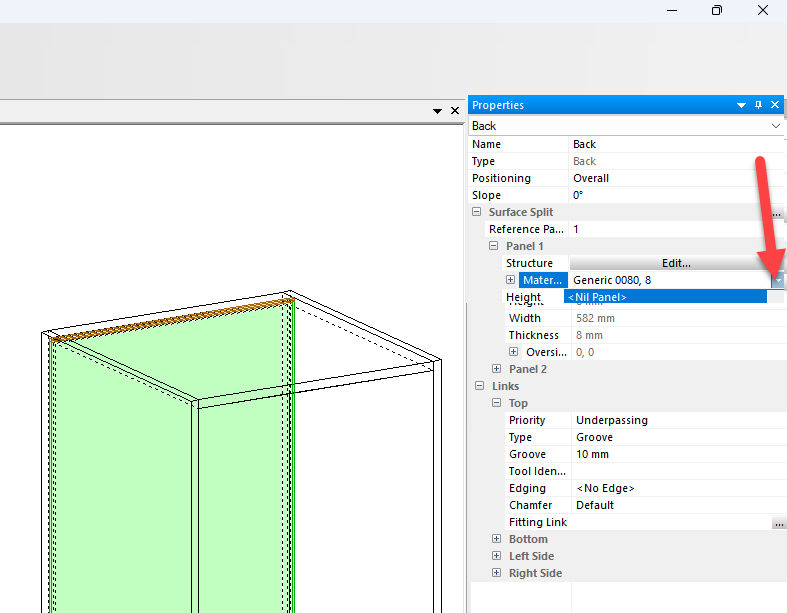

and set this 6mm panel as nil,

nil-pan.pngImage Enlarger


this can be save into structure libs, and applied to all back, from materials sub-method, tab “Structure”

Cheers, Alex

sp_PlupAttachments Attachments
Avatar
Zaheer Abbas
Member

Full
Forum Posts: 178
Member Since:
May 5, 2022
sp_UserOfflineSmall Offline
1
September 18, 2023 - 6:23 am
sp_Permalink sp_Print

hello,

If I have a cabinet with a back engraved from 4 sides, and I want to use peanut connectors, how can I make the groove slack only from one side ( top side) bigger than the others?

(the groove slack from 3 sides should be 1mm and from 1 side 7mm).

I tried to do it in the groove and oversizing submethod but I couldn’t do an exception for one side only.
