handless drawer fronts|Forum|WOOD DESIGNER
Full
May 12, 2020
Offline
Hi Isaac
Thats no problem thanks for the video will look at it and cut a test piece
Caroline
Moderator
March 25, 2024
Offline
Hello Caroline,
Sorry that I haven’t seen your latest replies.
See the following video:
Regards, Isaac
Full
May 12, 2020
Offline
Thanks Alex for your reply, but can I get Isaac to send me on a video we will be using a 4mm bit in vcarve re my previous message that he answered
Thanks very much
Caroline
Moderator
January 20, 2017
Offline
Hi Brendan,
Sorry, Isaac is away and coming back tomorrow.
This is a classic profiling cut, so the radius of the corners will depend on the diameter of your tool.
Perhaps a support pack could be considered to help you use VCarve effectively.
Kind regards,
Alex
Full
May 12, 2020
Offline
Hi
Just wondering can i get a video sent re your last reply please
Thanks Caroline
Full
May 12, 2020
Offline
Hi
Is it possible to get a video by end of today please?
Thanks Caroline
Full
May 12, 2020
Offline
Hi Isaac
Can you send on a video on how to do this please would appreciate it
Thanks Caroline
Moderator
March 25, 2024
Offline
Hello Caroline,
Yes, I would draw a square over the handle cut out in VCarve and then add a perimeter tooling with the 4mm cutter.
Of course this will still be rounded, but only a 4mm round instead of the 12mm round.
Best regards, Isaac
Full
May 12, 2020
Offline
Hi Isaac

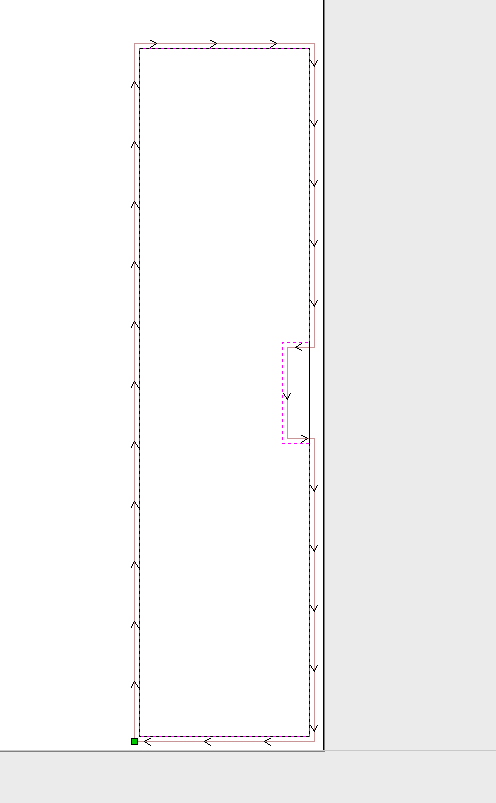

As you can see from the attached picture of drawer front that was cut on cnc the internal handle detail cut out was cut with the 12mm nesting bit but as you can see the corners are not square we want to achieve a square corner, we have a 4mm end mill and we think this would be sufficient to finish the corners to get them square
Can you advise on the process to do this? or do you have an alternative suggestion?
Thanks Caroline
Moderator
March 25, 2024
Offline
Hello Caroline,
You can cut this in VCarve as it is now, and it wont give you any problems. If you profile on the outside of your profiling line, it will cut the component and the handle cut out together.
Note, this will add the tool radius to any inside corners, such as on the handle cut out. If you want this squared, you will need to manually corner notch this post machining.
Regards, Isaac
