Hinging to a centre panel|Forum|WOOD DESIGNER
Full
September 1, 2022
Offline
Sorry I did not see this reply.. Wow thats quite a bit of work. I’ll take some time to review this when I get a spare half hour. Thanks for the vid.
Dean
Moderator
January 20, 2017
Offline
Hi Dean,
Please find explain and fitting you can import, please make test before final panel to be sure
[Subscribe to Premium Support to view this media]
Kind regards, Alex
Full
September 1, 2022
Offline
Hi folks,

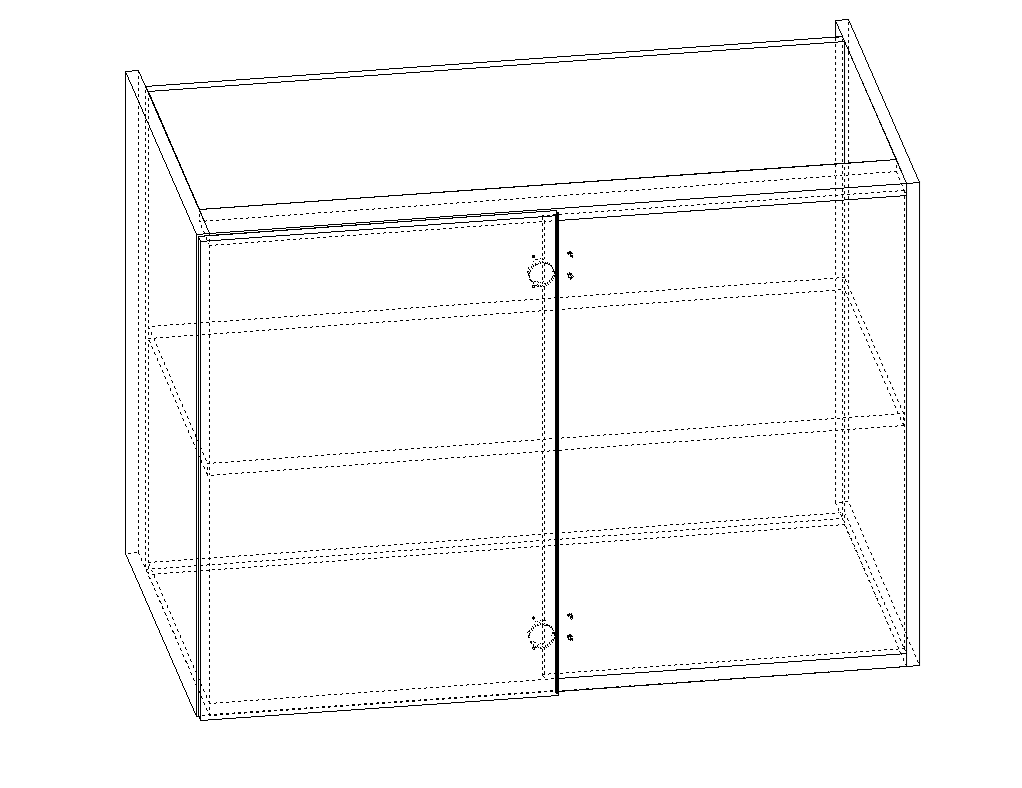

Bit of a tricky one. Please see attached picture with something I would LIKE to add to my fittings links list. At the moment I have added these using internal tooling on a single panel. The only issue with this is it does not export to vCarve as drilling, but wants to pocket them… even the little 3mm holes.
The hinge I am trying to add is this; [Subscribe to Premium Support to view this media]
Is there any way of either;
1) Adding this using Fittings Link? This is preferable, however I cannot seem to link the free division to the frontal.
2) Changing the preffered method of tooling from pocketing to drilling?
Regards
Dean
