Hello Emmanuel,

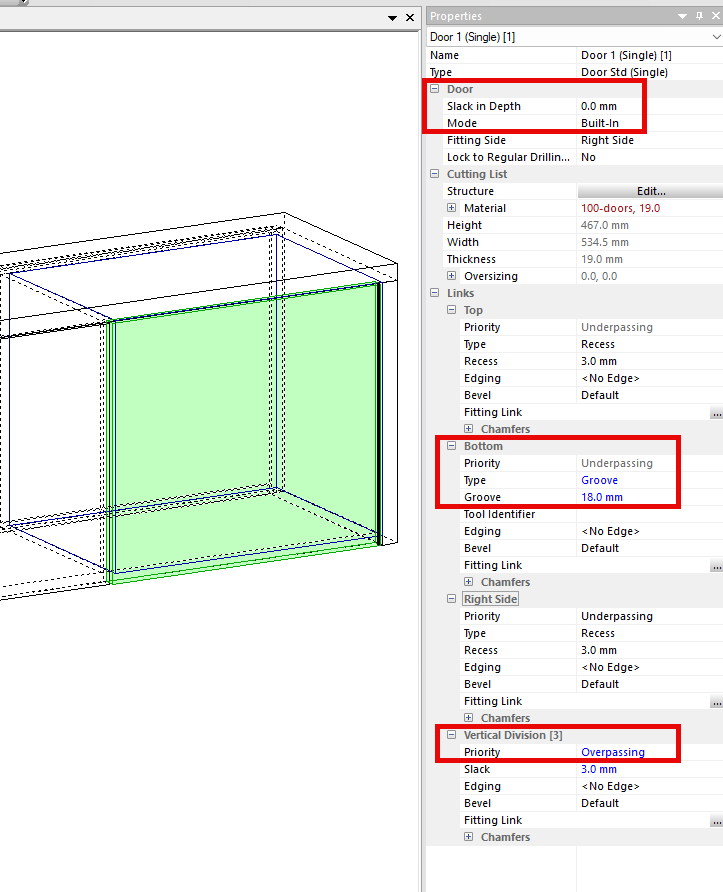

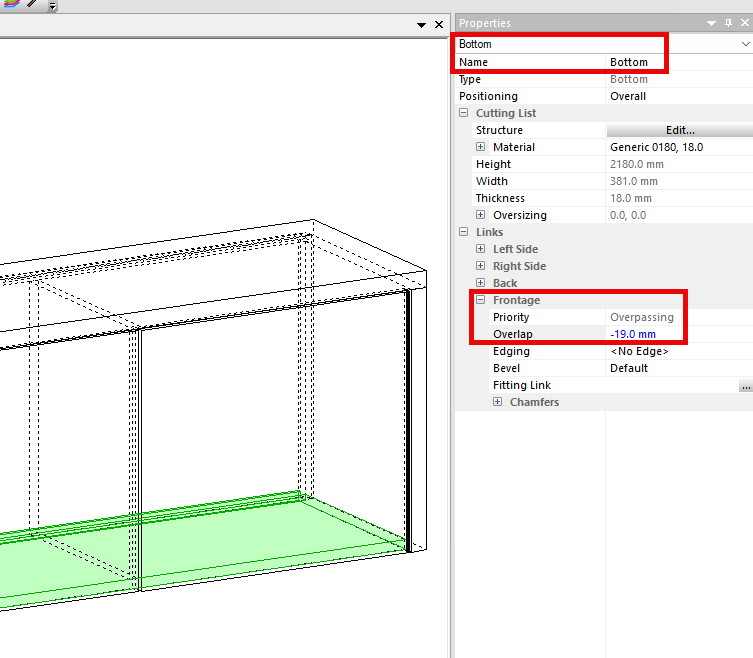

The only way I have managed to reach the design mentioned above is to add Built-In doors and to trick Polyboard that they are grooved into the bottom panel. But since the bottom panel it is recessed 19 mm (the thickness of the doors) there is no groove in the bottom panel.

This way the doors are built inside the top and side panels and overpass the bottom panel. For the uprights (intermediary panels) just select the doors and change the Priority to Overpassing.

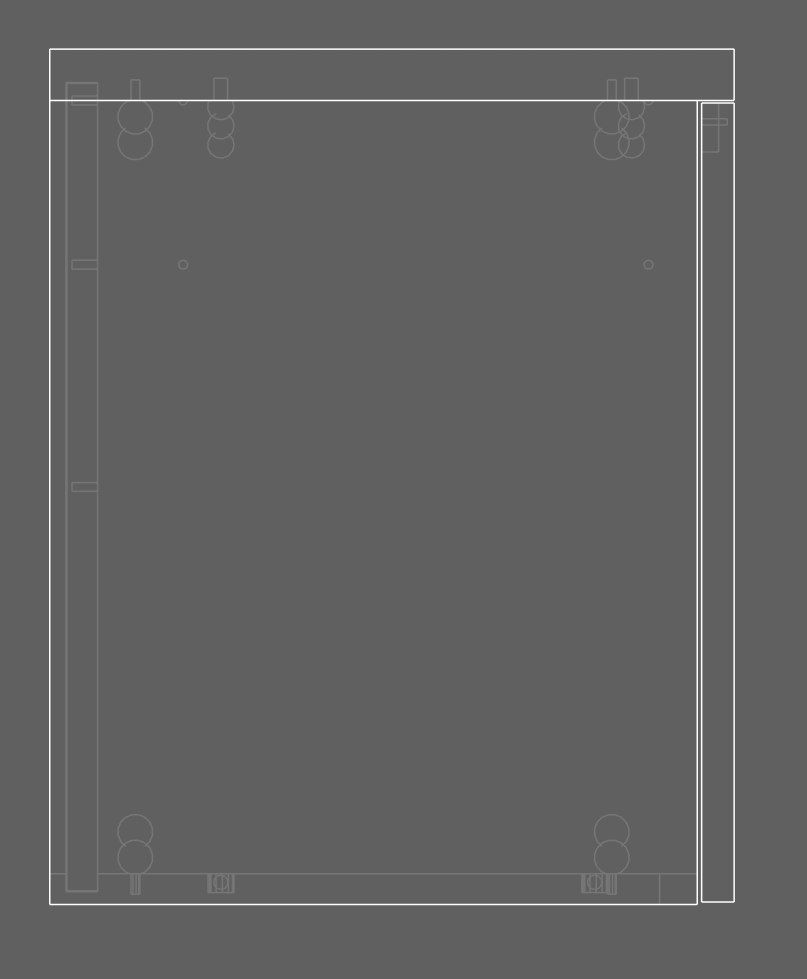

See the images below for more info:

Regards, Petru

Hello Emmanuel,

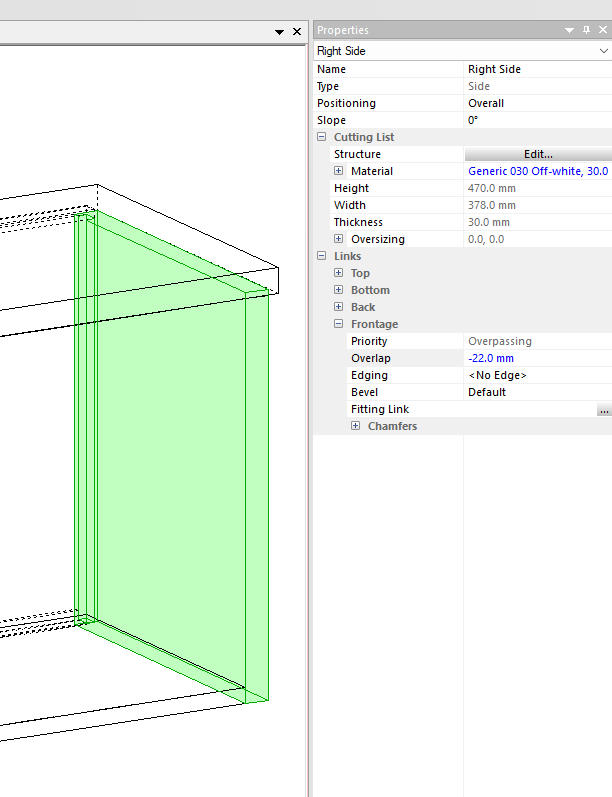

I have tried and applied a recess of -22 mm and it worked.

Nevertheless, if you just want to create a TV cabinet where the worktop overlaps the doors simply add a Nil shelf with a distance of 0 mm from the top for each zone between the sides and the uprights and then add a door that is “Applied Local“. This way the top will automatically overlap the door.

Let me know if that helped you with your project.

Regards, Petru
