incorrect cutting sizes given on angle cuts help|Forum|WOOD DESIGNER
Moderator
March 25, 2024
Offline
Hello Ben,

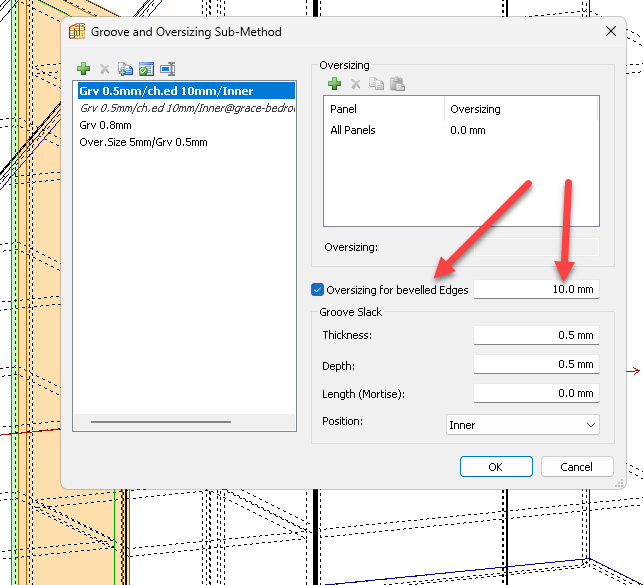

No problem. This setting is automatically adding 10mm of oversizing to any angled (chamfered) component. To remove this, you can change this value to 0mm, or just un-check the tick box for this setting.
This is for manufacturers who want additional oversizing for chamfered components only.
Regards, Isaac
Full
December 13, 2024
Offline
hi isaac thanks for this can you explain what exactly is the oversize i understand the groove side but why are some of the set method not just all 0.0 ? sorry if this is confusing im just trying to understand what the use for this is
Moderator
March 25, 2024
Offline
Hello Ben,

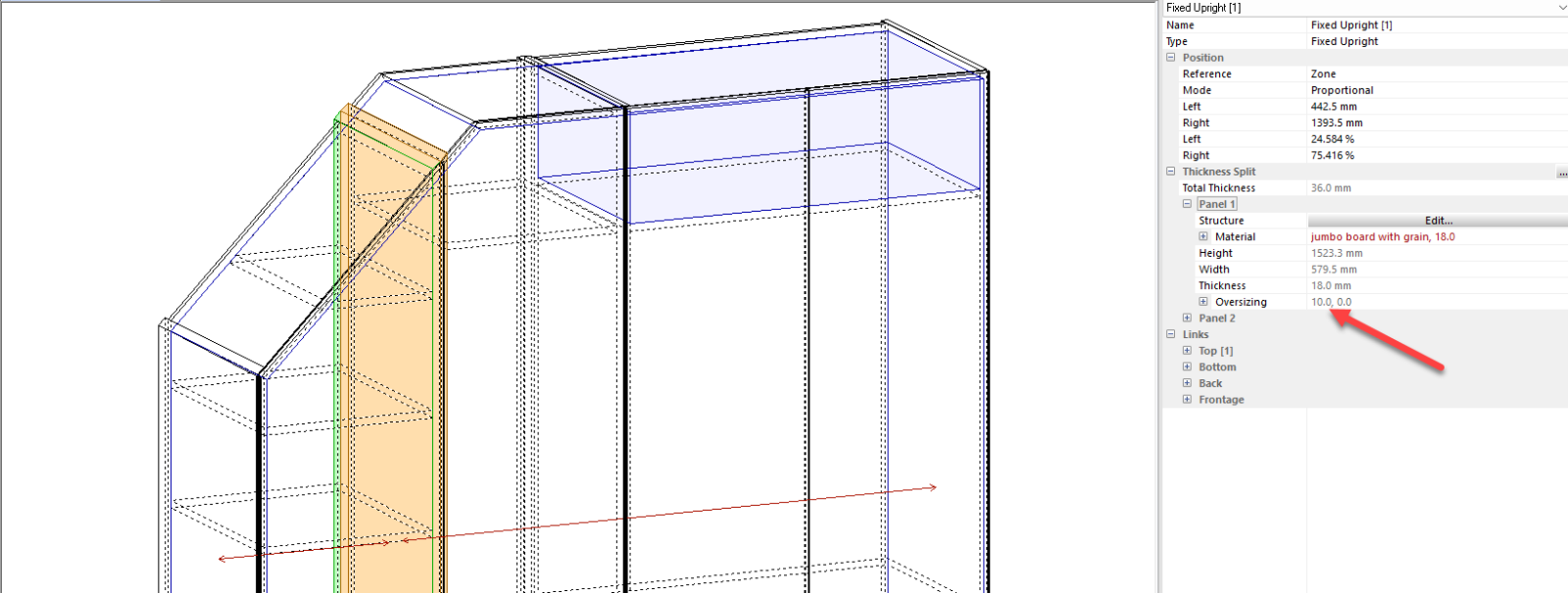

See the oversizing applied to the components.

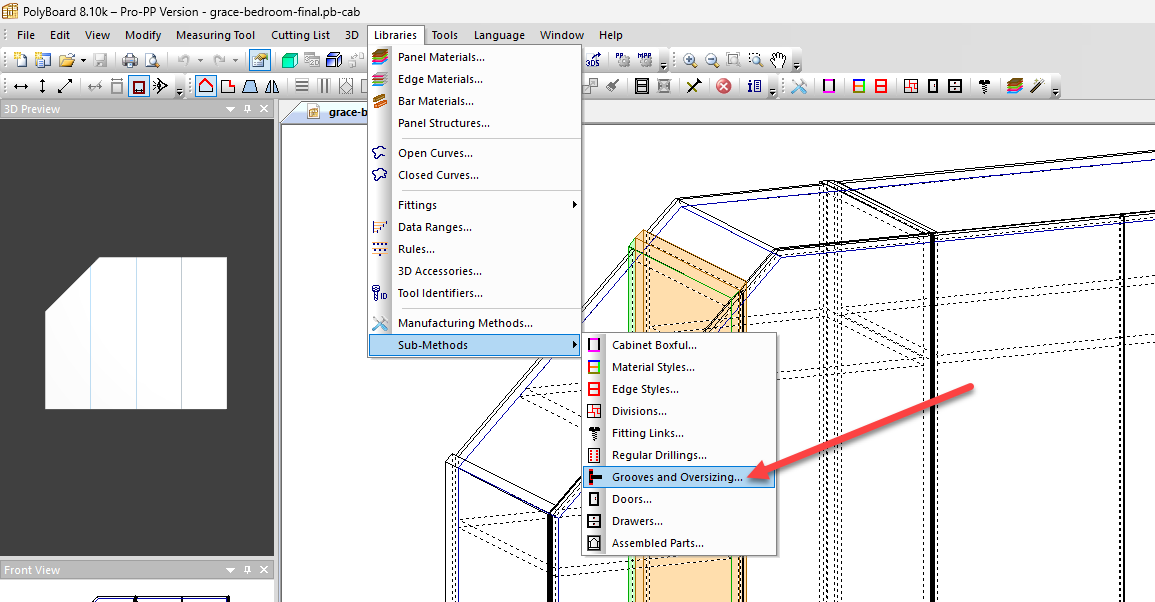

If you access your sub-method for grooves and oversizing, you have 10mm applied to all bevelled components.
Best regards, Isaac
Full
December 13, 2024
Offline
hi isaak i have just done this now
Moderator
March 25, 2024
Offline
Ben,

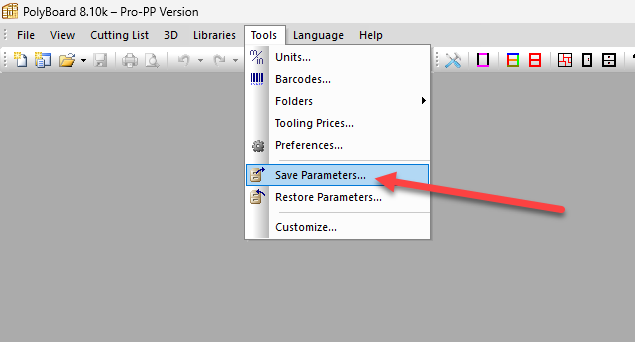

Your parameter file is found as follows:

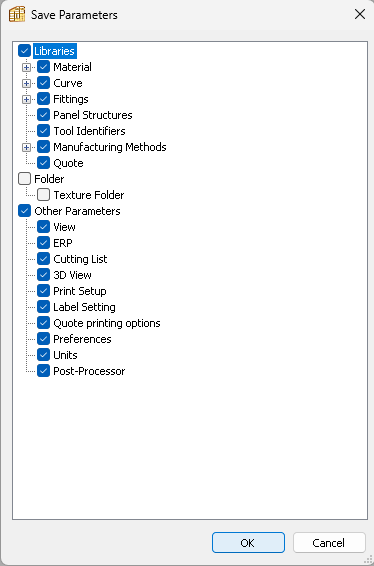

Please do not save your textures to the parameters file, as this is not needed and will only increase its size:

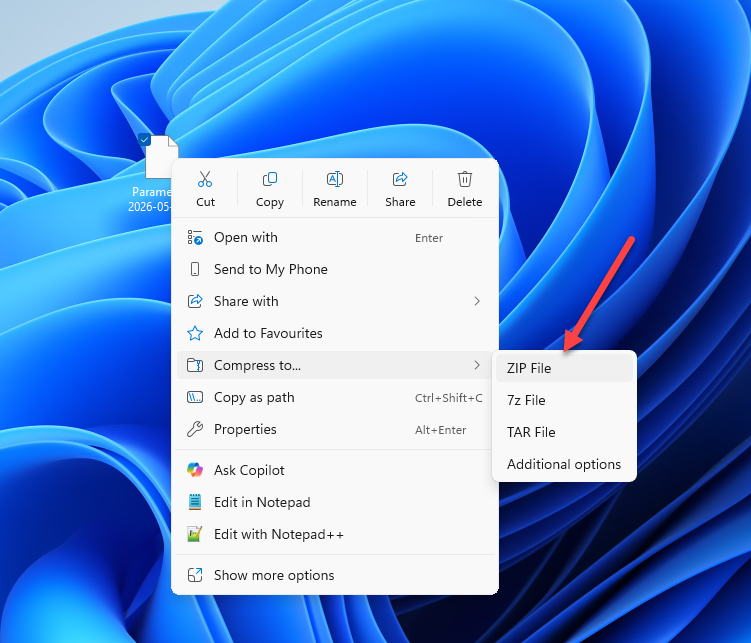

Finally, if it is still too big please compress the file to a zip folder and then upload to our file uploader:
Regards, Isaac
Full
December 13, 2024
Offline
its saying that the file is too big
Full
December 13, 2024
Offline
is this them isaac?
Full
December 13, 2024
Offline
what parameter file isaac?
Moderator
March 25, 2024
Offline
Hello Ben,
Can you please send me your parameter file as well? I will look at this for you.
Regards, Isaac
Full
December 13, 2024
Offline
hello i have noticed an error in the software which is causing problems on our builds
please have a look at angled top cuts on design attached. when you click on the angled top panel on the 1 upright on the design and look at the height on them on the properties you have panel 1 height 644.9mm and panel 2 119.3mm but when you go onto cutlist the measurements given for them are 654.9 panel 1 and 129.3 on panel 2.
please can you look into this for me as the software is built to help with this and is just causing a headache.
