Hello Hassan,
I am glad that this was sorted.
Regarding depth, what machining actions are you specifically wanting to limit the depth to?
Regards, Isaac
Full
May 14, 2025
Offline

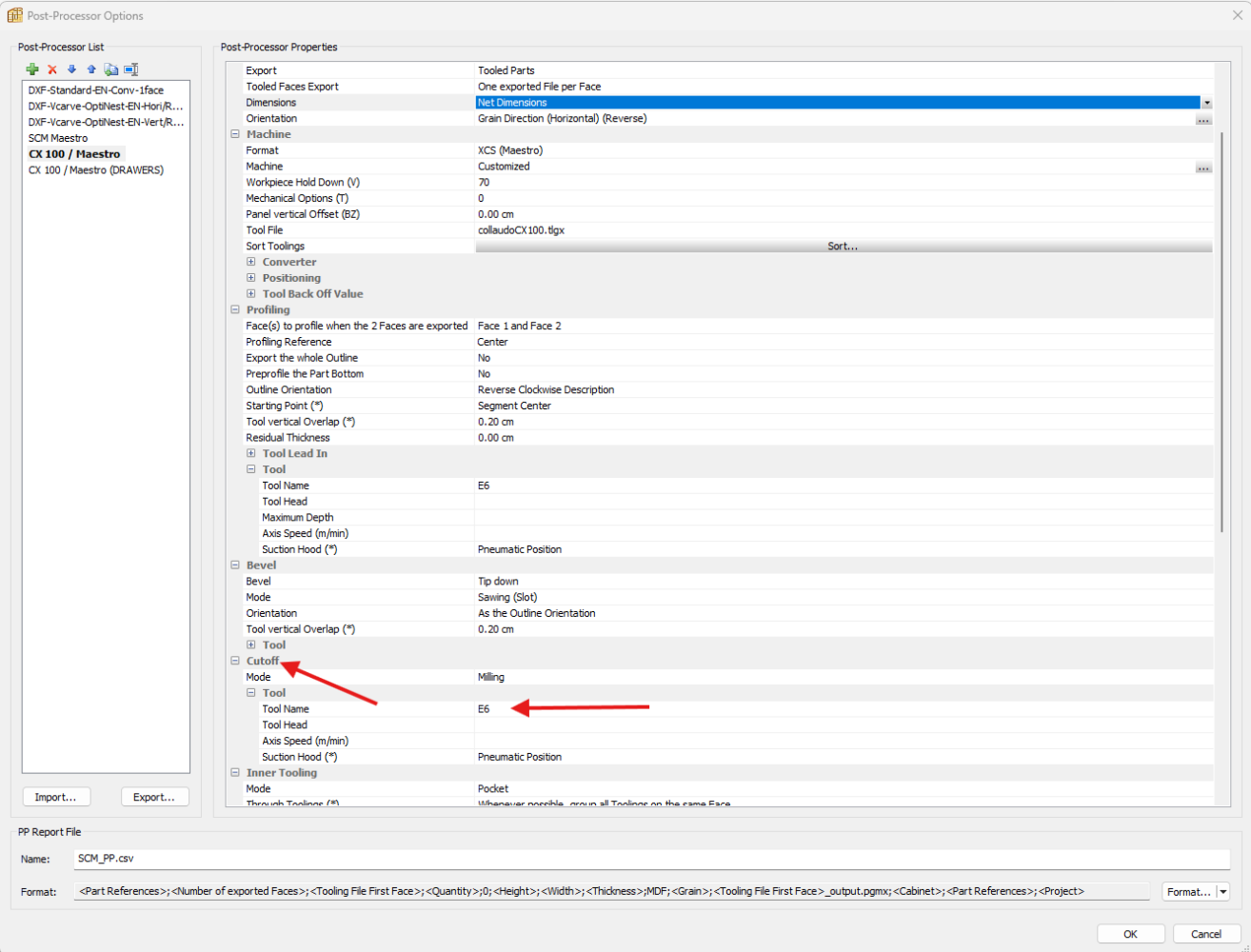

I have noticed that Cutoff tools name just needed to be changed and now it`s OK.
I just wonder if there is any thing to control the depth?
because the CX100 is a vertical machine so this small parts is blocking tha piece and clamp track, so i was thinking if i can control the depth so i can avoid this.
Regards.
Full
May 14, 2025
Offline
Hello again,
the issue of the rouned corner is fixed thankfully.
Now one issue is still remaining, which is the angle tooling, he file is not exported as PGMX.
Full
May 14, 2025
Offline
Hello,
Ok i will fix arcs orientation.
I was using 8.01t
Moderator
March 25, 2024
Offline
Hello Hassan,
1. Firstly, what version where you using before updating to version 8.02?

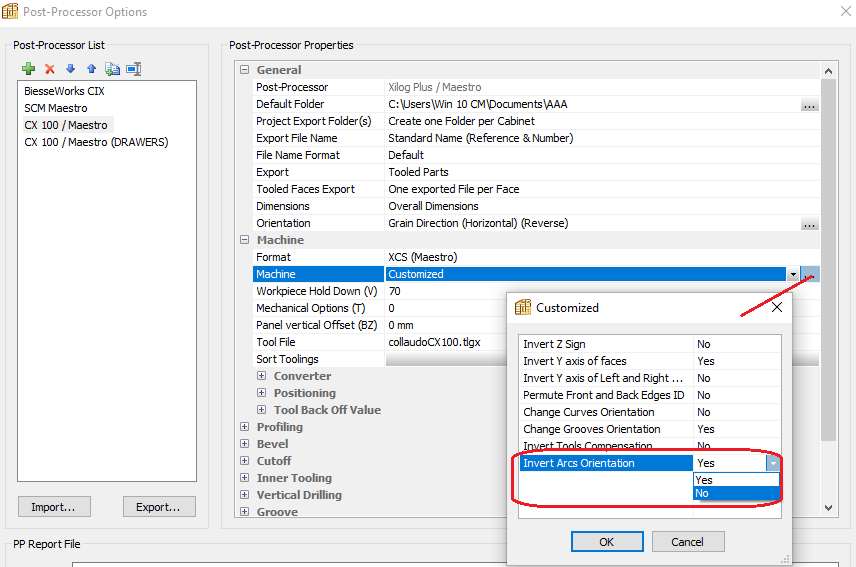

2. Please note that your machine has its arcs orientation inverted. Please set this to no, I believe that this should resolve your problem.
Let me know if this does not work.
Regards, Isaac
Moderator
March 25, 2024
Offline
Thank you for highlighting this Hassan.
I have forwarded this to the development team for evaluation. I will let you know when I receive more information.
Regards, Isaac
Full
May 14, 2025
Offline
the inner tooling is inverted ,to make it more clear, i will attach screenshot
NO. 1 is the expected result
No. 2 is the current result which is not what we want
for the angel tooling, it`s not exported at all, there is no PGMX file for it
Moderator
March 25, 2024
Offline
Thank you Hassan,
So to confirm, the inner tooling and angle tooling are mirroring themselves on the export?
Regards, Isaac
Full
May 14, 2025
Offline
Ok i have uploaded the required files
Please if you can also check the maked part in the attached screenshot iwill be thankfull
the part is not found in exported files because of the edge tooling
Moderator
March 25, 2024
Offline
Hassan,
Can you please send me the latest version of this cabinet file, as well as your parameter file? You can upload them here:
https://wooddesigner.org/file-uploader/
Regards, Isaac
