Internal Drawers |Forum|WOOD DESIGNER
Full
March 4, 2024
Offline
nevermind its now working thank you
Full
March 4, 2024
Offline
sorry isaac that link doesnt seem to work
Moderator
March 25, 2024
Offline
Hello William,
See the following video, you will need to adjust your fitting.
Regards, Isaac
Full
March 4, 2024
Offline
Hi Isaac
When i do that the holes appear on the drawer fronts rather than the uprights
Moderator
March 25, 2024
Offline
Hello William,
I have opened the cabinet and can see that there is no rule for drawer fittings between your vertical divisions and drawer fronts.
You need to add a new rule to your fitting links where your vertical divisions are the overpassing panel, and your drawer fronts are the underpassing panel.
See the following image:
From here, you can add the fitting and the rule that you need.
For a video example of adding your drawer rules, see the following link:
Blum MOVENTO BLUMOTION drawer system set up
Let me know if you have any further questions.
Regards, Isaac
Full
March 4, 2024
Offline
Hello,

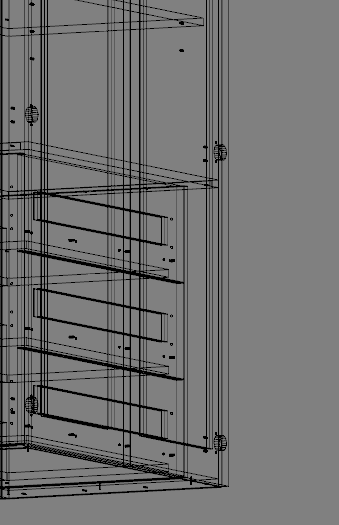

i have created a unit with internal drawers in it. In order for the drawers to clear the hinges i have to use two vertical uprights but i cant seem to get my fittings for the drawers runners onto the uprights. i have attached a file with the unit below.
Thank you
