Label pictures not displaying correct face
Avatar
Isaac

Moderator
Forum Posts: 1389
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
October 13, 2025 - 1:07 pm
sp_Permalink sp_Print

Hello Ray,

This is the expected export for labels from PolyBoard.

This is explained in our PolyBoard conventions document, found in our Quick Design Libraries, under the Guides folder.

Additionally I have uploaded it here.

PolyBoard will look from a components face 1 when exporting a cabinet. Always looking from left>right (see page 3 of the document).

Best regards, Isaac

Avatar
Ray
Member

Full
Forum Posts: 72
Member Since:
November 13, 2019
sp_UserOfflineSmall Offline
1
October 13, 2025 - 9:25 am
sp_Permalink sp_Print

Hi

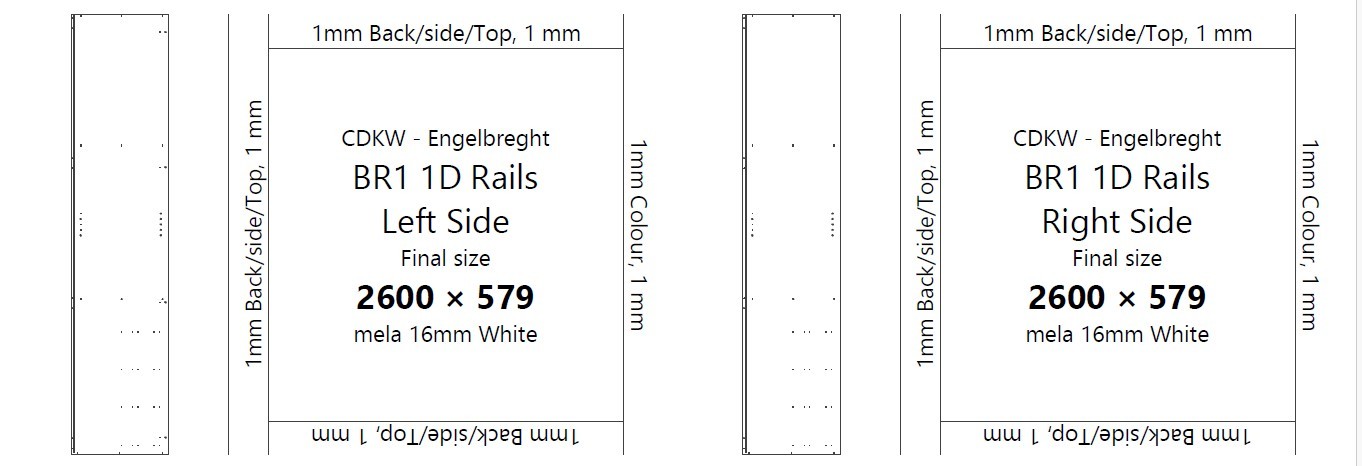

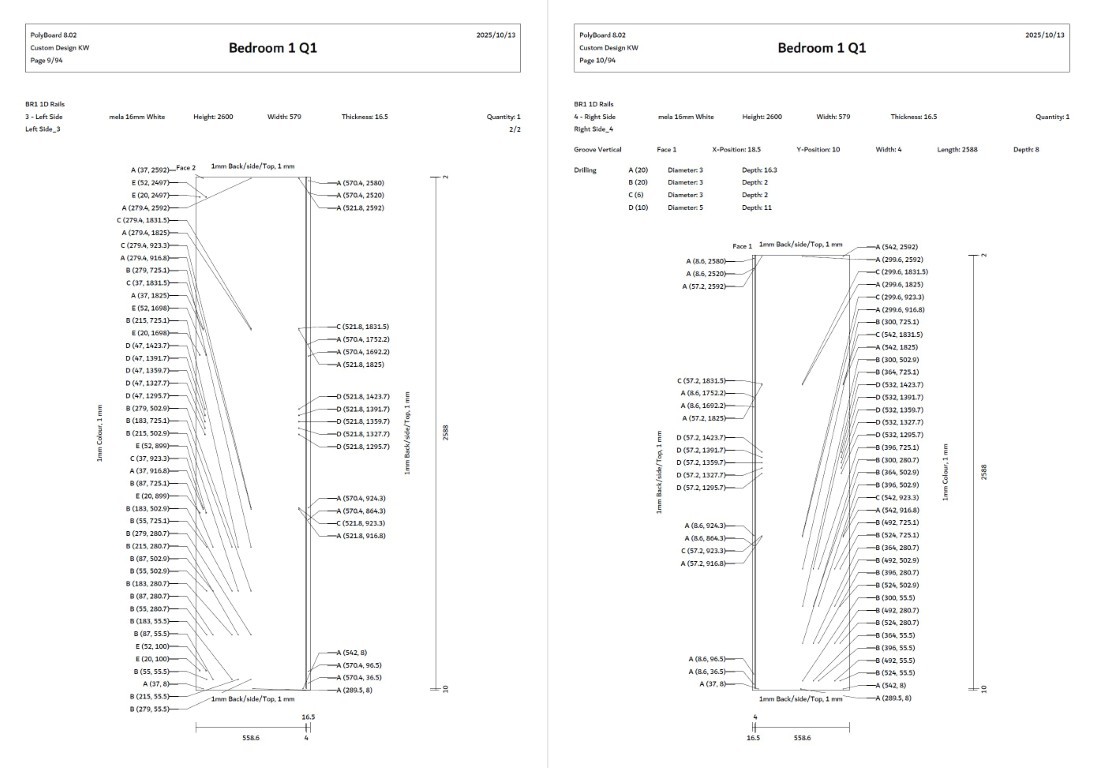

Is there a way to choose which face to show on the labels. I would like it to be the same as the “Toolings of Cabinet” printouts because this will confuse the CNC operator.

Labels.jpgImage Enlarger

Toolings-Medium.jpgImage Enlarger

Regards

sp_PlupAttachments Attachments
