Hi,
In view of the specific oscillation movement for Lamello P-Systems, the only solution is to use macros, but to date hops or this dealer have not supplied us with macros that work with PolyBoard.
We are not in a position to help you at this time.
Kind regards, Alex
Full
January 20, 2022
Offline
Thank you for the Cabineo tooling files
Do you have the same files that you for the Lamello Clamex 14 and Tenso and Clamex 10 also?
We can’t find them either…
We have the aggregate and router bit needed to do both vertical and horizontal Clamex connections on the machine and we do machine them directly on the cnc directly from files we create in hops. but can only find drilling for reference points to use of handheld machine in Polyboard.
I am convinced it has to be there somewhere when the Clamex is a very commonly used fitting. but i cant find out about it… Can you please advise on how to do this in Polyboard and if actually not there help us install the needed macros?.
Best regards Ola
Moderator
January 20, 2017
Offline
Hi,
If you don’t have them, I can provide them for you, from the attached xml file that you can download and then import into your library.

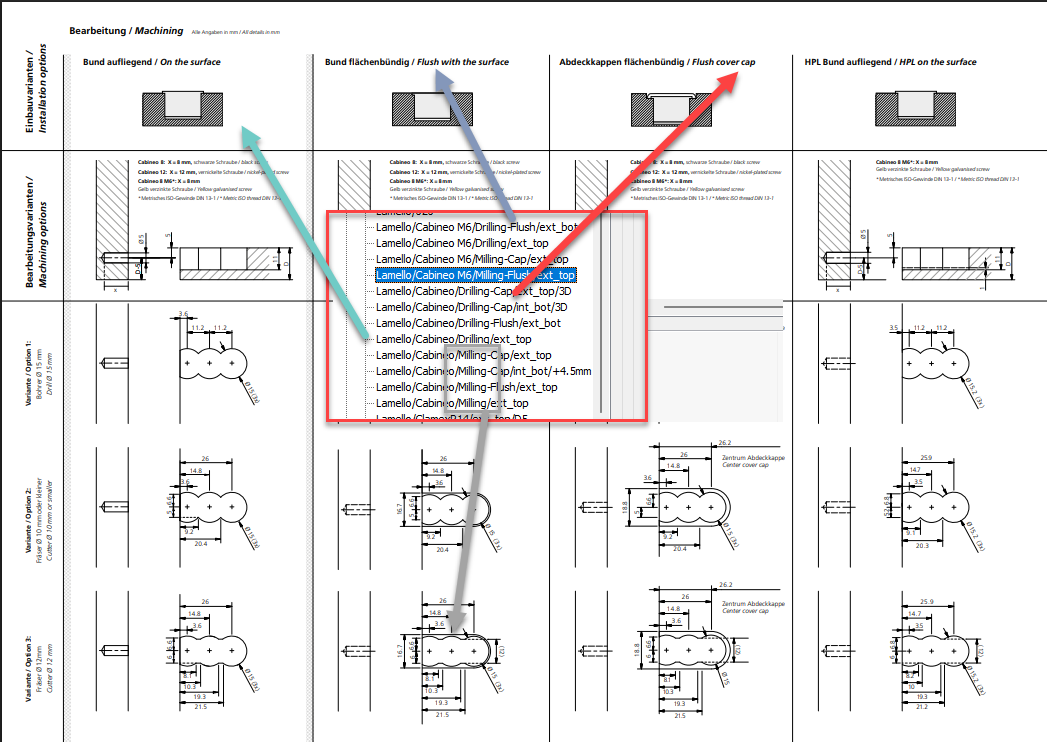

Please see picture below
Milling refer to cloud milling mode in grey
Drilling refer to the 3 drilling mode
Cap is Flush cover Cap
Flush is Flush on surface
If no one of these two instructions, it was the classic in surface mode
All the best Alex
Full
January 20, 2022
Offline
Hi,
Can you please advise on how to choose the different machining for the Cabineo cap?
can you please download this free files from lamello so that we can choose the different options from your library? or are they already there, just that we can’t find them.
We would like to choose how the cap is position on the surface, as shown in the manual it is 3 different options. [Subscribe to Premium Support to view this media]
[Subscribe to Premium Support to view this media]
Kind regards, Ola
