Left and Right sides are exporting in mirror image. |Forum|WOOD DESIGNER
Moderator
March 25, 2024
Offline
Hello,
Sorry for the delayed response to your question.
In your Post Processor I can see the X-Mirroring is applied. Can you please test turning this off and exporting some files?
Let me know if this resolves your problem.

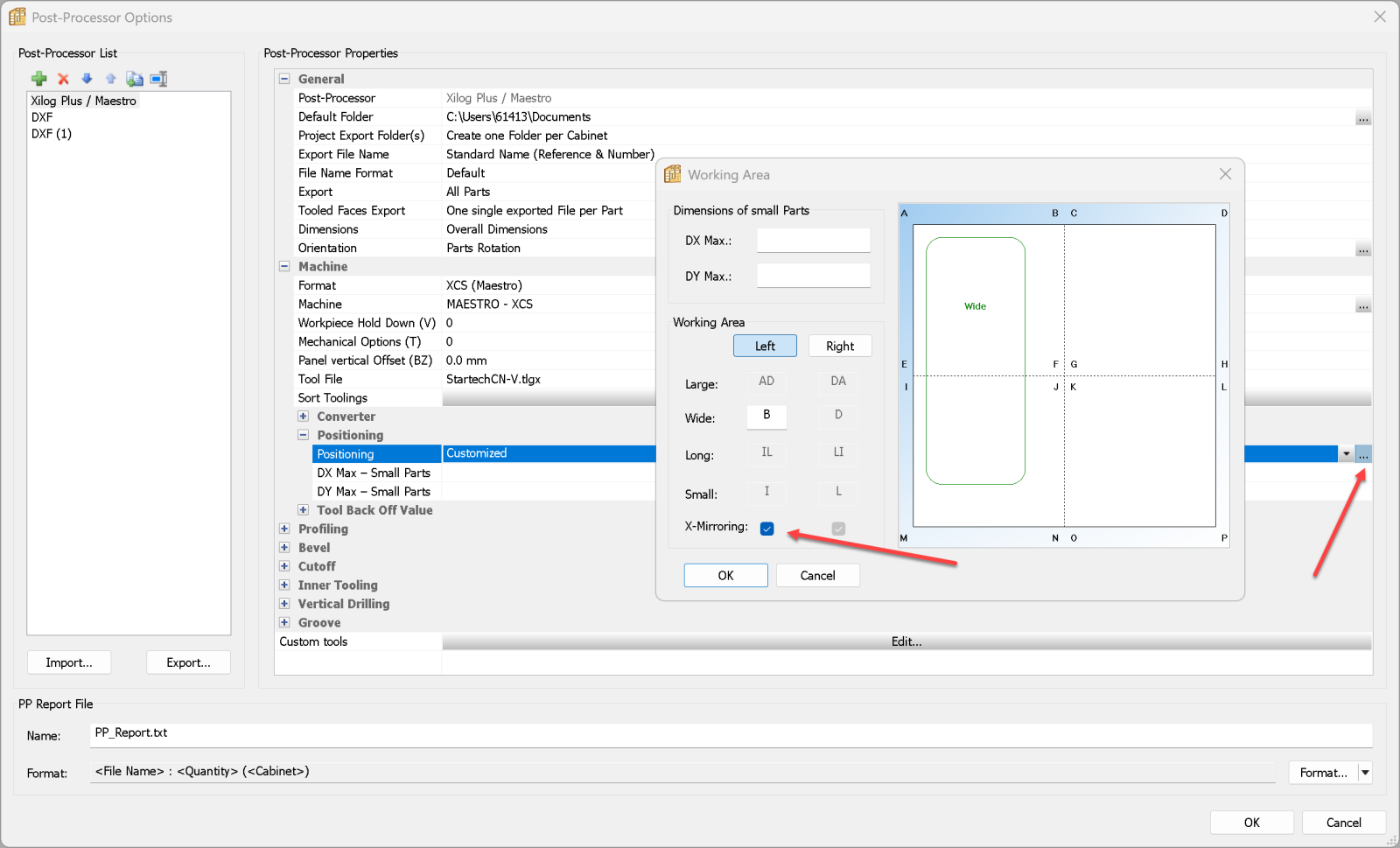

See the following image, please turn this feature off for some testing:
Best regards,
Isaac
Moderator
March 25, 2024
Offline
Hello,
I will again look over your parameters, and respond to you as soon as I can.
Best regards,
Isaac
Full
July 23, 2025
Offline
When running some test we noticed that after the cabinet has exported from Polyboard and converted to pgmx. once imported into Maestro the left and right sides are the wrong way round, all drilling are essentially mirrored. Not a problem with a drawer unit, but a for a hinged cabinet, the hinge drilling for the plate will be on the wrong side of the cabinet. We can mirror these panels back the right way in Maestro to correct, but its an oddity that when exported they’re the wrong way round.
