Hi,

As explained in this previous post, the principle is the same for all Macros.

>https://wooddesigner.org/forum…..ro-biesse/

Macro is sub-program, which must be positioned per variable,

After restore your cabinet and setting

which means that whatever the rule, the macros will be called AND positioned with the same values.

subject to test, and work face, the position in X will then have to be indicated with the internal variable of PolyBoard “%X%”,
and Y with %Y%

/!\ Depending on the case and the working face, %X% and %Y% may be reversed, or even %X% OR %Y% may be used to give a thickness /!\

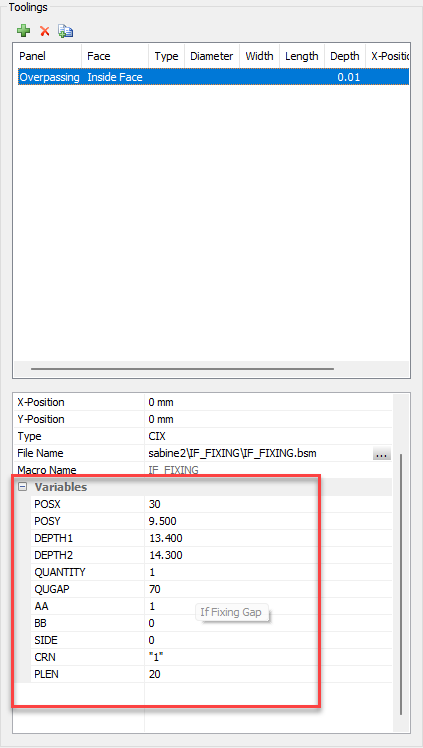

In screen shoot below you can find setting can be tested (for this macro direction look to be provider by variable AA or BB switched to 1 or 0)

And PolyBoard internal variable table,

%X% = Position value in horizontal X from panel origine (bottom left corner)
%Y% = Position value in vertical Y from panel origine (bottom left corner)
%DEG% = Machining orientation in degrees, 0° Horizontal 270° Vertical in counter-clockwise Left edge direction is 0°

(excepted for biesse)

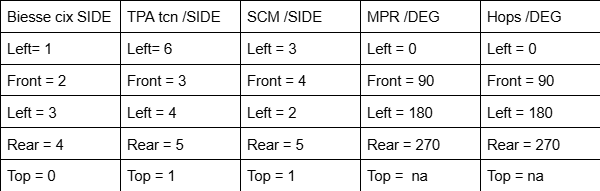

%SIDE%= Working face (please see table WS.png)

Hope that’s helpful, Alex

Hi Zaheer,

Can you please send a copy for us to look at? A cabinet file too please.

Regards,

Isaac
