Making a French cleat
Avatar
Heimwood APS

Forum Posts: 38
Subscriber Since:
May 2, 2023
sp_UserOfflineSmall Offline
7
July 27, 2023 - 3:03 pm
sp_Permalink sp_Print

Hey Michel

I tried switching chamfer off in my pp. It was set to “tip down”. I will see if it works next time. 🙂 Thanks!

/Oscar

Avatar
Michel

Forum Posts: 998
Subscriber Since:
August 7, 2014
sp_UserOfflineSmall Offline
6
July 27, 2023 - 11:34 am
sp_Permalink sp_Print

Hi Oscar,



In the pp settings, you can set the chamfer parameter to ignore, which is probably the case already. This will exclude the chamfer. If you set it on export, it will provide it in the output.  However, a flatbed CNC will not be able to cut it, and the square geometry is set so that you can cut it afterwards.



regards

Michel

Avatar
Heimwood APS

Forum Posts: 38
Subscriber Since:
May 2, 2023
sp_UserOfflineSmall Offline
5
July 26, 2023 - 1:33 pm
sp_Permalink sp_Print

Hi again Alex

I just exported my first version of this. I noticed, that optinest doesn’t place the cleats on the nesting map. I’m guessing it’s because it doesn’t understand the angled tooling. Is that because of the tools available on the cnc? I guess I will revert it to straight edges and cut them on an angle my self. 🙂

Cheers

/Oscar

Avatar
Alex

Forum Posts: 1789
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
4
July 18, 2023 - 12:11 pm
sp_Permalink sp_Print

Hi,

Ooops, I’ve just seen that I’ve made them reverse



Cheers, Alex

Avatar
Heimwood APS

Forum Posts: 38
Subscriber Since:
May 2, 2023
sp_UserOfflineSmall Offline
3
July 18, 2023 - 11:37 am
sp_Permalink sp_Print

Very nice! I’ll just flip the cleat for optimal function. laugh

Thanks a lot, Alex!

Avatar
Alex

Forum Posts: 1789
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
2
July 18, 2023 - 7:29 am
sp_Permalink sp_Print

Hi,

Not directly, but you can obtain it manually

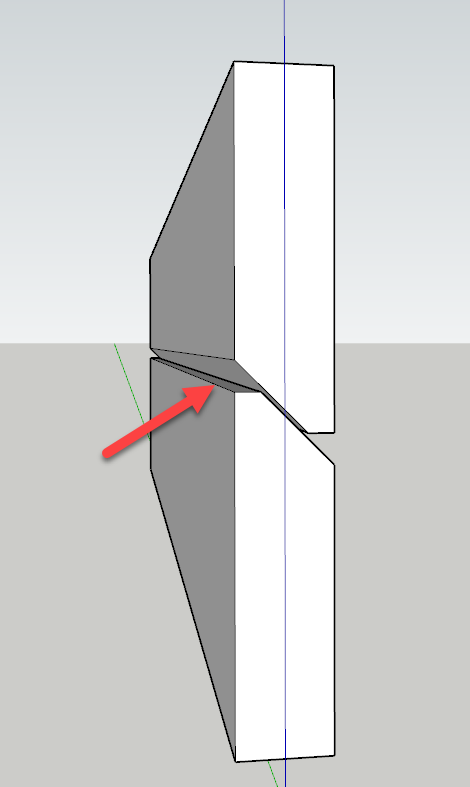

I often leave a small flat for debris that falls out when installing the cabinet.

cleat.pngImage Enlarger



Cheers, Alex

sp_PlupAttachments Attachments
Avatar
Heimwood APS

Forum Posts: 38
Subscriber Since:
May 2, 2023
sp_UserOfflineSmall Offline
1
July 17, 2023 - 3:57 pm
sp_Permalink sp_Print

Hi there

For our hanging cabinets I usually use a bracket from häfele or similar x,y,z adjustment options. I’ve made my own fittings for the purpose, and it works alright. My issue is the supply of the brackets, and often times I wish I had just made a standard french cleat.

I tried to find a video or forum post about it, but couldn’t find anything from after 2015, where Ness explained that you can’t surfacesplit a back panel with the 45° angle that you would need. Has this functionality been added since then?

Kind regards

Oscar
