Hello Isaac,
We found the issue. We usually use Multiple PP export, and for some reason the box for back export was not marked in Multiple PP settings.
Thank you,
Tarjei
Moderator
March 25, 2024
Offline
Hello Tarjei,
Using your provided cabinet, parameters and PostProcessor I have tested this.

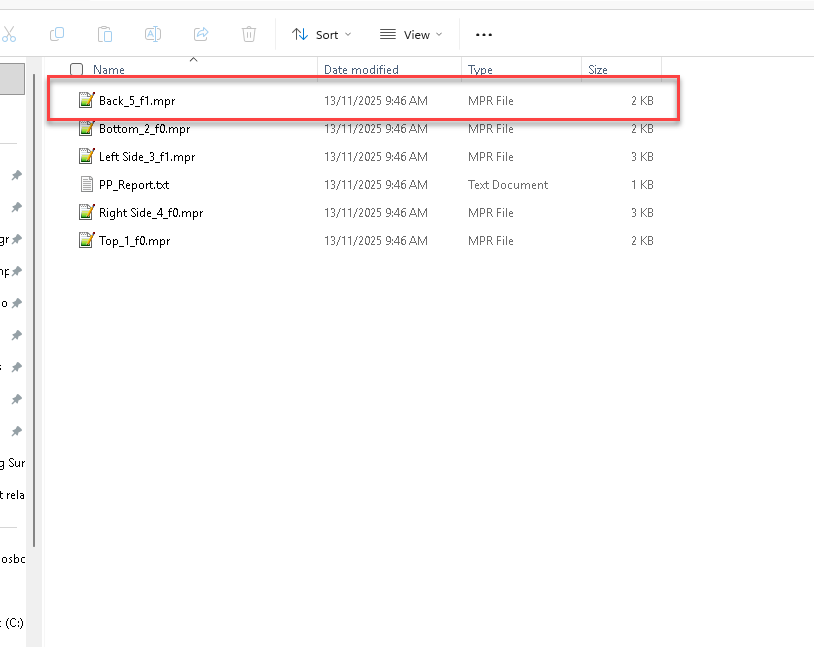

On my first test, you can see that the back panel has exported to an mpr. file.
Are you not receiving an mpr file for your back panel?
Regards, Isaac
Full
September 29, 2021
Offline
Hello Isaac, thank you for your continued support.
We have uploaded our parameter file now. Hope everything is in order
Regards,
Tarjei
Moderator
March 25, 2024
Offline
Hello Tarjei,
Can you please send me a copy of your parameter file? With this, I can better understand you problem.
See the following image:
Please upload the parameter file to the file uploader here.
Regards, Isaac
Full
September 29, 2021
Offline
Full
September 29, 2021
Offline
Hello!
Thank you for good help on the last issue. We now have a new problem.
After our cabinet has been sent to Homag drillteq V200 / woodwop through post-processor, the back does not appear. We have never needed machining on our backs, so it has not mattered, but for this cabinet we need a 6mm drilling for Peanut.
We first thought the problem was because the back needed edge drilling from below, which the drillteq cant do. But the back in question is 262x281mm, so it should be able to rotate and drill from the sides.
Then we realised our post-processor said “Export: Tooled Parts”, which should not be a problem, but in any case we changed it to Export: All Parts”
Kind regards,
Tarjei
