overlay drawers
Avatar
Isaac

Moderator
Forum Posts: 1521
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
June 26, 2026 - 2:53 pm
sp_Permalink sp_Print

Hello Caroline,

The construction of this looks good to me. You will now need to confirm that the runner will not overlap with your notch. Its best to confirm the height of the runner to do this.

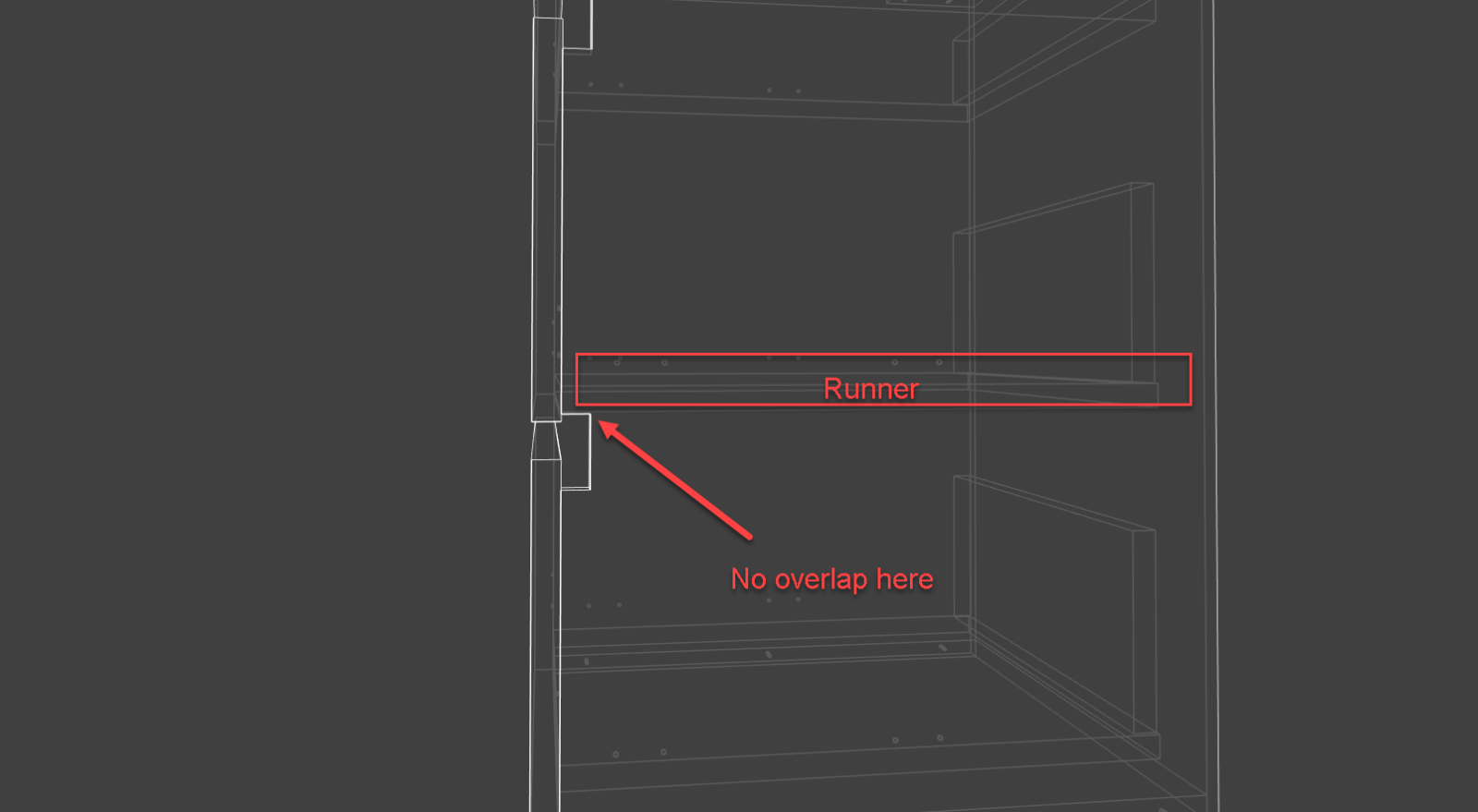

See the following notated example:

2026-06-26_14-51-19.PNGImage Enlarger

Regards, Isaac

sp_PlupAttachments Attachments
Avatar
brendan kavanagh
Member

Full
Forum Posts: 229
Member Since:
May 12, 2020
sp_UserOfflineSmall Offline
1
June 26, 2026 - 11:17 am
sp_Permalink sp_Print

Hi Isaac

following on from our zoom session this morning i have done a cabinet with kubox overlay drawers with the 50mm knotches cut out in right hand gable can you take a look and see what you think?

Brendan is going to cut out the right hand gable anyway to see about the runners



Thanks Caroline
