Panel Sizes are not machining correctly when sent to Post Processor|Forum|WOOD DESIGNER
Full
August 29, 2024
Offline
Isaac

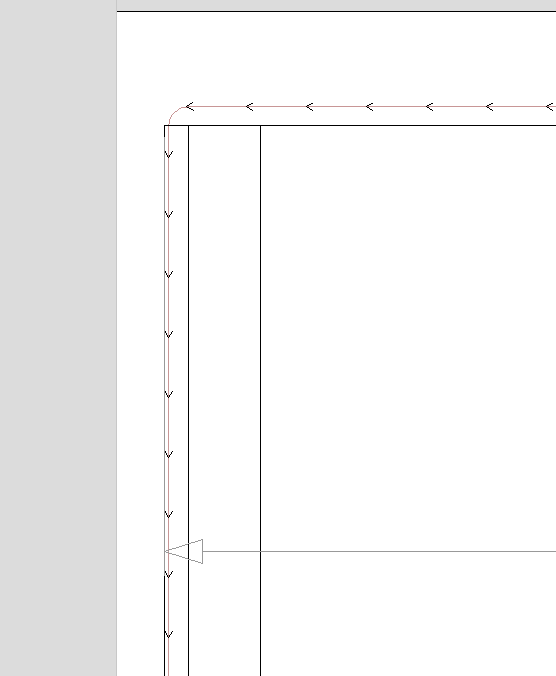

I’ve run the toolpaths again and I see that the toolpath is cutting to the inner size and ignoring the outer boundary. See attached picture and is therefore cutting the 5mm excess on each end away and therefore we are 10mm smaller than we should be.
Dermot
Moderator
March 25, 2024
Offline
Hello Dermot,
I have exported this multiple times into Vectric and I am getting 763mm each time.
Can you please export this one more time, as a single cabinet, and confirm that it is the correct component?
Regards,
Isaac
Full
August 29, 2024
Offline
Cabinet file attached
Full
August 29, 2024
Offline
Isaac
They are being cut on a panel saw.
Regards
Dermot
Moderator
March 25, 2024
Offline
Hello Dermot,
Are you cutting this chamfer on a panel saw, or on a cnc machine?
Please send this file again and I will send you an example of what you can do.
Regards,
Isaac
Full
August 29, 2024
Offline

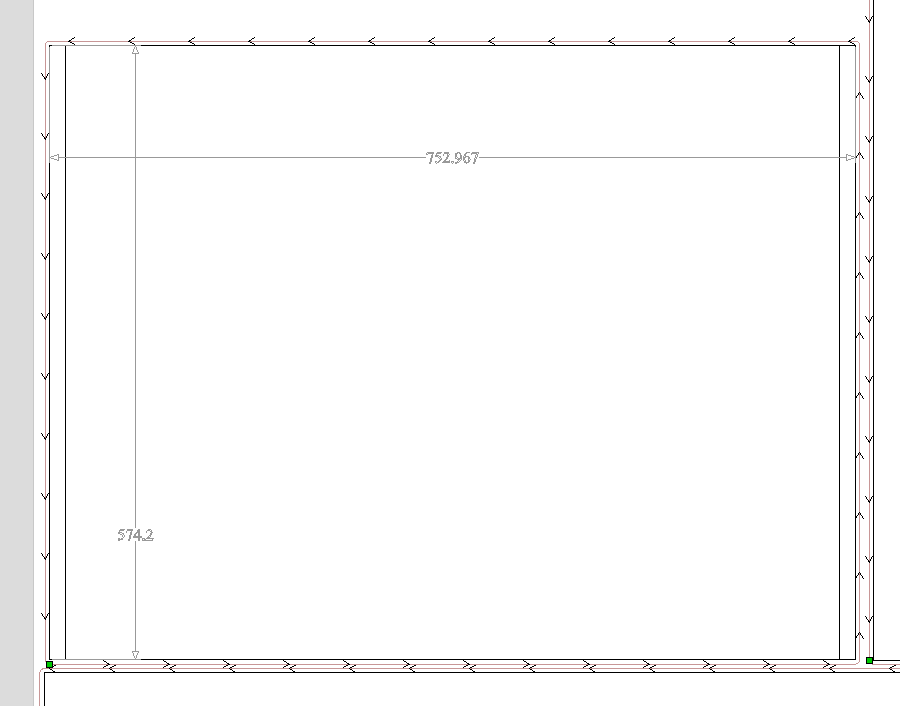

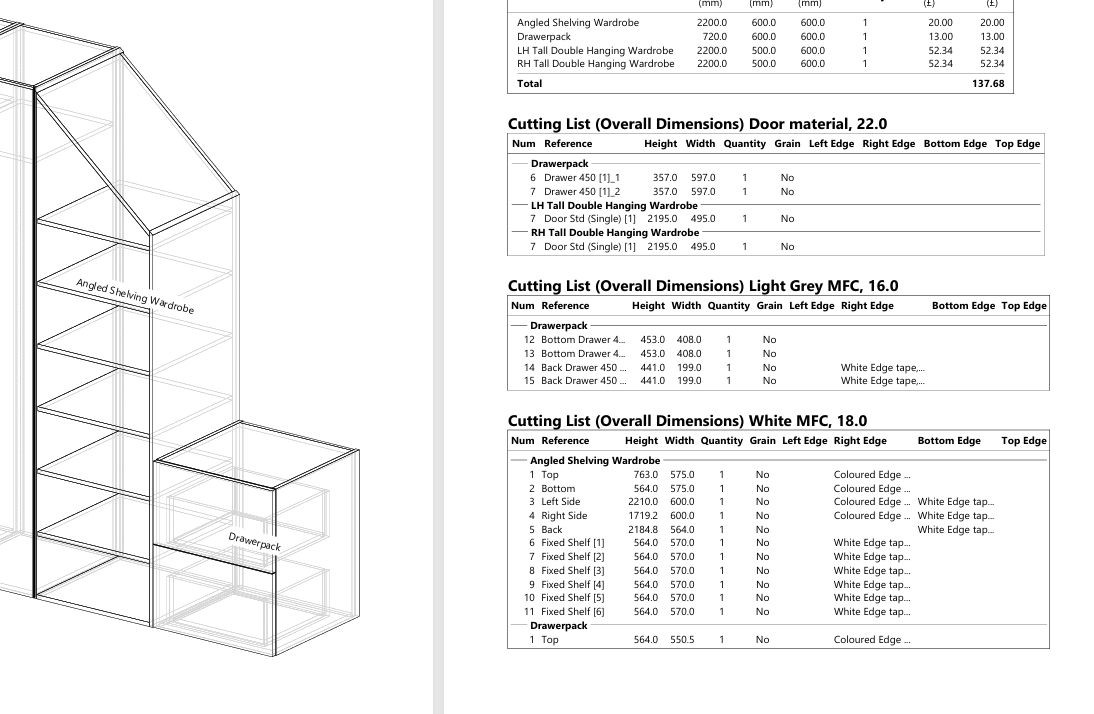

I’ve ran the job and the angled top should read 763 but the vectric file is being drawn as 753mm. Is there a setting to make sure that there is a trim value to allow for chamfering the panel?
Regards
Dermot
