Isaac

Moderator

Forum Posts: 1521

Member Since:
March 25, 2024

Offline

June 17, 2026 - 3:01 pm

Hello Ilie,

This is not currently possible to export this information within a PolyBoard MPR file.

The only current options are within the labelling, or post processor report file.

Sorry that I couldn’t be more helpful here.

Regards, Isaac

1-2-1 Support & Training | Help Centre | How to use the Forum

Ilie Mihail

Member

Full

Forum Posts: 55

Member Since:
March 31, 2025

Offline

June 17, 2026 - 11:25 am

[H \Left:0.75;Bottom:0.75;Right:0.75;Top:0.75;\

VERSION=”4.0 Alpha”

HP=”1″

IN=”0″

GX=”0″

BFS=”1″

GY=”1″

GXY=”0″

UP=”0″

FM=”1″

FW=”200″

HS=”0″

OP=”1″

MAT=”WEEKE”

INCH=”0″

VIEW=”NOMIRROR”

ANZ=”1″

BES=”0″

ENT=”0″

_BSX=400

_BSY=300

_BSZ=18

_FNX=0.000000

_FNY=0.000000

_RNX=0.000000

_RNY=0.000000

_RNZ=0.000000

_RX=400

_RY=300

[001

l=”400″

KM=”length”

w=”300″

KM=”width”

t=”18″

KM=”×ó˛ŕ°ĺ 1″

<100 \WerkStck\

LA=”l”

BR=”w”

DI=”t”

FNX=”0″

FNY=”0″

AX=”0″

AY=”0″

<101 \Kommentar\

KM=”×ó˛ŕ°ĺ 1″

KM=”000-001 : GH_01_BFB, 0.75mm “

KM=”001-002 : GH_01_BFB, 0.75mm “

KM=”002-003 : GH_01_BFB, 0.75mm “

KM=”003-000 : GH_01_BFB, 0.75mm “

<102\ Vertical Drilling\

XA=”391.”

YA=”246.”

BM=”LS”

TI=”11.”

DU=”10.”

AN=”1″

MI=”0″

S_=”1″

AB=”32″

WI=”0″

HP=”0″

SP=”0″

ASG=”0″

MX=”0″

MY=”0″

MZ=”0″

MXF=”1″

MYF=”1″

MZF=”1″

KO=”00″

<102\ Vertical Drilling\

XA=”391.”

YA=”214.”

BM=”LS”

TI=”11.”

DU=”8.”

AN=”1″

MI=”0″

S_=”1″

AB=”32″

WI=”0″

HP=”0″

SP=”0″

ASG=”0″

MX=”0″

MY=”0″

MZ=”0″

MXF=”1″

MYF=”1″

MZF=”1″

KO=”00″

<102\ Vertical Drilling\

XA=”391.”

YA=”86.”

BM=”LS”

TI=”11.”

DU=”8.”

AN=”1″

MI=”0″

S_=”1″

AB=”32″

WI=”0″

HP=”0″

SP=”0″

ASG=”0″

MX=”0″

MY=”0″

MZ=”0″

MXF=”1″

MYF=”1″

MZF=”1″

KO=”00″

<102\ Vertical Drilling\

XA=”391.”

YA=”54.”

BM=”LS”

TI=”11.”

DU=”10.”

AN=”1″

MI=”0″

S_=”1″

AB=”32″

WI=”0″

HP=”0″

SP=”0″

ASG=”0″

MX=”0″

MY=”0″

MZ=”0″

MXF=”1″

MYF=”1″

MZF=”1″

KO=”00″

<163\ lmnshp\

XA=”60.”

YA=”0.”

ZA=”9.”

TI=”14.1″

BM=”YP”

R=”46″

R1=”50.2″

DU=”9.8″

PY=”1.5″

<163\ lmnshp\

XA=”340.”

YA=”0.”

ZA=”9.”

TI=”14.1″

BM=”YP”

R=”46″

R1=”50.2″

DU=”9.8″

PY=”1.5″

<163\ lmnshp\

XA=”60.”

YA=”300.”

ZA=”9.”

TI=”14.1″

BM=”YM”

R=”46″

R1=”50.2″

DU=”9.8″

PY=”1.5″

<163\ lmnshp\

XA=”340.”

YA=”300.”

ZA=”9.”

TI=”14.1″

BM=”YM”

R=”46″

R1=”50.2″

DU=”9.8″

PY=”1.5″

Ilie Mihail

Member

Full

Forum Posts: 55

Member Since:
March 31, 2025

Offline

June 17, 2026 - 11:19 am

I use Polyboard with WoodWOP MPR post-processor for a Hua Hua CNC machine. The machine reads edge banding information from KM comments in the <101 \Kommentar\ section in this format:


KM="000-001 : MATERIAL, 1mm "
KM="001-002 : MATERIAL, 1mm "
KM="002-003 : MATERIAL, 1mm "
KM="003-000 : MATERIAL, 1mm "

Can you add this to the WoodWOP MPR post-processor so it exports automatically based on the edge banding set on each panel

Isaac

Moderator

Forum Posts: 1521

Member Since:
March 25, 2024

Offline

June 17, 2026 - 11:02 am

Hello Ilie,

Your only option is to either allow for, or remove the thickness of the edging in the finished sizes of the pieces. To allow for this, set either:

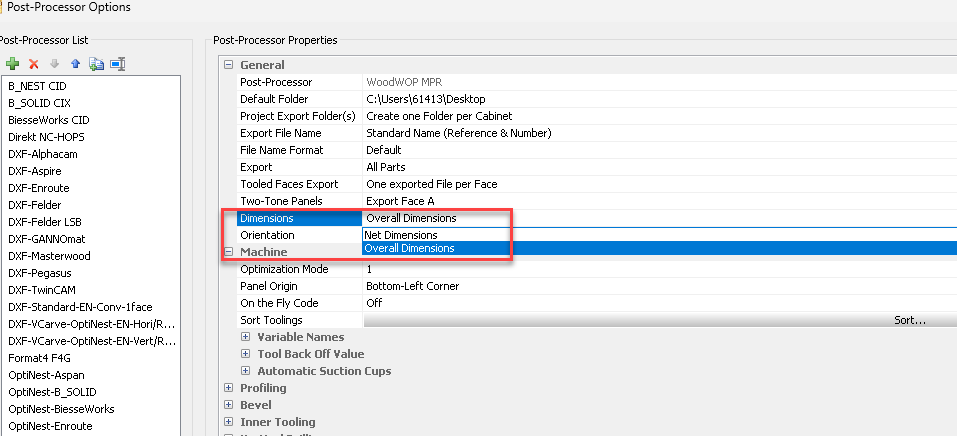

Net dimensions – For finished sizes without edge tape

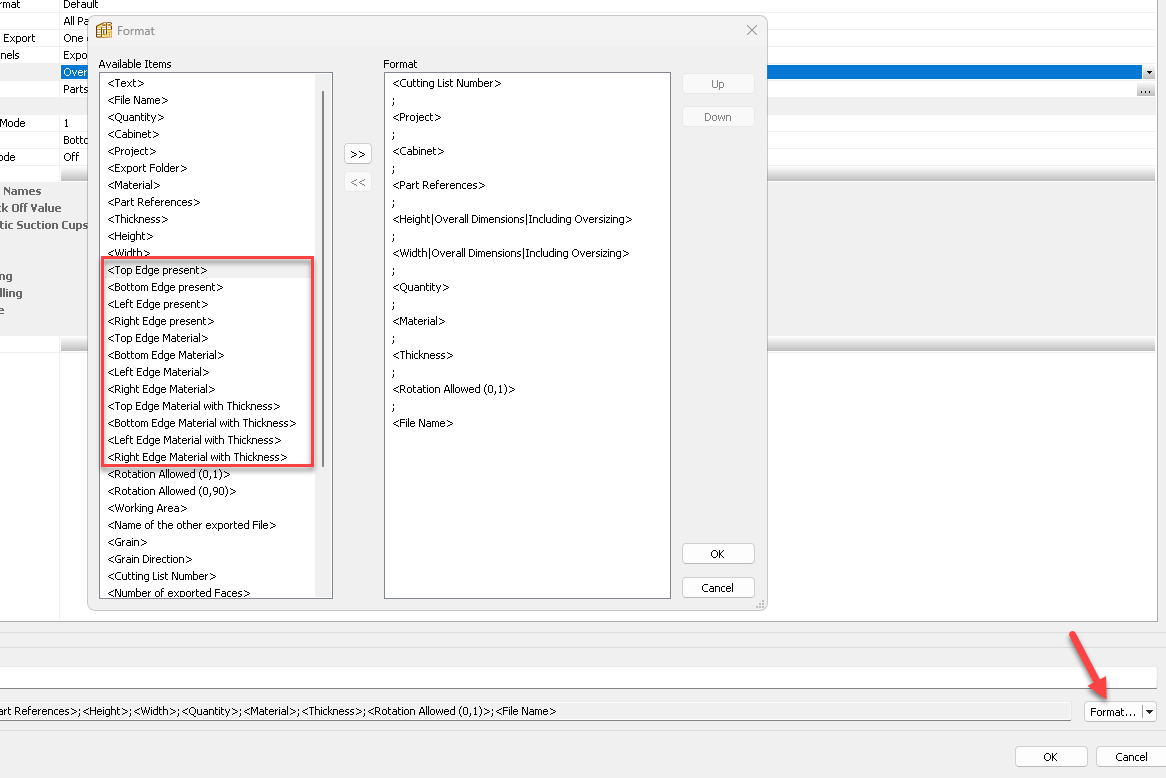

Overall dimensions – For finished sizes to contain edge tape thickness (good if you use pre-milling on an edgebander)

Apart from this, there are only two other options for referencing edge tape on your components:

Add edging detail on part labels
Add edging details to a CSV/TXT in your PP report (good for labelling references in your CAM software)

Let me know if you have any further questions.

Best regards, Isaac

Attachments

1-2-1 Support & Training | Help Centre | How to use the Forum

Ilie Mihail

Member

Full

Forum Posts: 55

Member Since:
March 31, 2025

Offline

June 17, 2026 - 10:07 am

Hello, is there a possibility in the files exported with the postprocessor to show me the edges of the piece, for example if I have 2 edged sides along the length to see them in the exported file, I use mpr
