Post processor export for T jet on Biesse nesting
Avatar
Isaac

Moderator
Forum Posts: 1388
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
3
March 31, 2026 - 1:16 pm
sp_Permalink sp_Print

Hello Branimir,

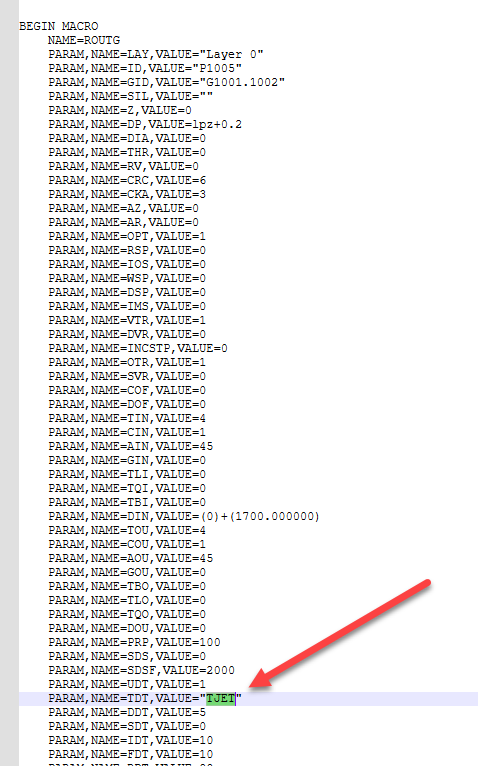

See attached the program for the TJET with the routing macro. This is contained in the file that you provided me.

2026-03-31_13-11-47.PNGImage Enlarger

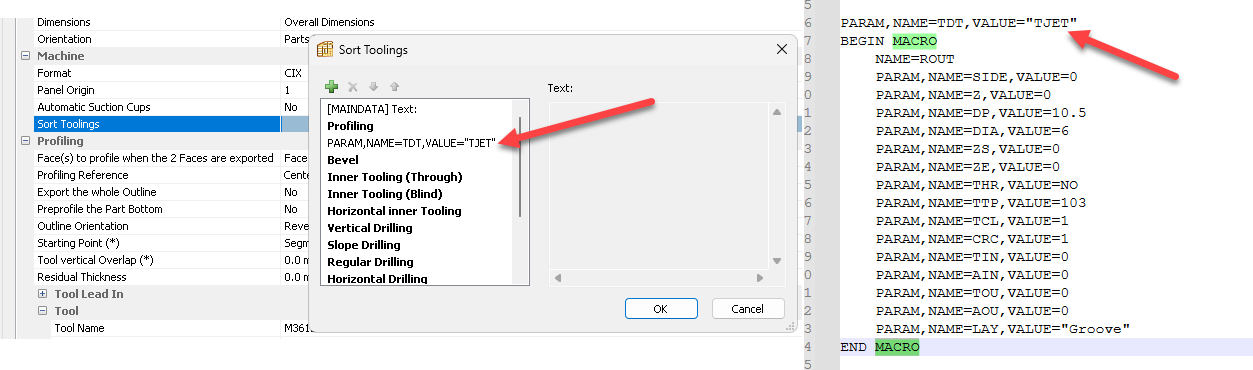

I have not been able to replicate this exactly, although have been able to place this before the macro from a custom text  pre-routing.

2026-03-31_13-14-15.PNGImage Enlarger

My assumption though is that this would not correctly work with your files.

Could you please provide the programming documentation for this? You may need to reach out to your contact at Biesse for this information.

Regards, Isaac

sp_PlupAttachments Attachments
Avatar
Isaac

Moderator
Forum Posts: 1388
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
March 30, 2026 - 8:12 am
sp_Permalink sp_Print

Hello Branimir,

Do you have any documentation or working files that contain the T jet deflector that I could review?

Existing CIX files containing this tool would be best.

Regards, Isaac

Avatar
BRANIMIR Georgiev
Member

Full
Forum Posts: 4
Member Since:
July 3, 2025
sp_UserOfflineSmall Offline
1
March 28, 2026 - 5:01 pm
sp_Permalink sp_Print

Hi anyone know how to attach T jet deflector to post proccesing on Biesse CIX export?
