Hello Sam,
This rule is included in the QuickDesign Libraries if you are using them.

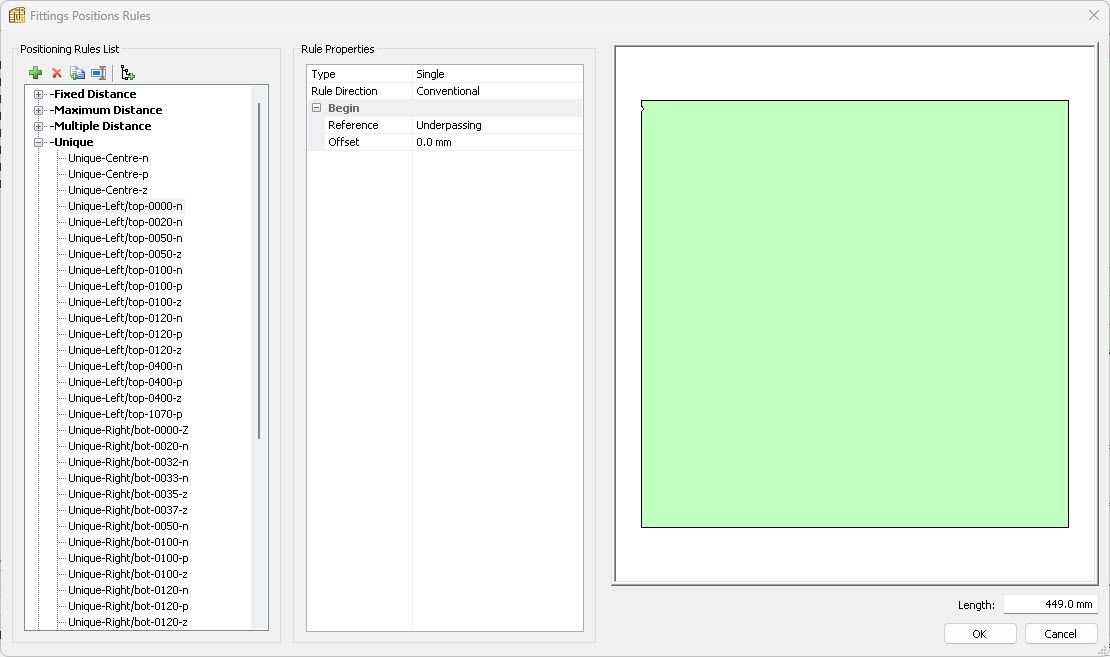

If you are not using the QuickDesign libraries, see the rule below. You will just need to quickly add in the values to a new rule as seen in the attached image:
Regards, Isaac
Full
August 13, 2024
Offline
Hi Isaac,
can i upload your rule?
Moderator
March 25, 2024
Offline
Hello Sam,
See the fitting links I have created in the following screen shots.
Note, to place on the right side of the cabinet you can either use the mirroring tool (recommended), or manually adjust the rule used.
Best regards, Isaac
Full
August 13, 2024
Offline
Hi Isaac,
its the standard fitting downloaded from Wood Designer Catalogue of the Salice Products and its the Air Hinge
Moderator
March 25, 2024
Offline
Hello Sam,
Do you have the hinge in your fitting libraries and are trying to create an application rule (fitting link), or are you trying to create the fitting?
Also, please send me the technical sheet for the fitting you are using.
I will then show you an example.
Regards, Isaac
Full
August 13, 2024
Offline
Hi, can somebody assist me in how to use the salice air hinge into the carcass, they are designed that the hinge sits of the roof and base rather than the side gable and im struggling to create the rule for this work?
