Hi Isaac

Thanks for reviewing this…

Yes the referencing of the runner position to drawers works perfectly now.

1 last query on this set up…

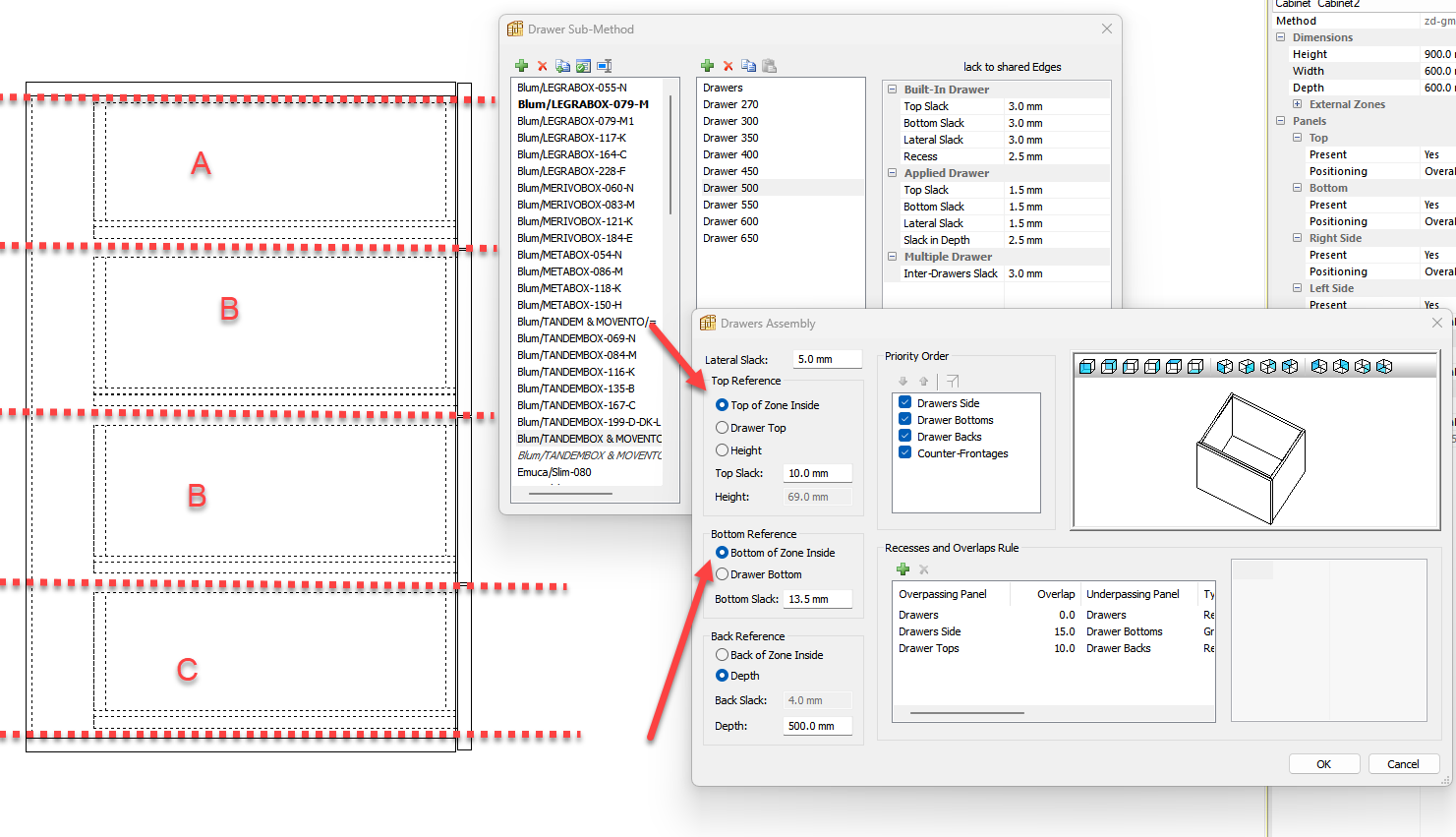

I notice that in a cabinet that for example is 500mm in height – 2 drawers divided equally and the drawer box internal depth are equal and the drawer fronts are equal.

However going to 3 or 4 drawers.. then the internal drawer box depth become equal for the middle drawers but the tops and bottom are equal to each other but smaller..

How do i set this up so that drawer boxes and drawer fronts are always equal?

Ash

Hello

I’ve probably mixed up a fair few dimensions now across different drawer slide sizes (runner length)

Thanks

Hi Isacc

Thanks for sending this through… I’ve been playing around with this for a few hours today, the bit I’m still stuck with that when there are multiple drawers in 1 volume then the y-axis reference for the runner doesn’t work for every drawer.

I suspect its a rule reference some where as the very bottom drawer box reference includes the 18mm cabinet bottom panel, where as those above / intermediate one do not.

 I’m going round in circle with it a little bit, something’s not quite making sense to me.
