Sliding doors

Isaac

Moderator

Forum Posts: 1081

Member Since:
March 25, 2024

Offline

June 6, 2025 - 10:26 am

Hi Marianne,

You will need to add a groove to your libraries. You can either add the groove through a single panel fitting, or as a standard fitting in this situation, with an overpassing top/bottom panel and an under passing KleinRoll door. This is up to you.

Best regards,

Isaac

1-2-1 Support & Training | Help Centre | How to use the Forum

Marianne Hagen Olsen

Member

Full

Forum Posts: 36

Member Since:
September 29, 2021

Offline

June 6, 2025 - 9:28 am

Super, thank you 🙂

Do I make a single panel fitting/groove to the top/bottom panel also, for the sliders?

Or is there a fitting for this also?

Marianne

Isaac

Moderator

Forum Posts: 1081

Member Since:
March 25, 2024

Offline

June 6, 2025 - 8:44 am

Hi Marianne,

Sorry that it has taken me a while to respond.

See the following video and attached fitting:

Regards,

Isaac

1-2-1 Support & Training | Help Centre | How to use the Forum

Marianne Hagen Olsen

Member

Full

Forum Posts: 36

Member Since:
September 29, 2021

Offline

June 5, 2025 - 1:03 pm

Hello helpful people 🙂

I have a question about the sliding door-fittings (and in our case the lack of the fitting in our system.)

We want to apply the “Klein-Roll” fitting to some built-in doors. We haven´t made any sliding doors yet in the CNC, so this is new too us.

Is there a reason to why we are lacking all the data on sliding door-fittings? Or can I get them from somewhere? I´m afraid to overwrite something in my libraries if I just try out on my own 😛

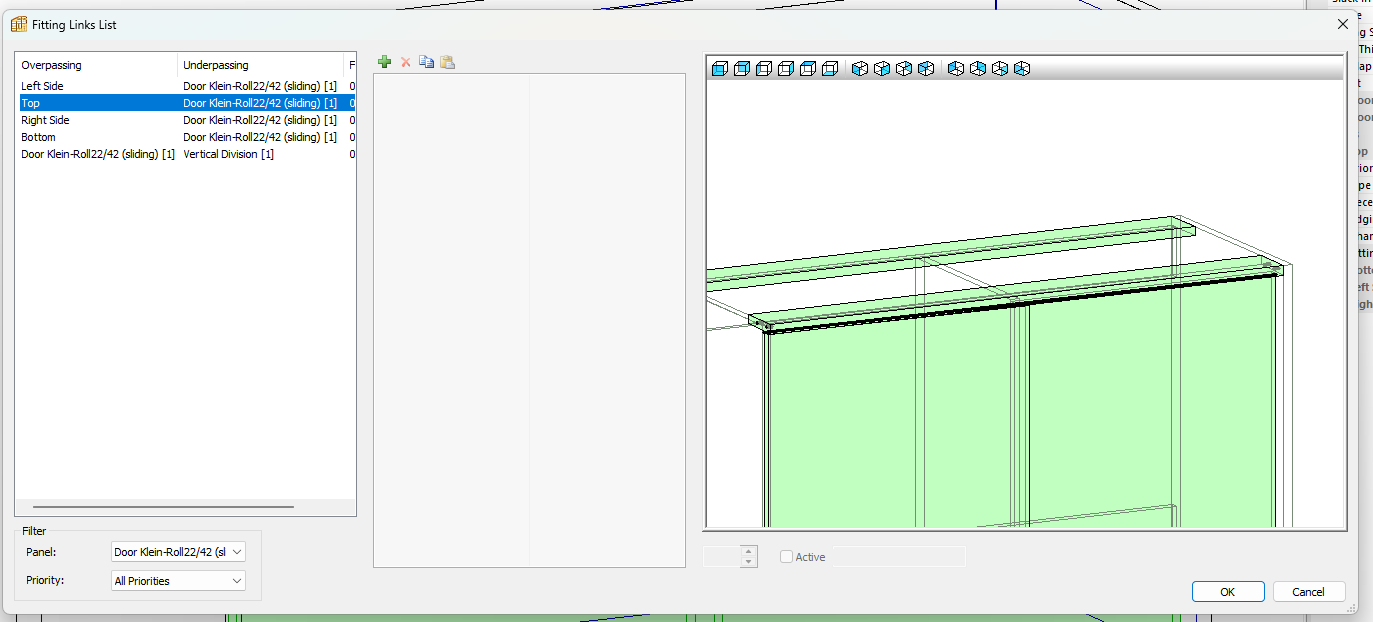

I have attached the program + image of my screen showing no fittings in the fitting link.
