Hello Ryan,
Not in this specific example. You need to manually set the pocketing sizes for your CNC, therefore, this situation is not able to be parametric.
Regards, Isaac
Full
March 4, 2024
Offline
thank you
is there a way to do it parametric or do i have to do all doors individual
Moderator
March 25, 2024
Offline
Hello Ryan,
There are multiple ways to draw this door, and it depends on specifically how you construct it. Here are some examples:
1. Single panel, pocket door
[Subscribe to Premium Support to view this media]
2. Two panels, pocket through face panel
[Subscribe to Premium Support to view this media]
3. Assembled panels
[Subscribe to Premium Support to view this media]
Regards, Isaac
Full
March 4, 2024
Offline
Im just looking for a quick way to make this door.
Thank you
Ryan
Moderator
March 25, 2024
Offline
Hello Ryan,
Can you please send me a picture of what you would like to produce?
I will show you what options are available.
Regards, Isaac
Full
March 4, 2024
Offline
Hello,

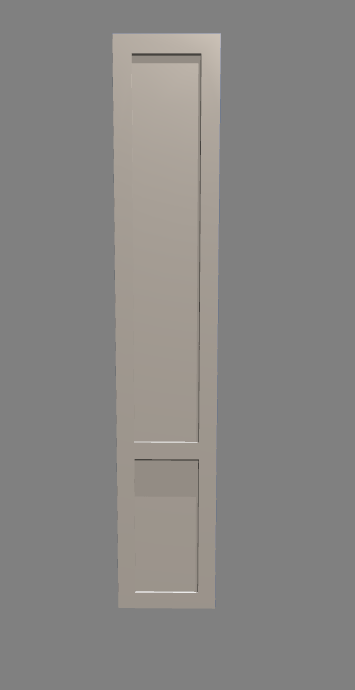

I am just woundering is there a way to draw doors with two panels quickly for example a tall door with a bottom panel of 715 match the base doors.
At the moment i just send one full panel door to vcarve and edit it on that before sending it to our CNC.
Thank you
Ryan
