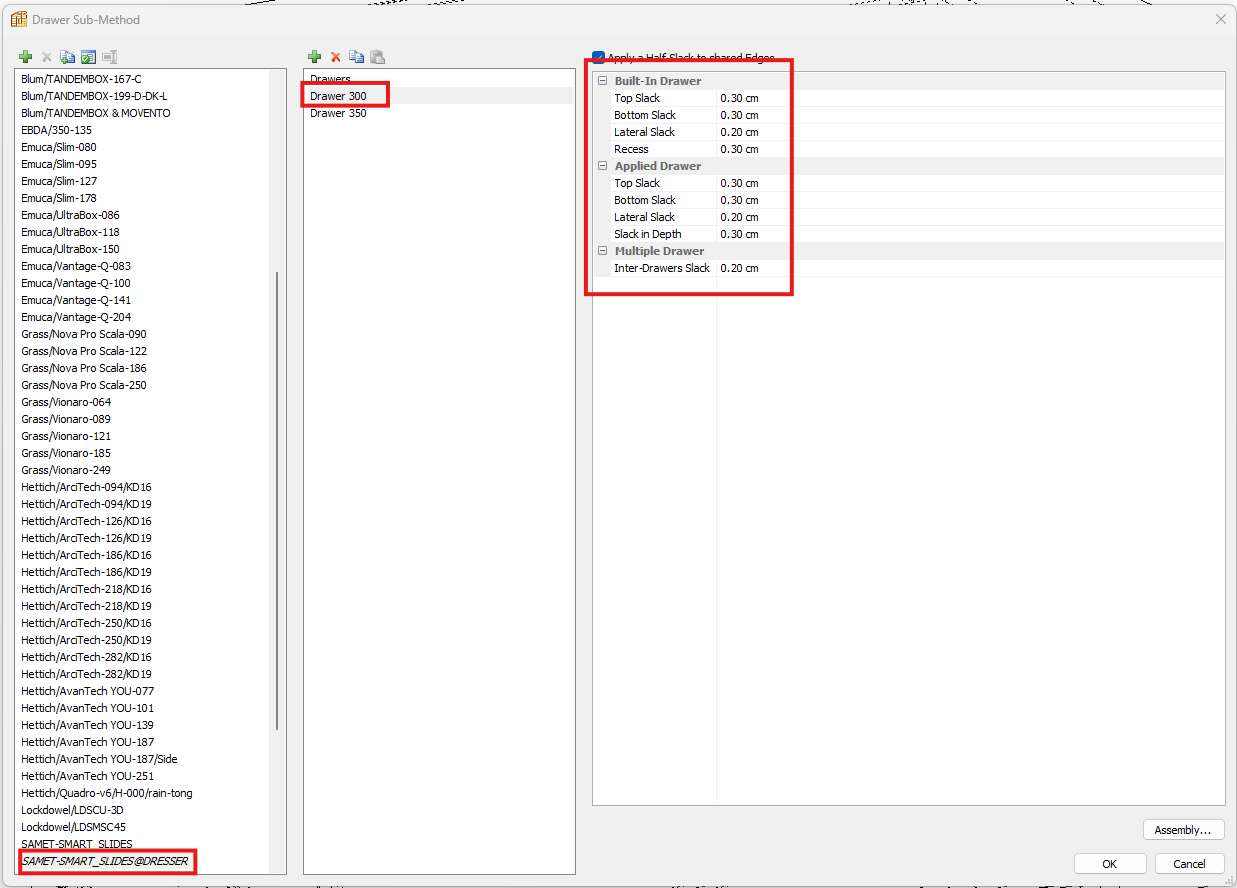

The unit that i want to copy setup to a new method

By the way and sorry for disturbing, but in case that i have a push to open cabinet and the drawers are built in, I need the top and bottom to be overpassing at the same time the travelling distance which is 3 mm i need it to be there too, how can i achieve this?

i will attach a cabinet

Hello,

Thank you again for your support, I have finished the drillings for the slides and i have a few things that i want to ask about:

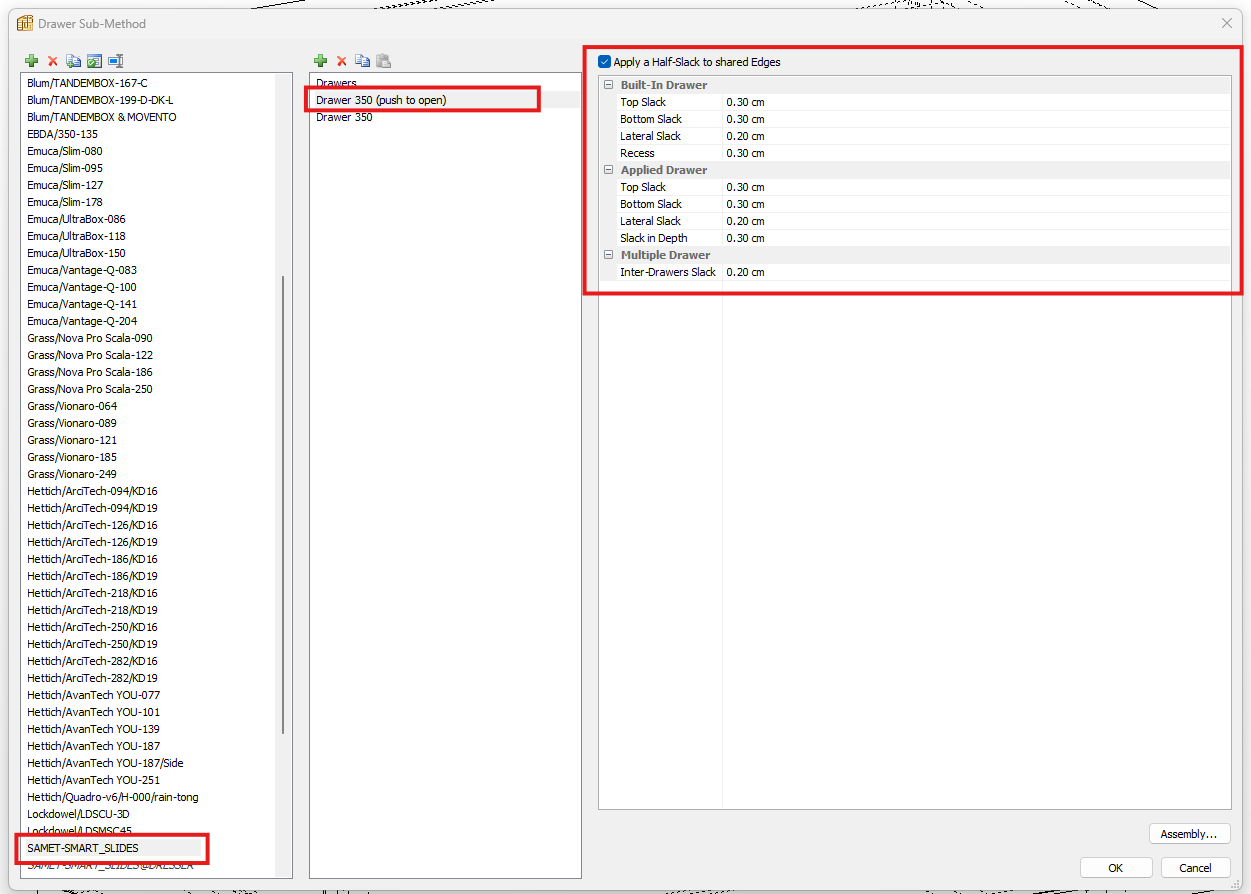

1- in the drawers nameing

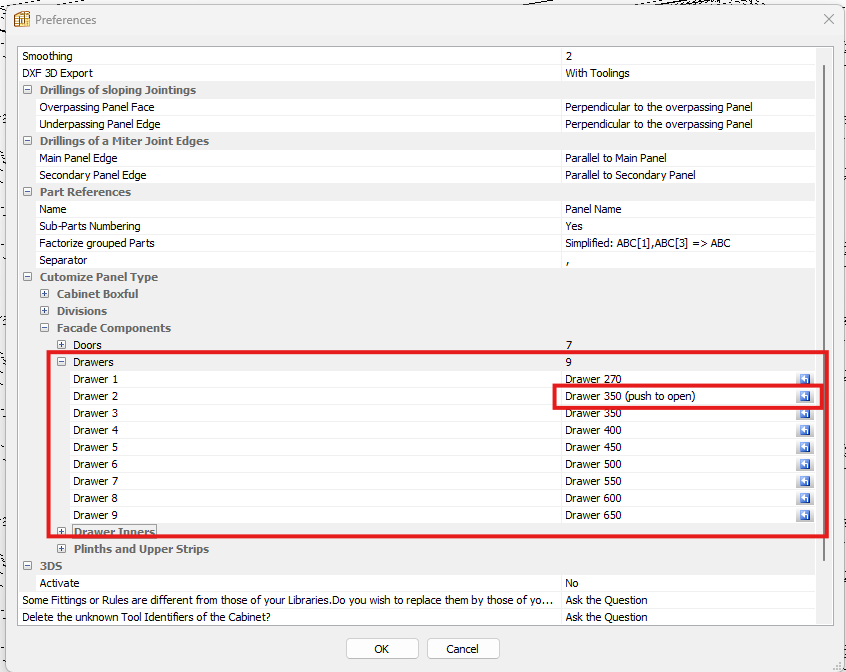

we have added before the push to open title to the list but i can`t find it althought the setting are already found in the 300mm

I want it to be the same

Hello Isaac,

Thank you for guiding me through this slides,

everything on the software is fine except for few things, I am sorry for that but the problem is that we are going to change the slide to Smart Slide single extention Drawer lock fix 350mm + 450mm

As I can see from the tech. sheet it`s the same except we don`t need the A+B drillings and please confirm that for me.

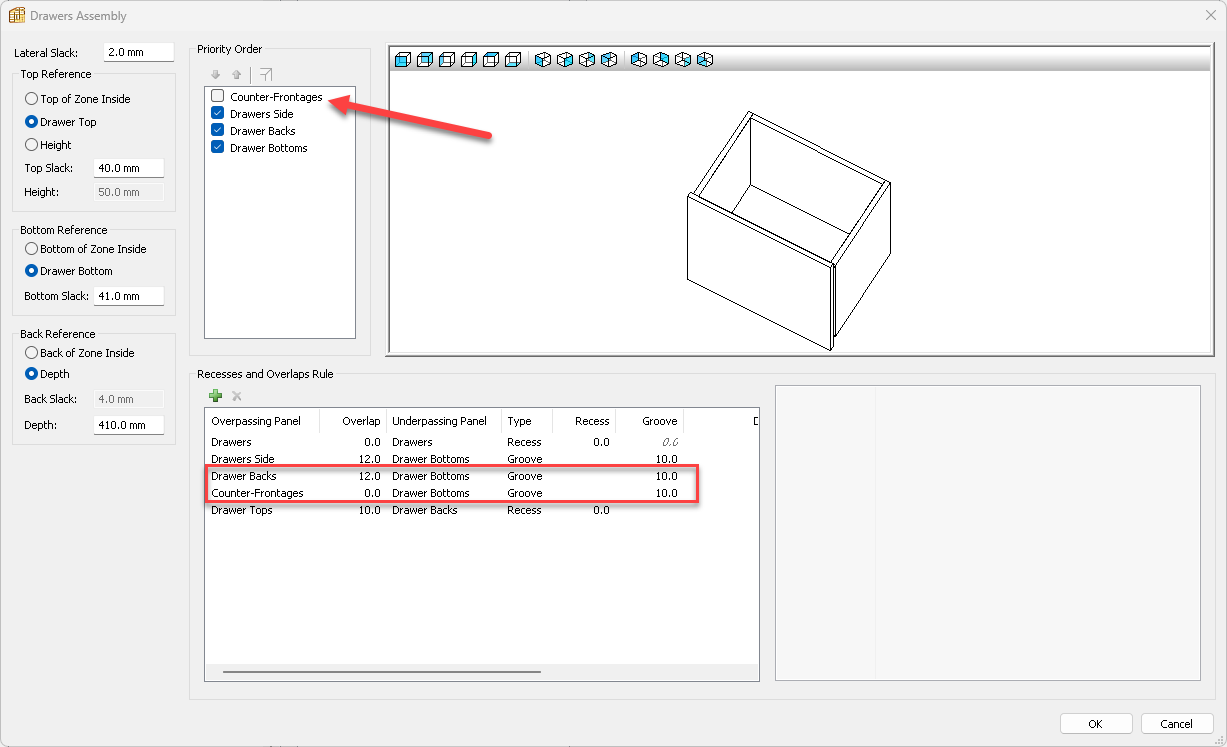

the main issue is that we use 3mm panels for the drawer bottom so i need it to be grooved, it`s fine i have made it with the sides but i couldn`t do it for the frontage, also for the back, I think for the back if we can`t make it grooved can we make the bottom overpassing the back so we can make it fixed with screws?

I am looking forward for your reply,

Thanks in advance
